User’s Manual of IXT-900 PoE series
149
4.4.4.3 Egress Queue

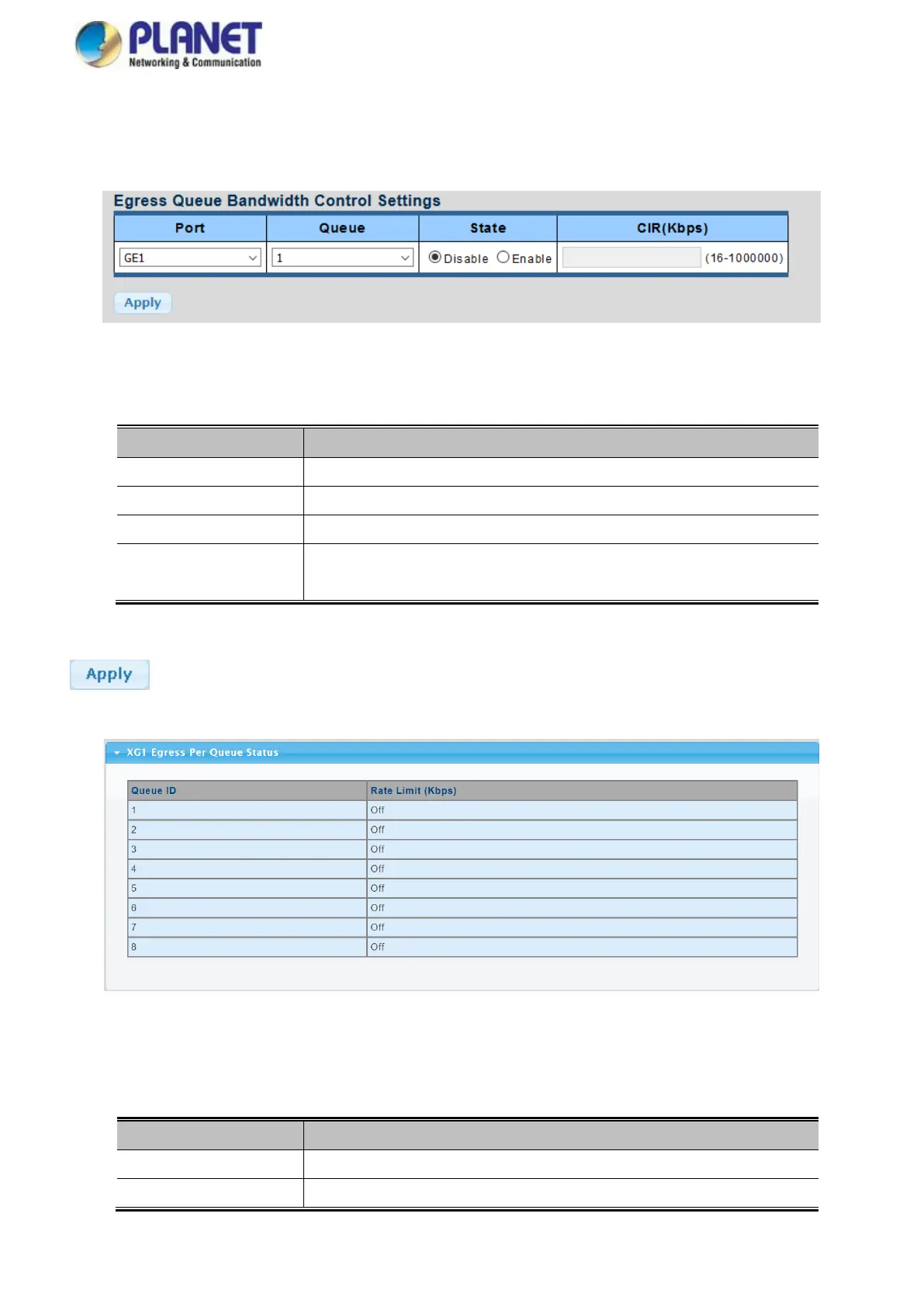

The Egress Queue Bandwidth Control Settings and Status screens in Figure 4-4-21 & Figure 4-4-22 appear.
Figure 4-4-21 Egress Queue Bandwidth Settings Page Screenshot
The page includes the following fields:
Object
Description
 Port
Select port number for this drop down list.
 Queue
Select queue number for this drop down list.
 State
Enable or disable the port rate policer. The default value is "Disabled".
 CIR (Kbps)
Configure the CIR for the port policer. The default value is "unlimited". Valid
values are in the range 16 to 1000000.
Buttons
: Click to apply changes.
Figure 4-4-22 Egress Queue Status Page Screenshot
The page includes the following fields:
Object
Description
 Queue ID
Display the current queue ID.
 Rate Limit (Kbps)
Display the current rate limit.
