4.1 Main Web Page
The Managed Media Converter provides a Web-based browser interface for configuring and managing it. This interface allows
you to access the Managed Media Converter using the Web browser of your choice. This chapter describes how to use the
Managed Media Converter’s Web browser interface to configure and manage it.

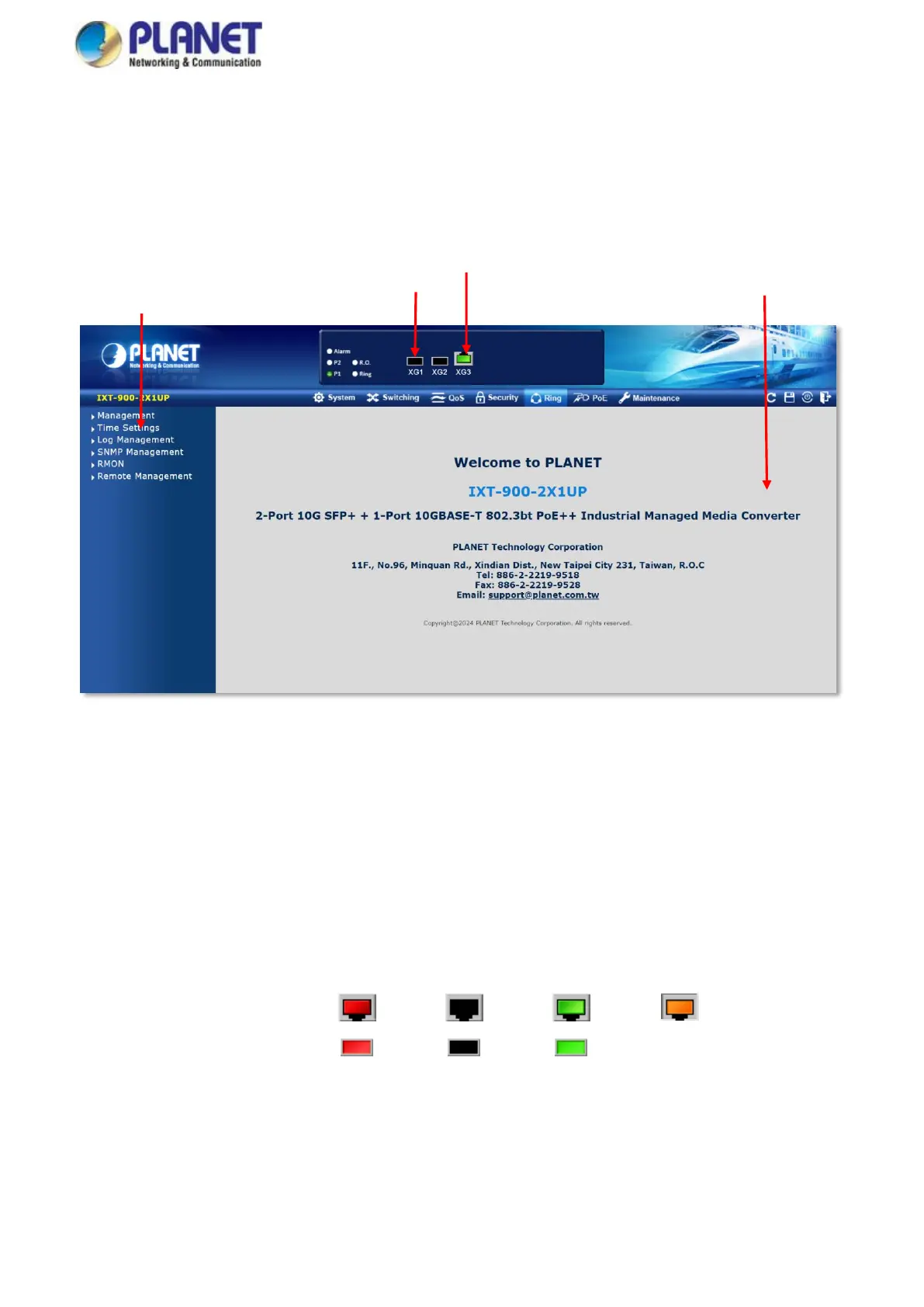

Figure 4-1-4 Main Page
Panel Display
The Web agent displays an image of the Managed Media Converter’s ports. The Mode can be set to display different
information for the ports, including Link up or Link down. Clicking on the image of a port opens the Port Statistics page.
The port states are illustrated as follows:
State
Disabled
Down
Link
PoE
RJ45 Ports
SFP Ports
Main Functions Menu
SFP Port Link Status
Main Screen
Copper Port Link Status
