User’s Manual of IXT-900 PoE series
176
The screen in Figure 4-7-5 appears.

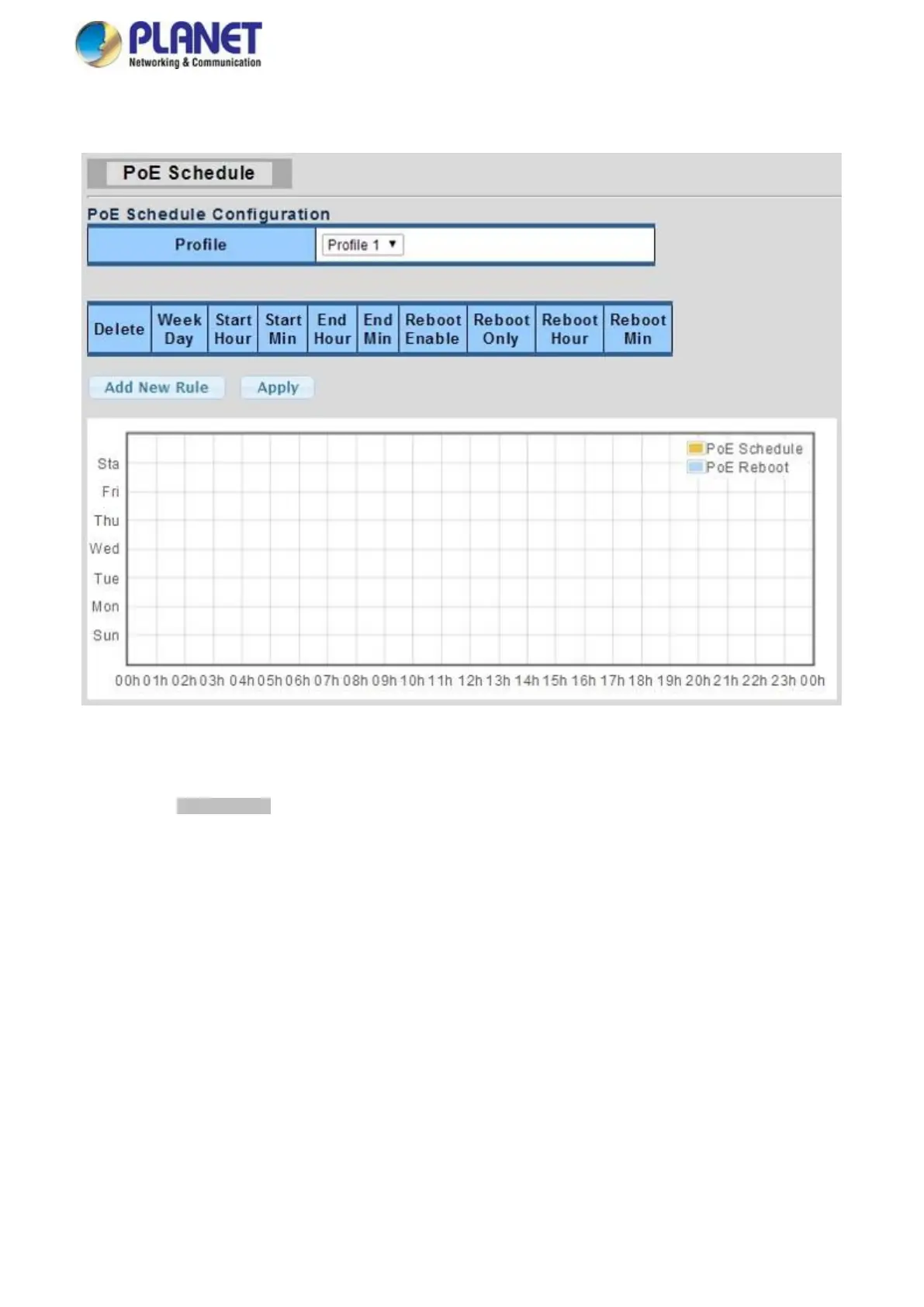

Figure 4-7-5: PoE Schedule Screenshot
Please press the Add New Rule button to start setting PoE Schedule function. You have to set PoE schedule to profile and then
go back to PoE Port Configuration, and select “Schedule” mode from per port “PoE Mode” option to enable you to indicate
which schedule profile could be applied to the PoE port.
