User’s Manual of IXT-900 PoE series
97

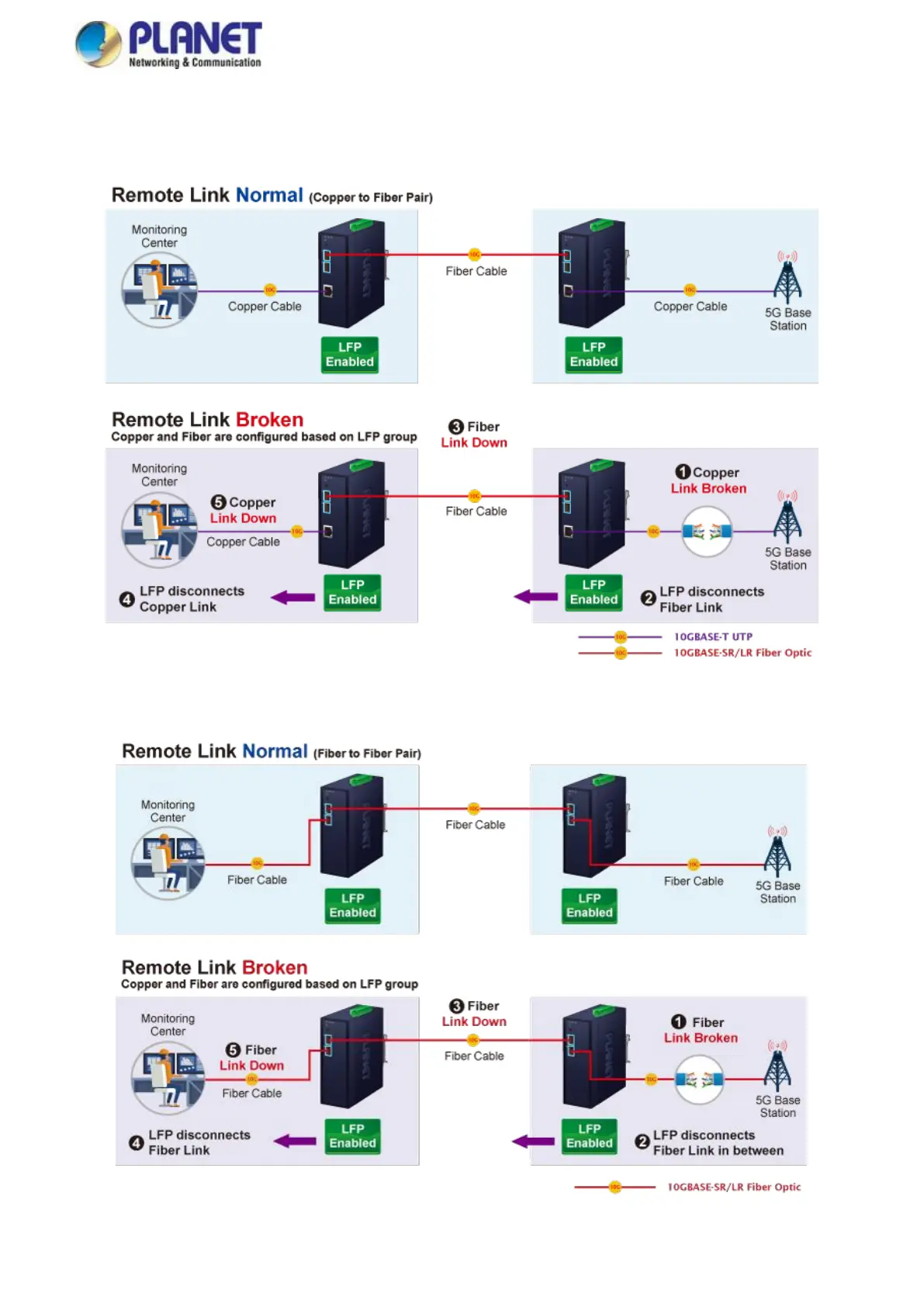

The LFP group can be made up of Copper-to-Fiber or Fiber-to-Fiber connections. These two types of groupings are shown in
Figure 4-3-7 and 4-3-8 respectively.
Figure 4-3-7: Copper-to-Fiber LFP Group
Figure 4-3-8: Fiber-to-Fiber LFP Group
