OTHER INSTALLATION ALTERNATIVES
28 Planmeca Intra X-ray unit Installation manual
Install the ceiling arm to the adapter as follows.

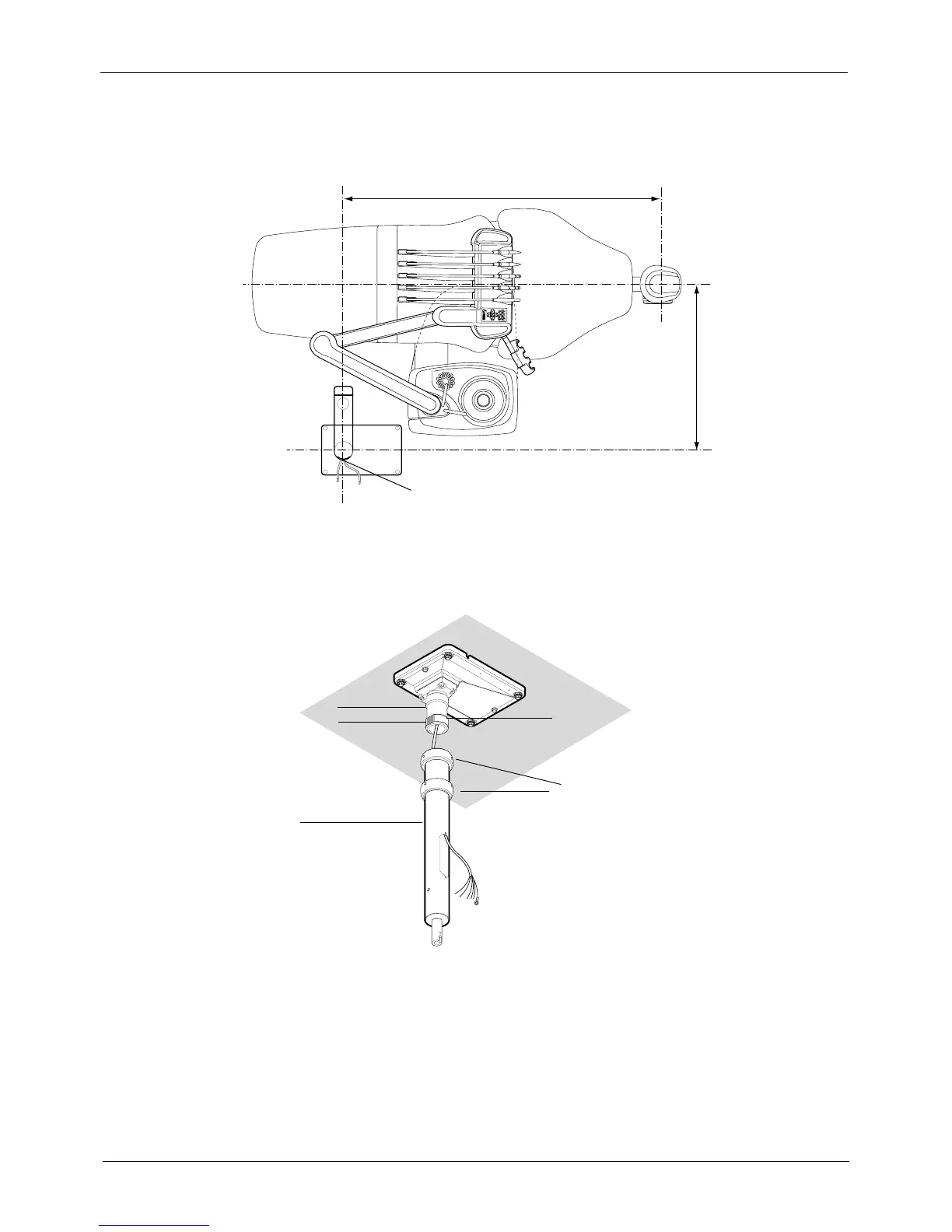

If the operating light is installed to the ceiling arm, position the arm according to the figure below
(opening away from the chair).
NOTE The ceiling arm is locked to the arm adapter by making a dent with a
mounting ring screw to the arm above the adapter collar. The dent must
not be in line with the machining on the adapter collar.
S
C
D
A
B
8888
Opening
500 mm
1000 mm
ceil1.eps
Arm adapter
Machining
Ceiling arm
Mounting rings
Adapter collar

Planmeca intra Specifications

General

Manufacturer	Planmeca
Model	Planmeca Intra
Frequency	50/60 Hz
Tube Voltage	60-70 kV
Tube Current	7 mA
Type	Dental X-ray Unit
Voltage	100-240 V
Weight	Varies depending on configuration; refer to specific model documentation
