ATTACHING THE GENERATOR BOX WITHOUT THE ADAPTER PLATE
46 Planmeca Intra X-ray unit
Installation manual

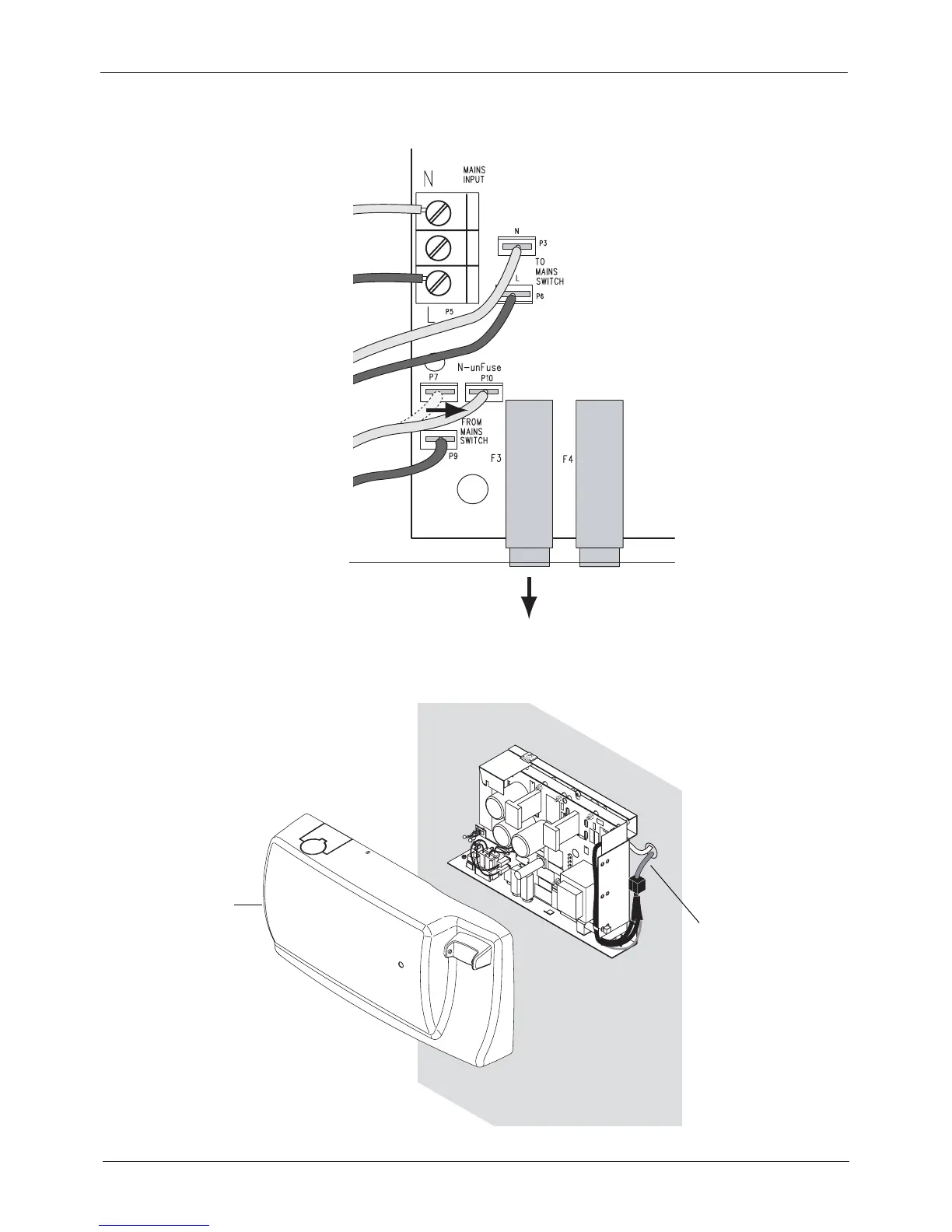

When the concealed wiring is used the cable coming from the ON/OFF switch to the connector P7
must be moved to the connecto P10. Also the fuse F3 must be removed.
Attach the extension cable to the generator box assembly as shown on the figure below. Place the
generator housing over the generator assembly.
Remove Fuse F3
Neutral
Line
Blue
Brown
Blue
Brown
Ins11
A
Extension cable
Generator housing
