4.7.4 RMS Power Supply

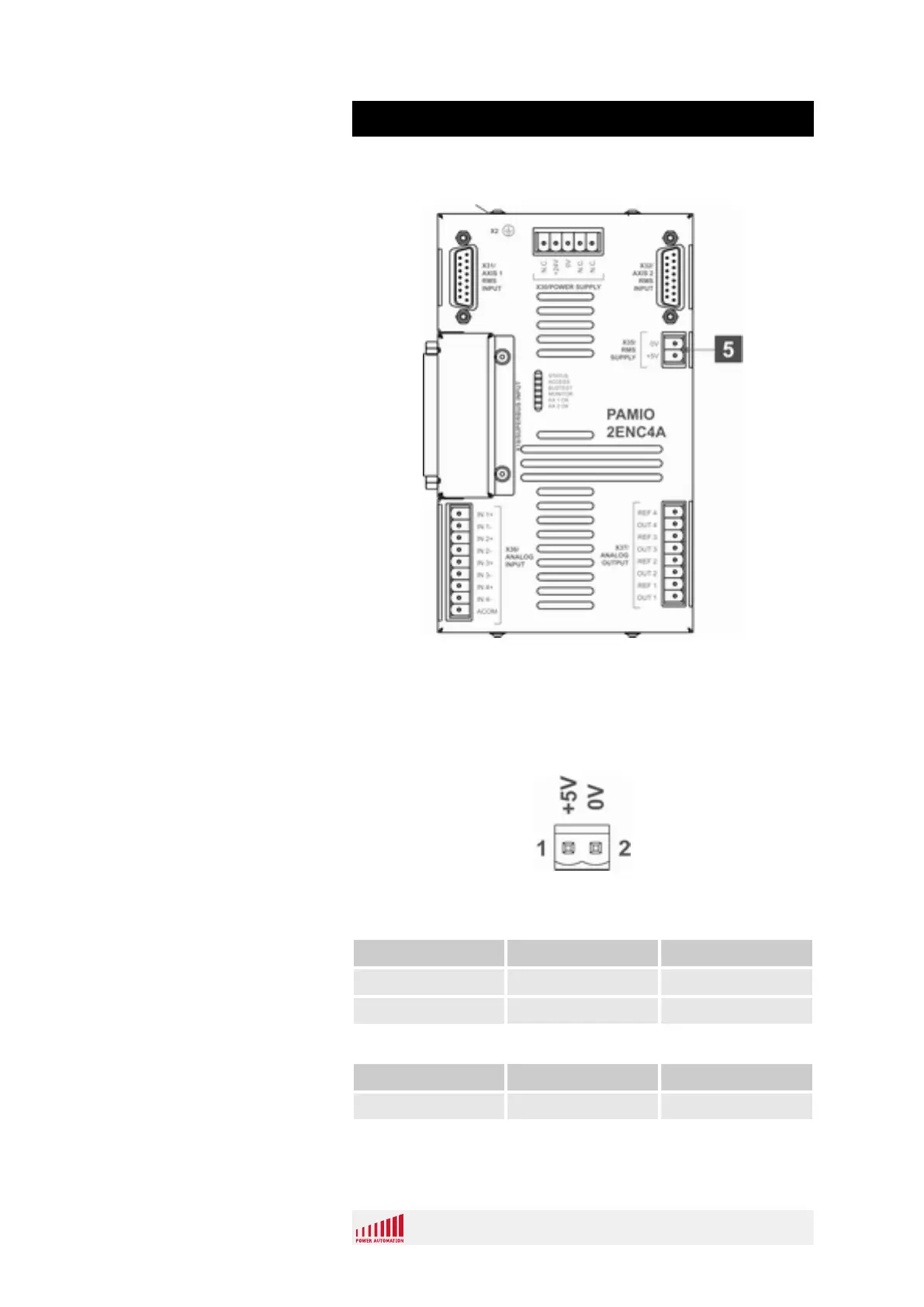

Fig. 84: PAMIO 2ENC4A RMS power supply
5 Power supply input for RMS encoders (X35)
The power supply for encoders is connected with a 2 pole terminal
block (Fig. 85).
Fig. 85: RMS power terminal block
Pin Voltage Assignment
1 +5 V RMS supply
2 0 V RMS ground
Property Value Unit
Tolerance 0 - +20 %
Overview
Connection
Pin Assignment
Technical data
