4.2.2 DIN rail installation
The PAMIO components are designed for DIN rail installation.

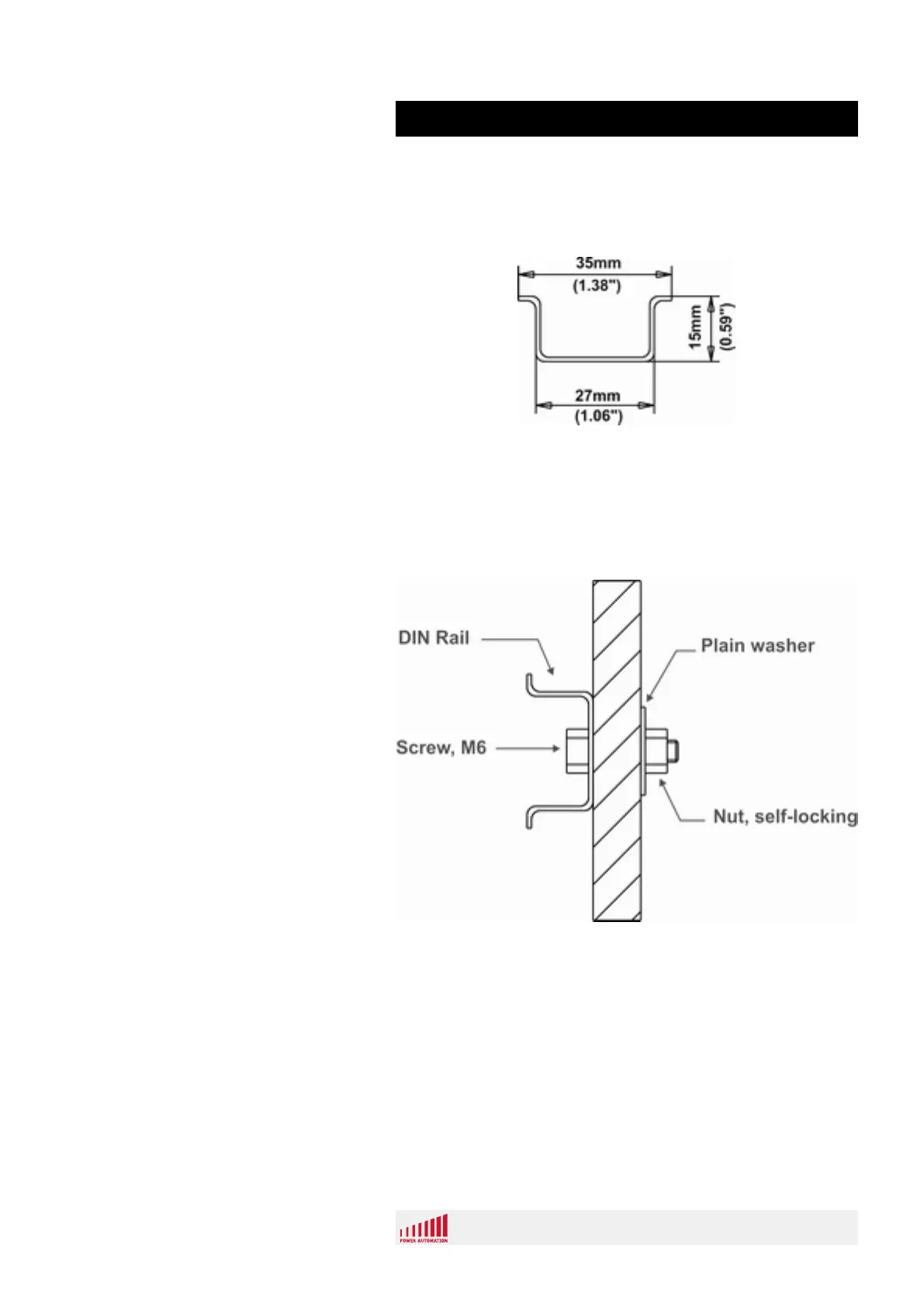

For the DIN rail specification see Fig. 8.
Fig. 8: Din rail for PAMIO mounting
Because of the weight of the boxes, due to their rugged construc-
tion with metal cases, it is necessary to ensure a correct and a safe
fixation of the DIN rail to avoid any torsion.
For the suggested installation of the rail see Fig. 9.
Fig. 9: DIN rail fixation
