power automation PA 8000 - Design and Functions

Property Value Unit
Input voltage 24 V DC
Tolerance -15 / +12.5 %
Frequency 20.4 - 27.0 V DC
Max. current 0.5 A
4.5.2 Design and Functions

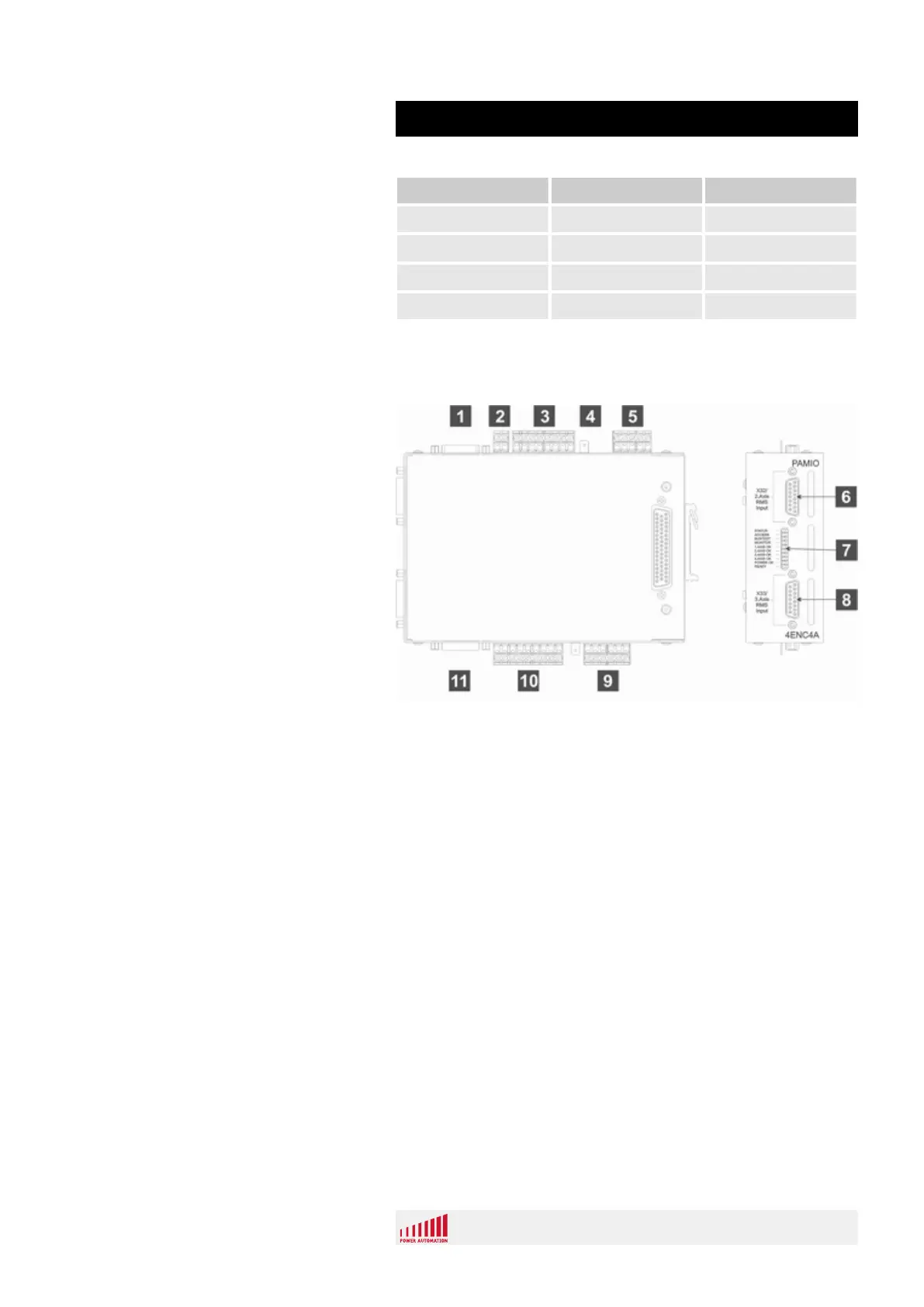

Fig. 39: PAMIO 4ENC4A overview
1 RMS input 1. axis (X31)
2 Power supply input for RMS encoders (X35)
3 Analog out axes 1 to 4 (X37)
4 Protective grounding tab (X2)
5 Power connector +24 V (X30)
6 RMS input 2. axis (X32)
7 Module status LEDs
8 RMS input 3. axis (X33)
9 Safety function connector (X38)
10 Analog inputs 1 to 4 (X36)
11 RMS input 4. axis (X34)
Connection Values
Overview
PA 8000 PAMIO
