4.6.2.4 Wiring Example

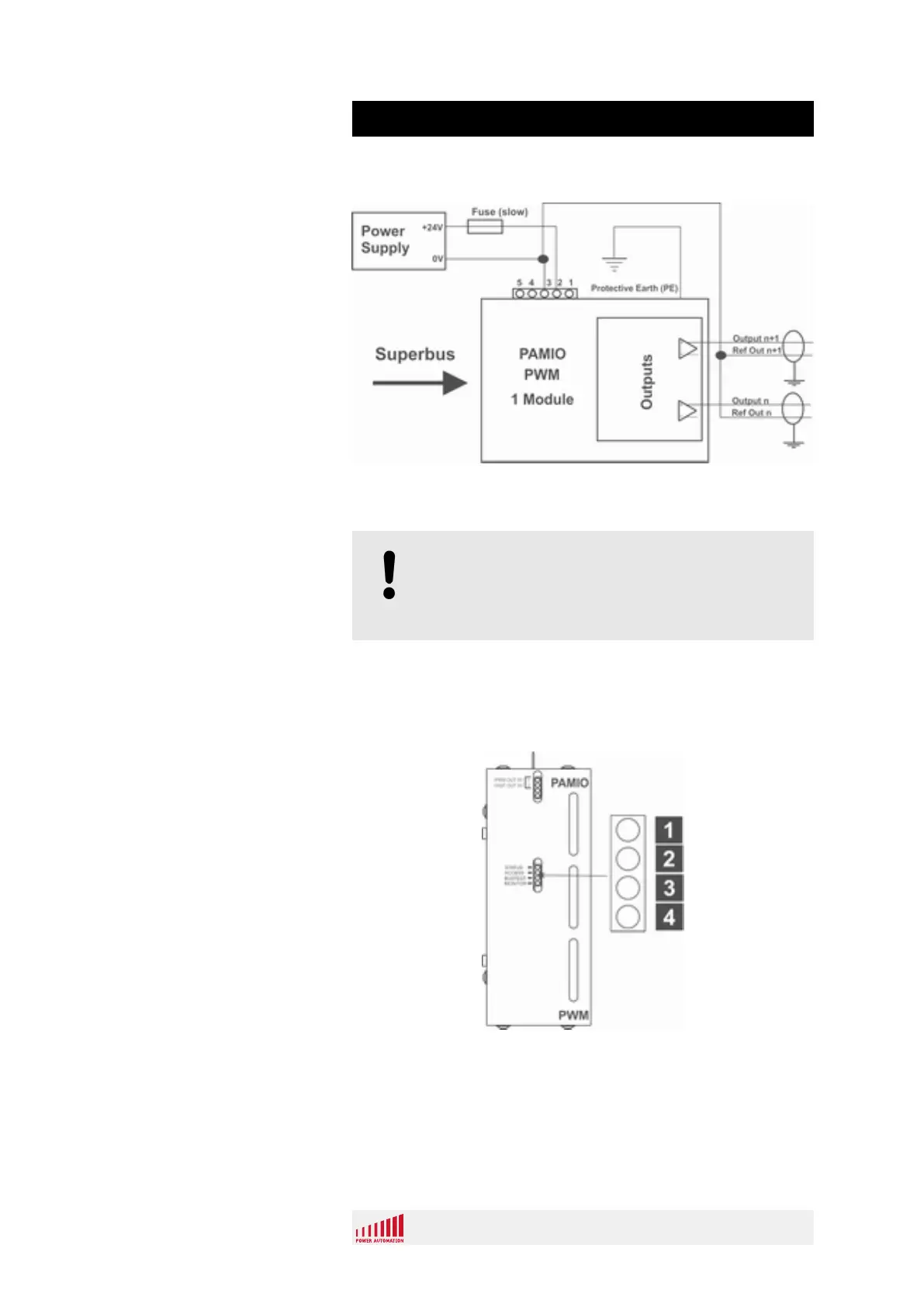

Fig. 76: PAMIO PWM Wiring example
n Number of inputs
NOTICE!
The outputs of PAMIO PWM must be connected to
a shielded twisted pair cable. The shield is applied
to the housing of the connected device.
4.6.2.5 Status LEDs
The PAMIO PWM has four LEDs for diagnostic purposes.
Fig. 77: PAMIO PWM module status LEDs
1 Status
2 Access
3 Bustest
4 Monitor
Wiring Example
Overview
PA 8000 PAMIO
PAMIO Components
