4.4.2.4 Status LEDs
The PAMIO 2416 has four LEDs for diagnostic purposes.

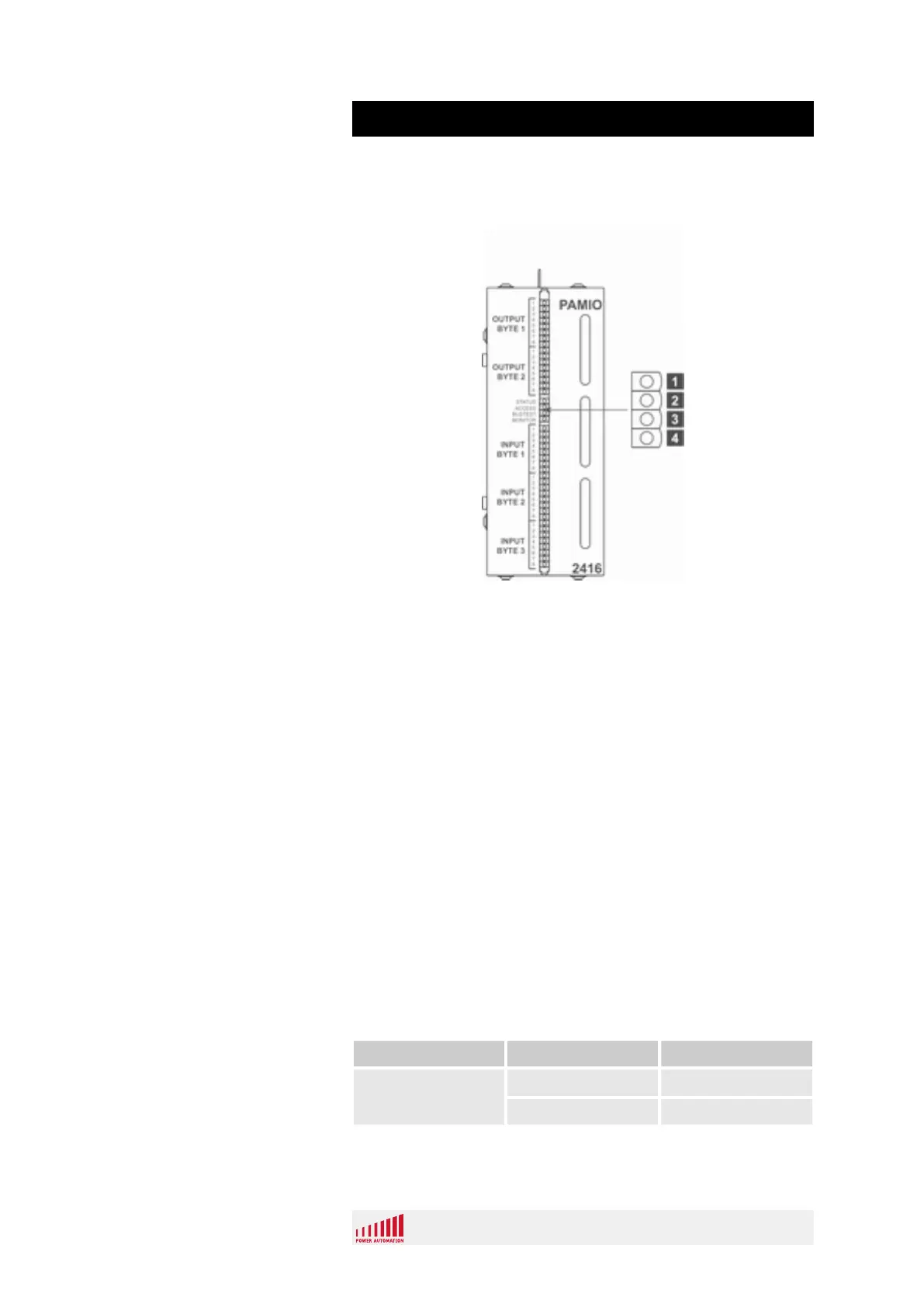

Fig. 38: PAMIO 2416 module status LEDs
1 Status
2 Access
3 Bustest
4 Monitor
For a detailed assignment of the LEDs' states see
Ä
Chapter 5.2.1
“PAMIO 2416 LEDs” on page 119.
4.5 PAMIO 4ENC4A
The PAMIO module 4ENC4A has connections for:
n 4 analog axes (4 analog command outputs +/-10V DC / 16 bit)
n 4 incremental measurement systems
n 4 additional analog inputs (+/-10V DC / 12 bit)
The status of the monitor is displayed via LEDs.
4.5.1 Technical Data
Property Value Unit
Weight 0.35 kg
0.77 lb
Overview
Connections Of The PAMIO
4ENC4A
General
PA 8000 PAMIO
PAMIO Components
12.01.2017 | 64
