4.2.7 Superbus cables
The first PAMIO box of the configuration in use must be connected
to the control unit by a Superbus cable (Fig. 19).

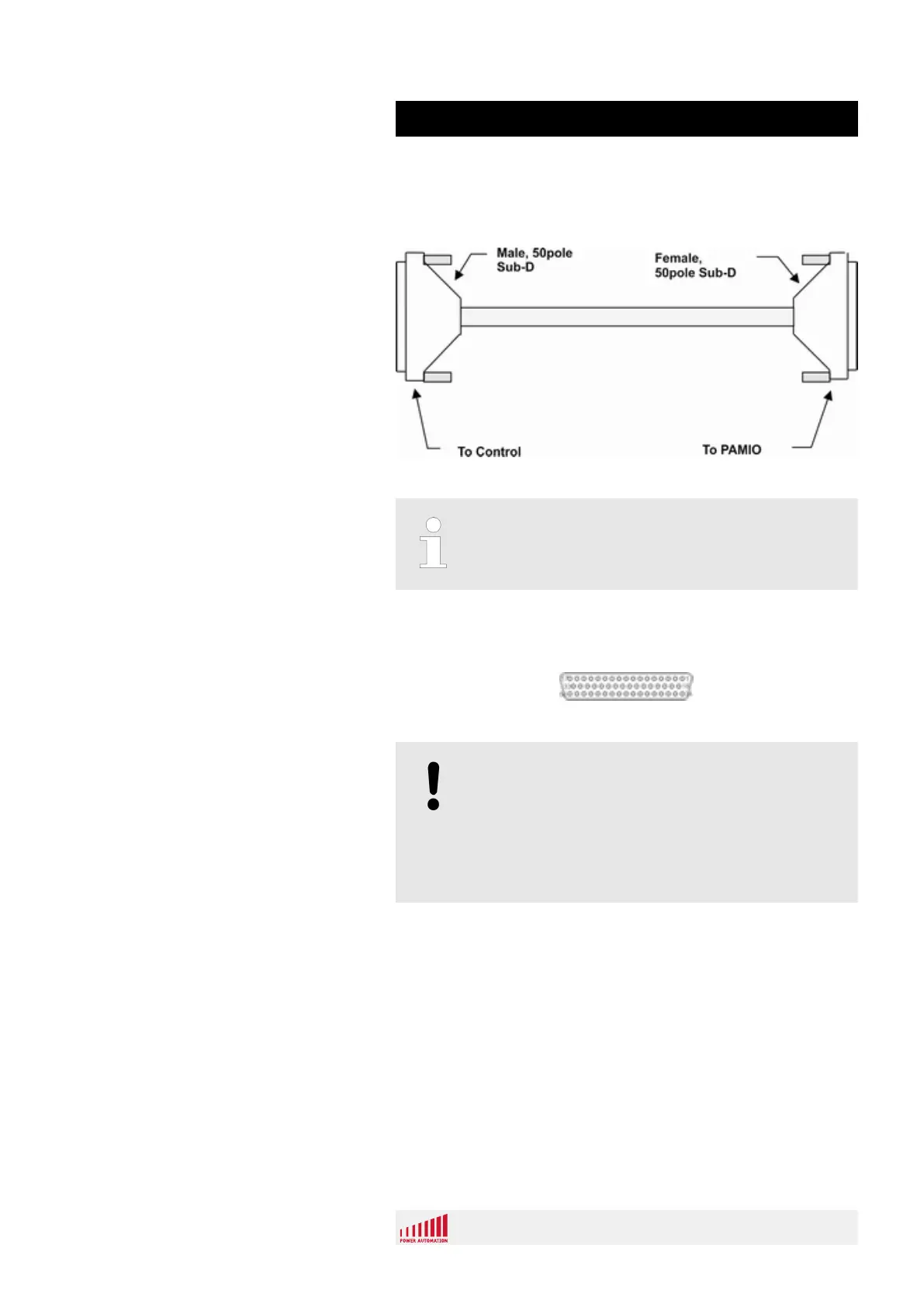

Fig. 19: Superbus cable
The Superbus cable is not included in the control
unit's basic scope of delivery. It has to be ordered
separately.
The corresponding 50-pins connector on the control unit side is
numbered X13 (Fig. 20).
Fig. 20: Superbus PAMIO Connector
NOTICE!
It is highly recommended to use a cable that has
been tested and certified by Power Automation, as
well as between the control unit and the system
rack, as (if required) between several racks. -If
non-adapted cables are used, there is a high risk
of data transmission errors!
Connection
Superbus PAMIO Connector
PA 8000 PAMIO
PAMIO Components
12.01.2017 | 41
