4.5.3 Axis Measurement Inputs (RMS)

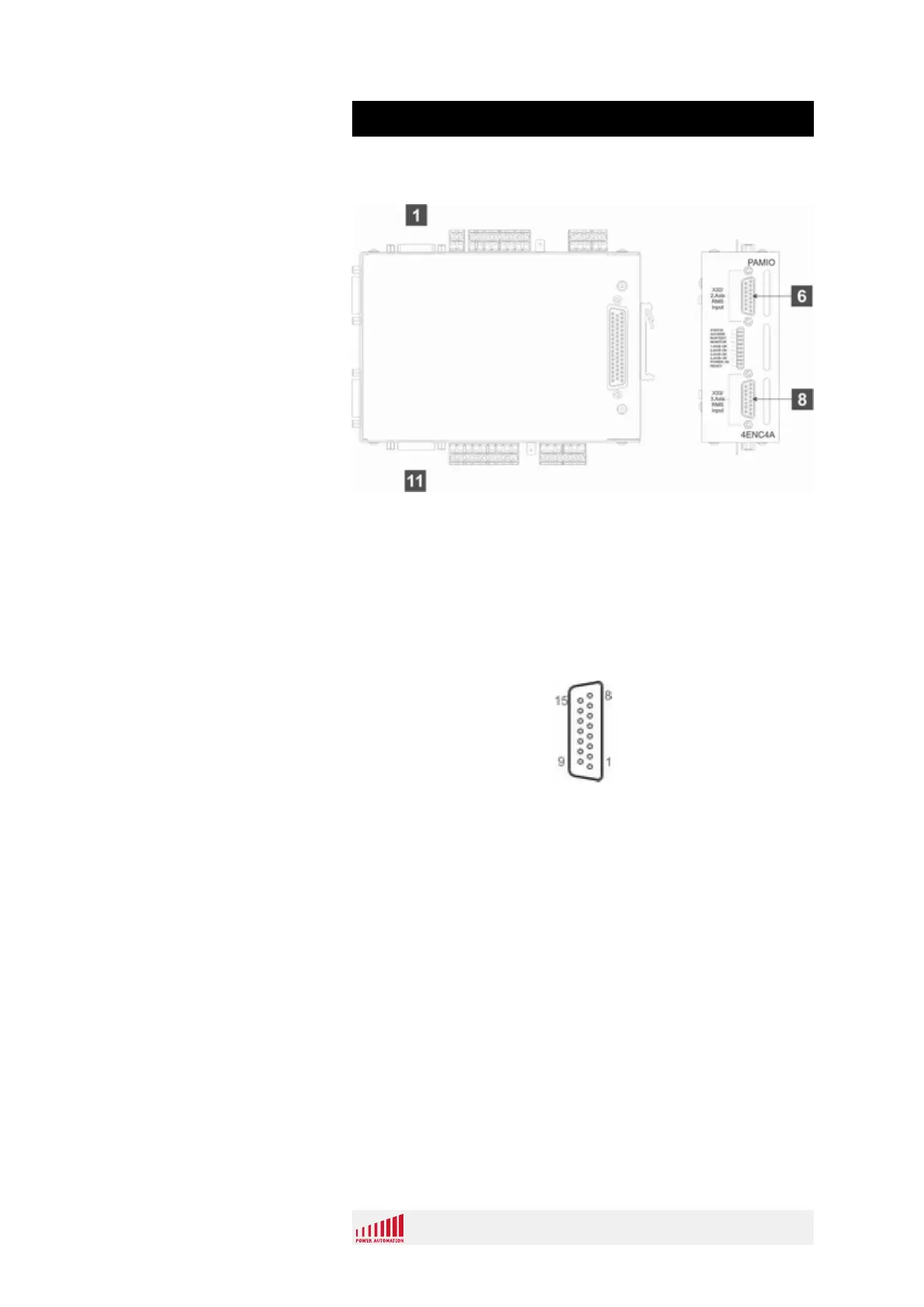

Fig. 40: PAMIO 4ENC4A RMS inputs
1 RMS input 1st axis (X31)
6 RMS input 2nd axis (X32)
8 RMS input 3rd axis (X33)
11 RMS input 4th axis (X34)
Each axis measurement input has a 15 pin Sub-D connector
female (Fig. 41).
