4.2.6 Termination plug
Termination plugs are available as options from
Power Automation (see Ä Chapter 6.1.1 “Service
addresses” on page 130).
Ordering code: PAMIO TERM

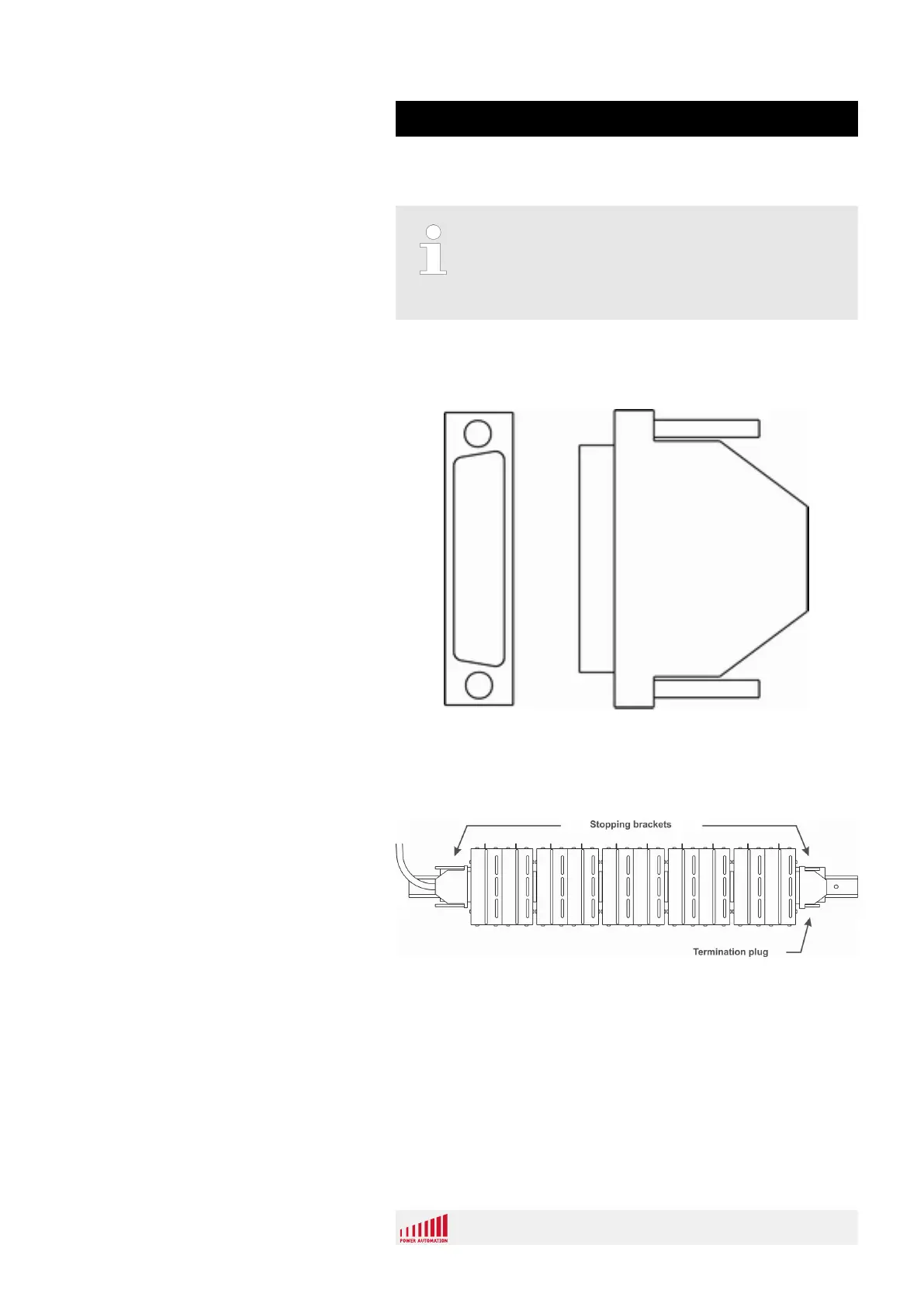

The PAMIO termination plug (Fig. 16) is used to terminate the
Superbus. As with other fast bus systems, the PA Superbus
requires a termination to avoid line reflections that could disturb the
data transmission.
Fig. 16: PAMIO termination plug
The last PAMIO box of an application must carry a bus termination
plug on its output Superbus connector (50 pin Sub-D) (Fig. 17).
Fig. 17: Position of PAMIO termination plug
Termination
PA 8000 PAMIO
PAMIO Components
12.01.2017 | 39
