4.5.9 Status LEDs
The PAMIO 4ENC4A has ten LEDs for diagnostic purposes.

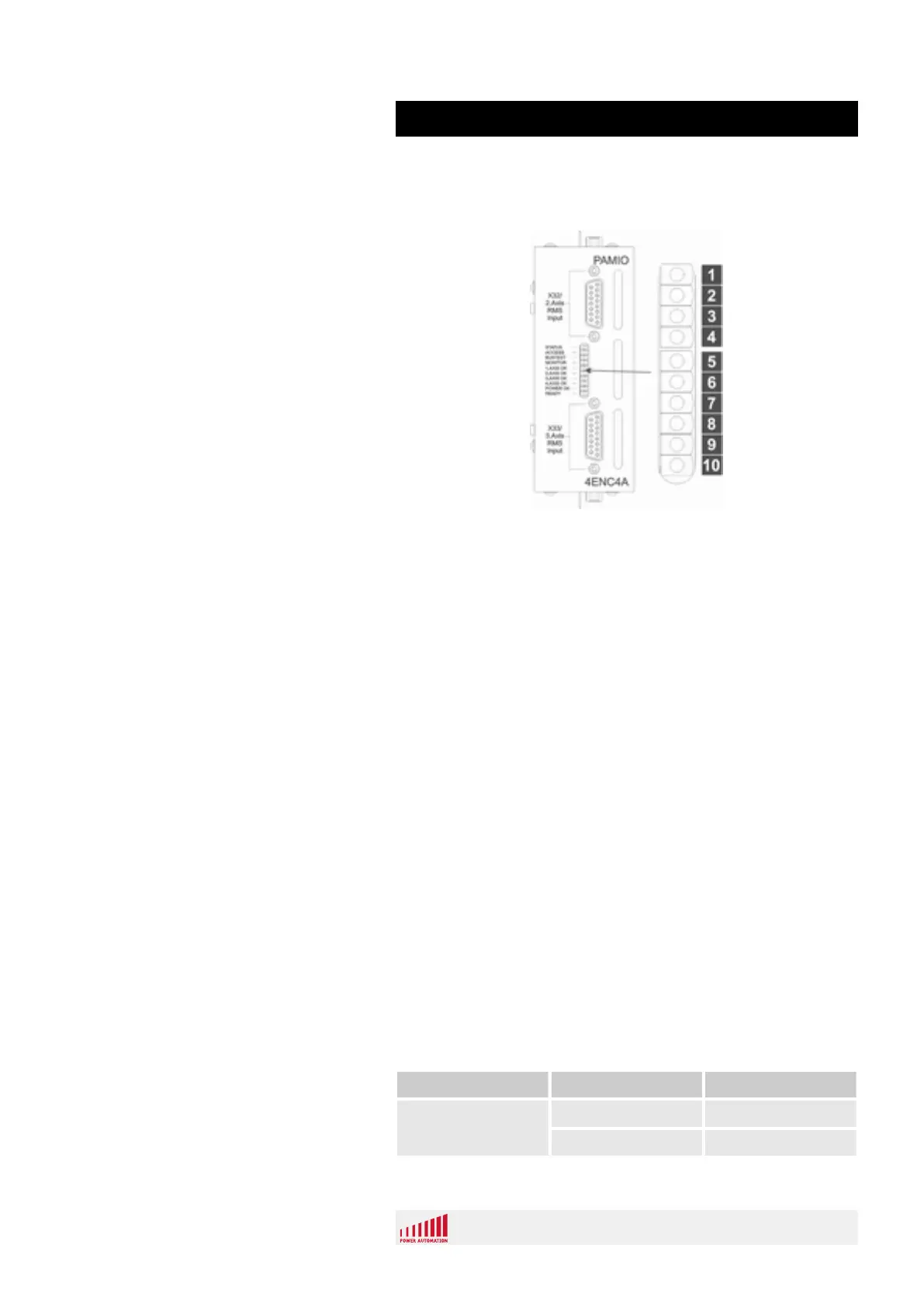

Fig. 60: PAMIO 4ENC4A module status LEDs
1 Status
2 Access
3 Bustest
4 Monitor
5 Axis 1
6 Axis 2
7 Axis 3
8 Axis 4
9 Power OK
10 CNC Ready
For a detailed assignment of the LEDs' states see Ä Chapter 5.2.2
“PAMIO 4ENC4A LEDs” on page 121.
4.6 PAMIO PWM
The PAMIO module PWM has connections for:
n 1 opt. isolated output for PWM signal
n 1 opt. isolated fast output
n opt. isolated output with inverted PWM signal
The status of the monitor is displayed via LEDs.
4.6.1 Technical Data
Property Value Unit
Weight 0.35 kg
0.77 lb
Overview
Connections Of The PAMIO PWM
General
PA 8000 PAMIO
PAMIO Components
12.01.2017 | 85
