4.2.5 Ventilation
To ensure proper heat dissipation, PAMIO system racks must
always be mounted horizontally.
There must be a minimum vertical distance of 100 mm (3.94
inches) between a PAMIO system rack and other devices in the
electrical cabinet (Fig. 15).
It is recommended not to place devices with high power dissipation
(like transformers or drive units) close below the PAMIO system
rack.
When the number of PAMIO boxes is so large that it requires an
assembly of two (or more) system racks, the same rules applies:
there must be a distance of at least 100 mm (3.94 inches) between
the two racks.

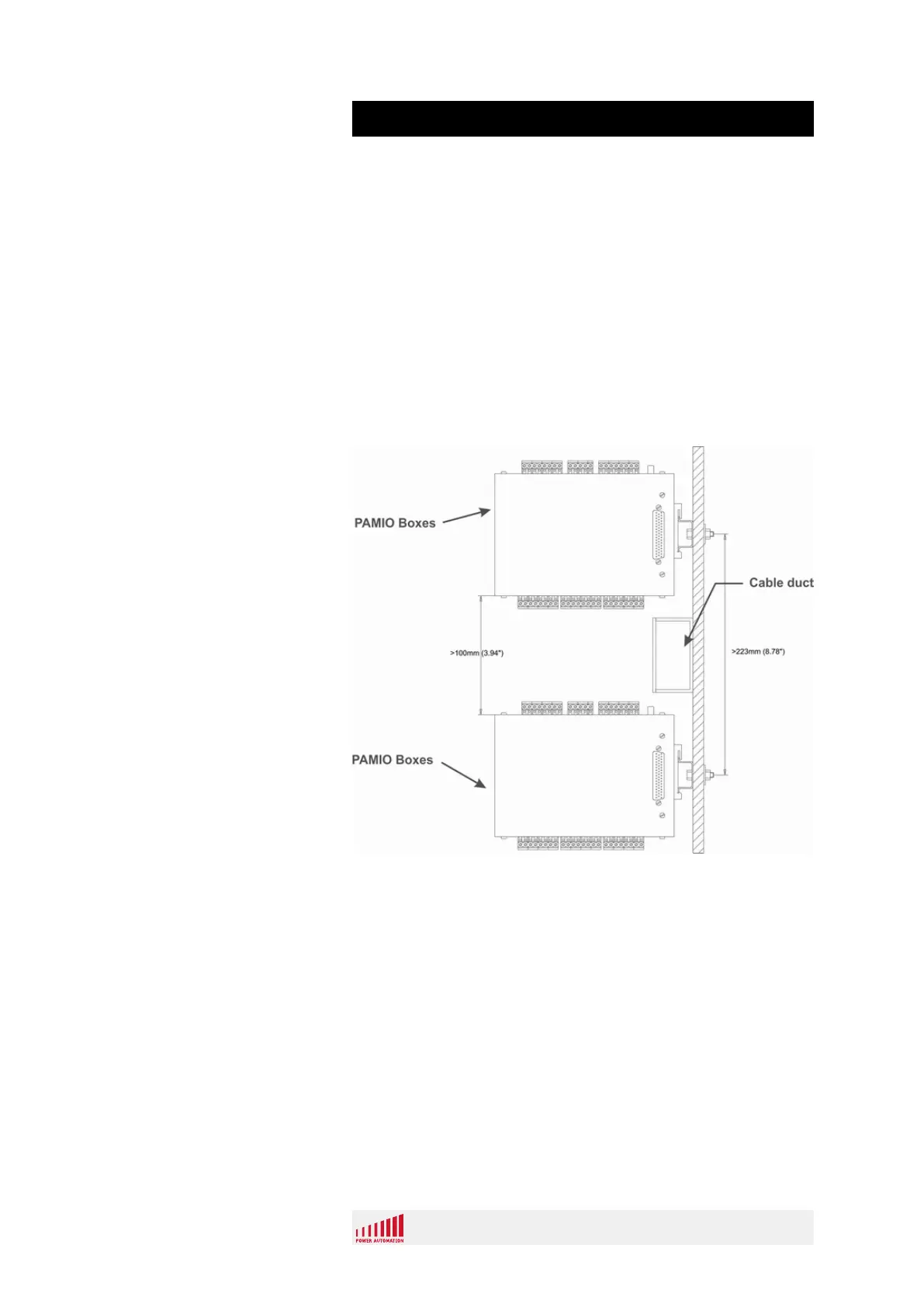

Fig. 15: PAMIO rack mounting for correct ventilation
Minimum Vertical Distance
PA 8000 PAMIO
PAMIO Components
12.01.2017 | 38
