4.7.7 Power Supply

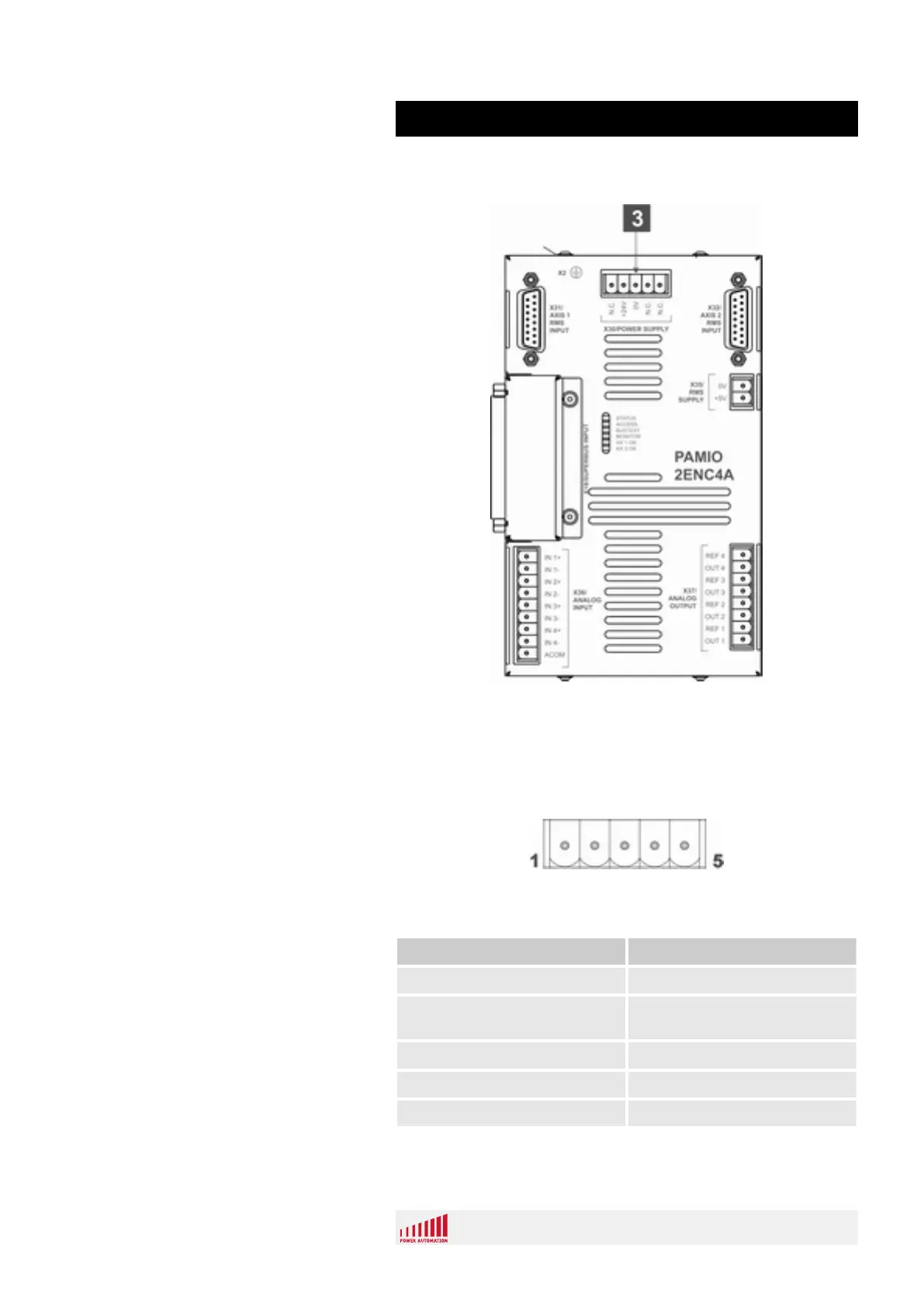

Fig. 94: PAMIO 2ENC4A power connection

3 Power connector +24 V (X30)

Each module has a 5 pin connector (X30) with the following pin

assignment (Fig. 95).

Fig. 95: Power terminal block

Pin Assignment

Pin 1 Not used

Pin 2 + 24 V power supply for on-

board logic

Pin 3 0 V

Pin 4 Not used

Pin 5 Not used

Overview

Connection

Pin Assignment

PA 8000 PAMIO

PAMIO Components

12.01.2017 | 113
