4.6.2.1 Digital Outputs

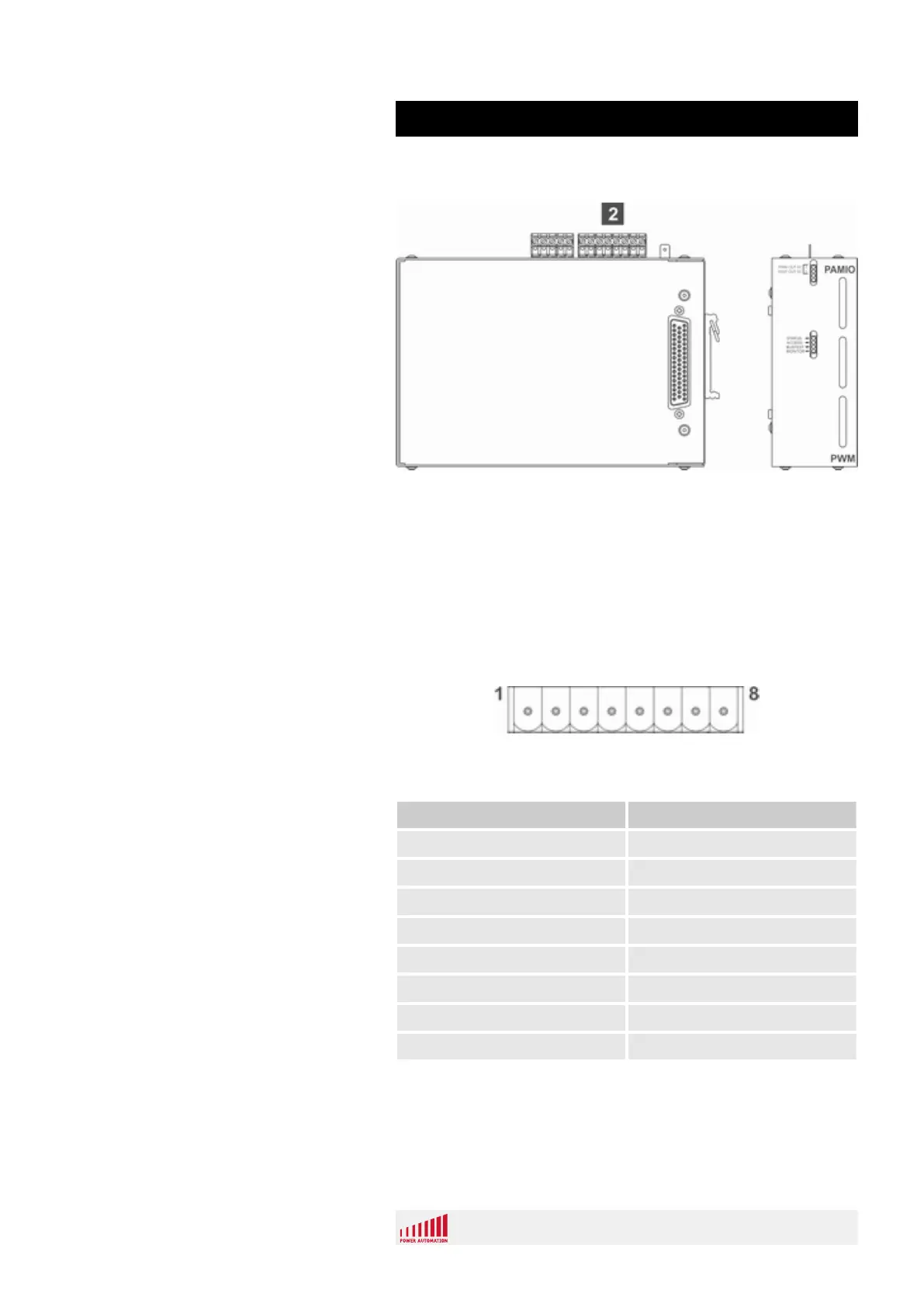

Fig. 62: PAMIO PWM outputs
2 PWM and Fast Output (X25)
n Each byte is connected with an 8 pole terminal block.
n The PWM and Fast Output have their own power supply con-
nection (X30, Pin1). This makes it possible to turn off the
output function by using an external switch.
n The outputs are always referenced against 0 V, located in the
power connector (X30, pin 3).
Fig. 63: Output terminal block
Byte 1 +24 V output
pin 1 PWM out 5V
pin 2 Fast Out 5V
pin 3 Not used
pin 4 PWM OUT 5V Inverted
pin 5 Not used
pin 6 Not used
pin 7 Not used
pin 8 Not used
Connection
Pin Assignment
PA 8000 PAMIO
PAMIO Components
12.01.2017 | 87
