The output LEDs are located on the front side of the PAMIO PWM
and show the current state of the PWM and Fast Output.
n if an output is HIGH, the corresponding LED is ON
n if an output is LOW, the corresponding LED is OFF

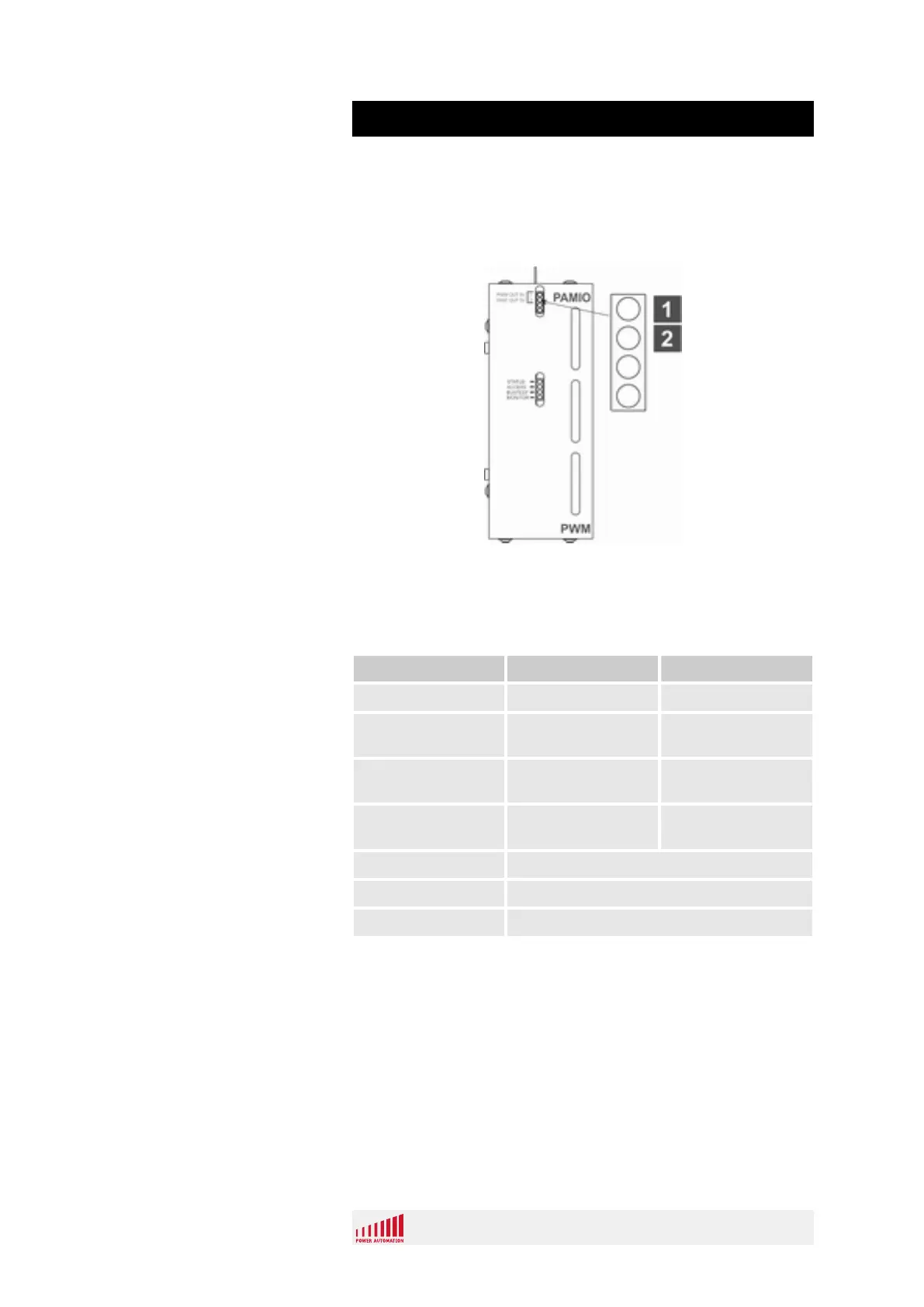

Fig. 64: PAMIO PWM Output LEDs
1 PWM Out 5V
2 FAST Out 5V
Property Value Unit
Number of outputs 2
Max. continuous
output per bit
0.5 mA DC
Output ON delay
(typical)
100 ns
Output OFF delay
(typical)
100 ns
Isolation By opto-coupler
Input ON display LED
External connection 1 block per byte
Output Status LEDs
Output Characteristics
PA 8000 PAMIO
PAMIO Components
12.01.2017 | 88
