5.2.4 PAMIO 2ENC4A LEDs

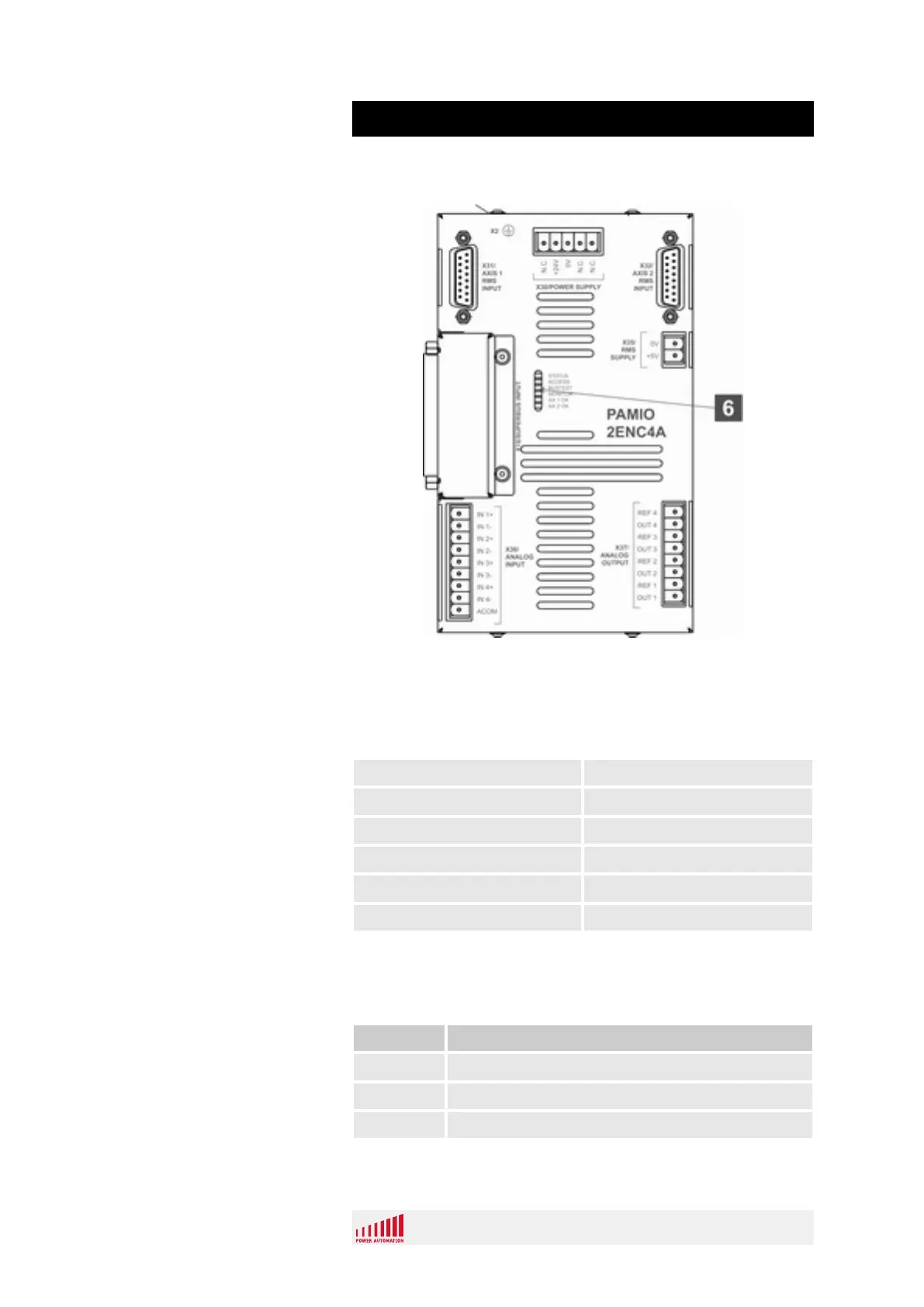

Fig. 100: PAMIO 2ENC4A module status LEDs
6 Module status LEDs
The PAMIO 2ENC4A has six LEDs for diagnostic purposes.
1 Status
2 Access
3 Bustest
4 Monitor
5 Axis 1
6 Axis 2
The LEDs' states are assigned the following status messages:
LED state Module status
Off No power supply (24 V)
OR Hardware error
Slow flash The module is not configured
Overview
LED "Status" (1)
PA 8000 PAMIO
Troubleshoong
