The distance between the measuring systems and

the power supply can be relatively long. The impe-

dance of the power supply cable and the RMS' cur-

rent consumption generate a voltage drop (see

“Precondition” on page 70).

4.7.5 Axes Analog Outputs

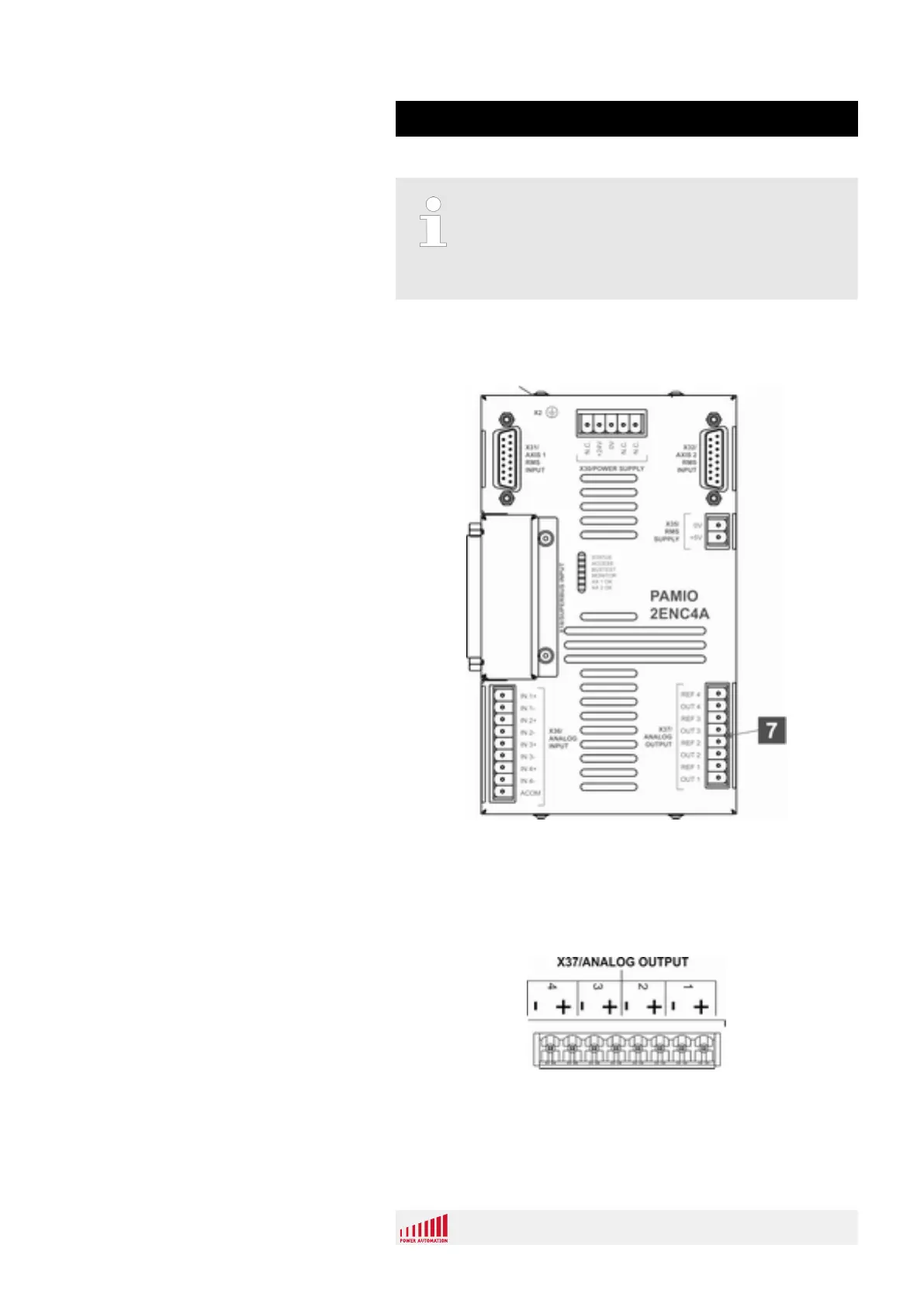

Fig. 86: PAMIO 2ENC4A axes analog outputs

7 Analog outputs 1 to 4 (X37)

The analog outputs are connected with an 8 pole terminal block

(Fig. 87).

Fig. 87: Axes output terminal block

Voltage Drop

Overview

Connection

PA 8000 PAMIO

PAMIO Components

12.01.2017 | 107
