4.5.8 Safety Function

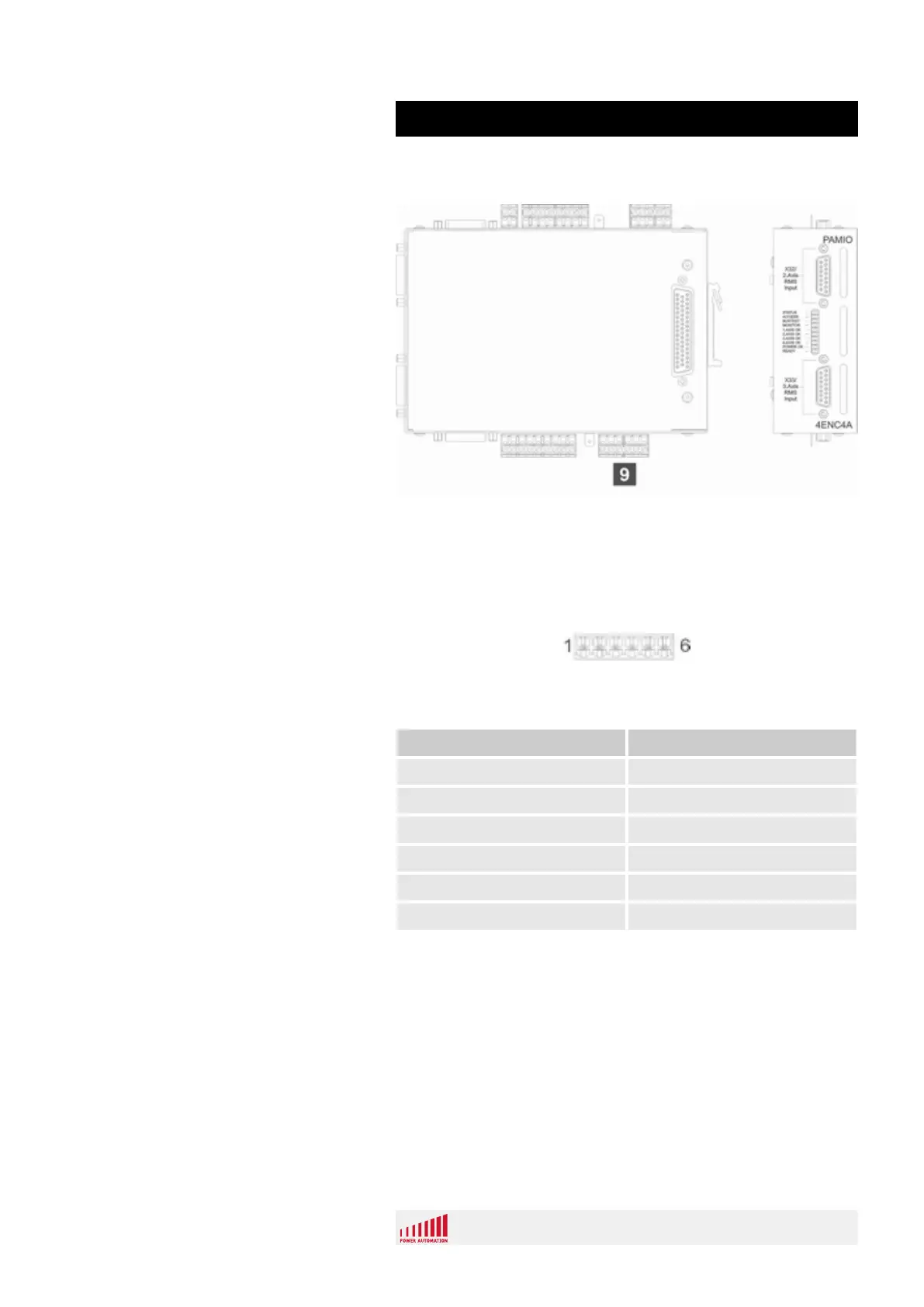

Fig. 57: PAMIO 4ENC4A safety function

9 Safety function connector (X38)

Each module has a 6 pin connector (X38) with the following pin

assignment (Fig. 58).

Fig. 58: Safety function terminal block

Pin Assignment

Pin 1 Power OK, common

Pin 2 Power OK, normally closed

Pin 3 Power OK, normally open

Pin 4 CNC ready, common

Pin 5 CNC ready, normally closed

Pin 6 CNC ready, normally open

Overview

Connection

Pin Assignment

PA 8000 PAMIO

PAMIO Components

12.01.2017 | 81
