Each module has a 5 pin connector (X30) with the following pin
assignment (Fig. 56).

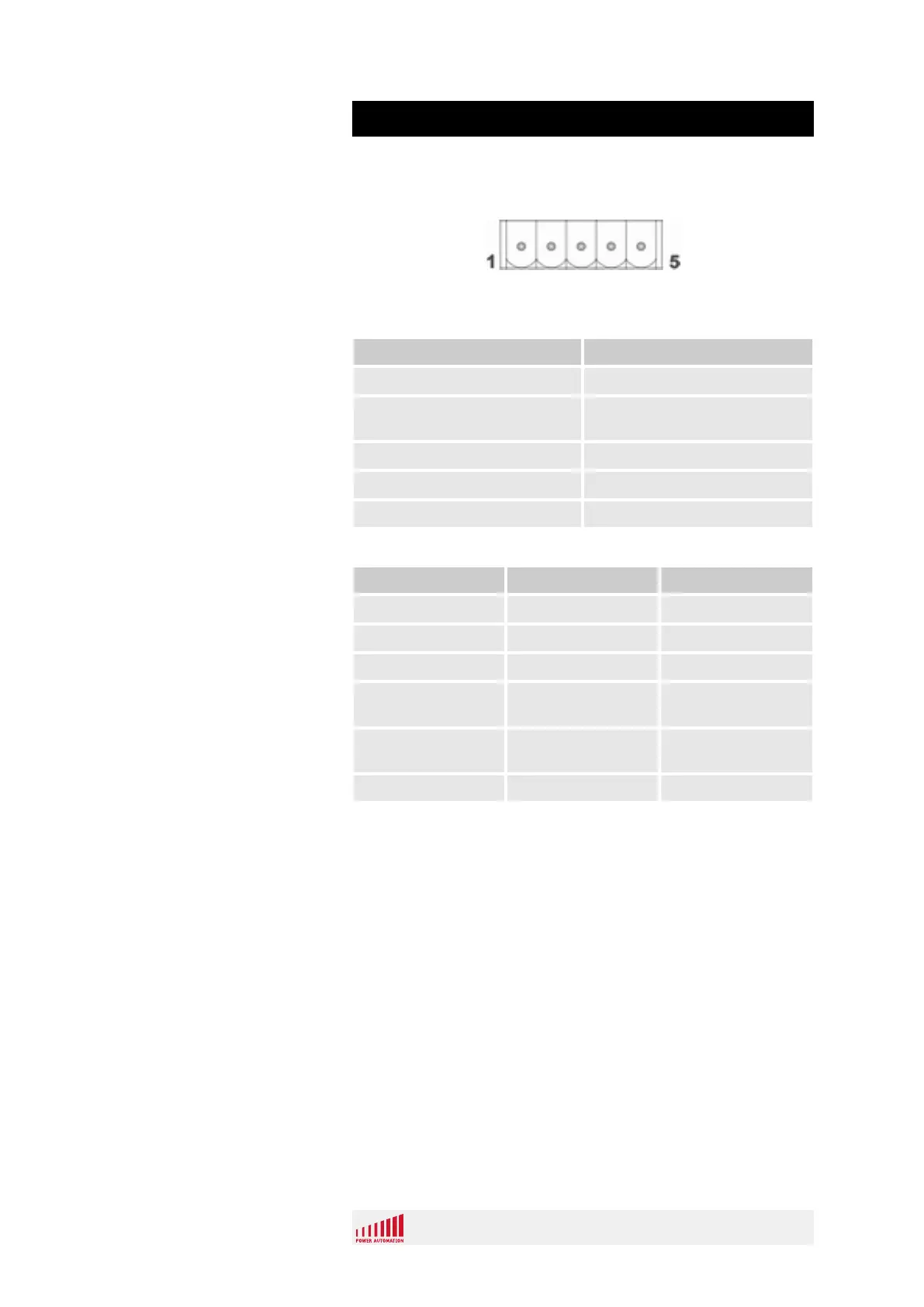

Fig. 56: Power terminal block
Pin Assignment
Pin 1 Not used
Pin 2 + 24 V power supply for on-
board logic
Pin 3 0 V
Pin 4 Not used
Pin 5 Not used
Property Value Unit
Operating voltage + 24 V DC
Tolerances -15 / +12.5 %
Effective range 20.4 - 27.0 V DC
Max. current for the
on-board logic
0.5 A
Max. current for the
output bytes
4 A / byte
Reference Pin 3 (0 V)
Connection
Pin Assignment
Technical Data
PA 8000 PAMIO
PAMIO Components
12.01.2017 | 80
