The stopping brackets are fixed on the DIN rail with a screw M4x20

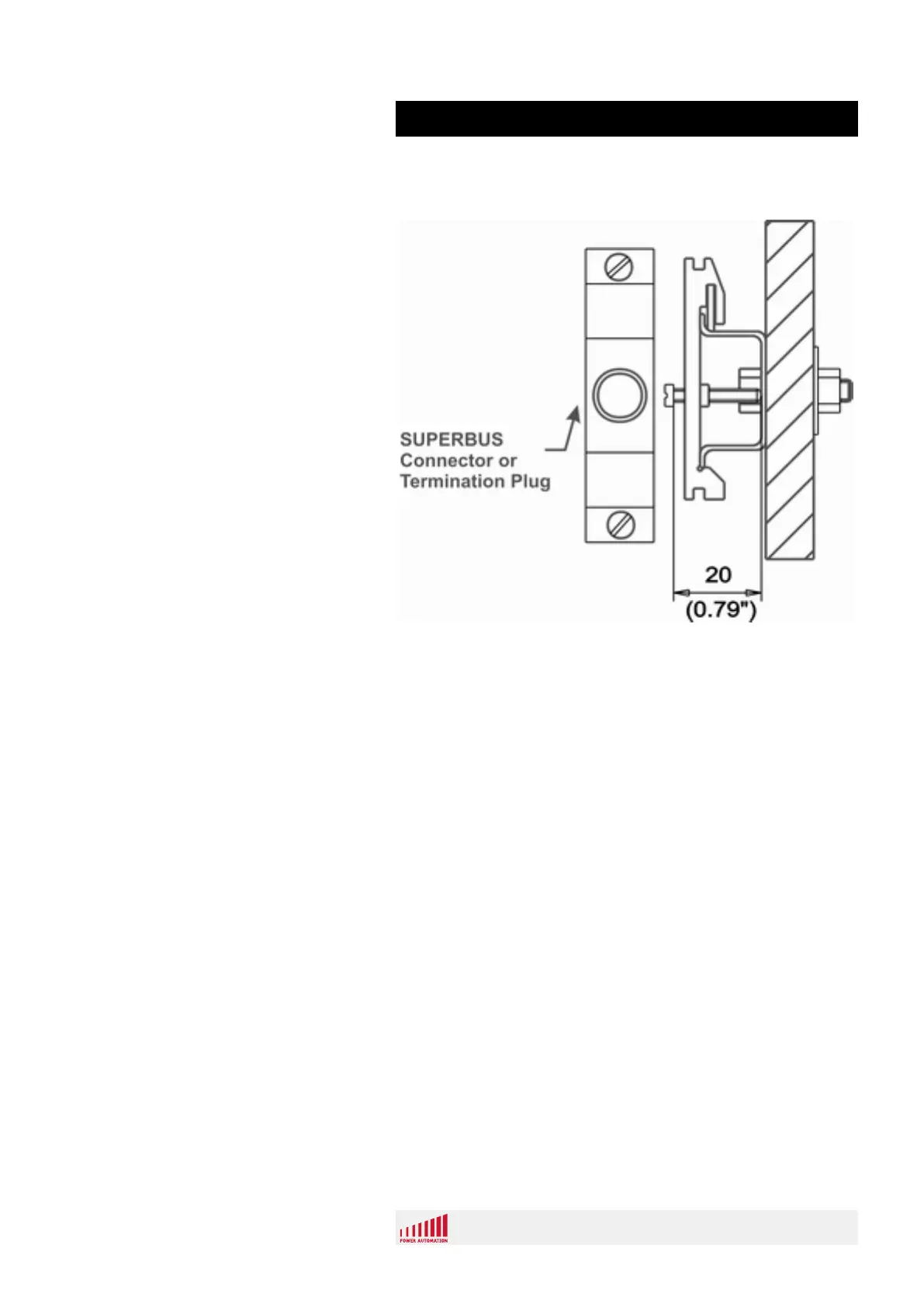

(Fig. 14).
Fig. 14: Stopping bracket fixation
When another rail than the one specified is used, the length of the
stopping bracket fixation screw may have to be adapted. However
it has to be selected in such a way that this screw does not collide
with the Superbus connector or the termination plug!
If a rail in accordance with DIN-EN 50022 is used, for example, the
screw must be changed for M4x12.
