power automation PA 8000 User Manual

The following figure shows how the outputs are realized on each
PAMIO 2416 module.

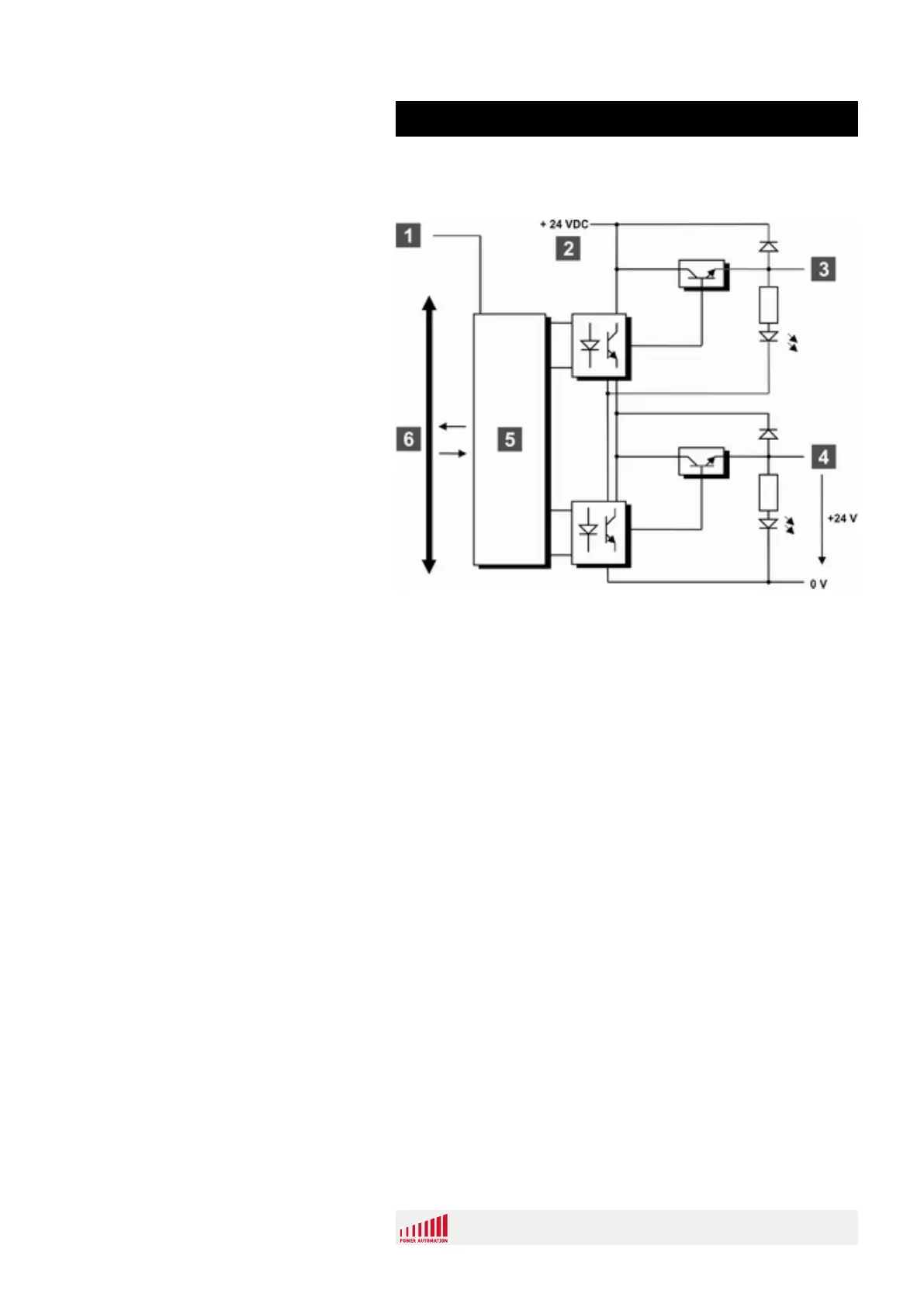

Fig. 35: Outputs equivalent schematic
1 Supplied from PCI Superbus board
2 Output supply input (-15 % - +12.5 %)
3 Output n + 1
4 Output n
5 Logic
6 Internal serial bus
Output Schematic
PA 8000 PAMIO
PAMIO Components
12.01.2017 | 61
