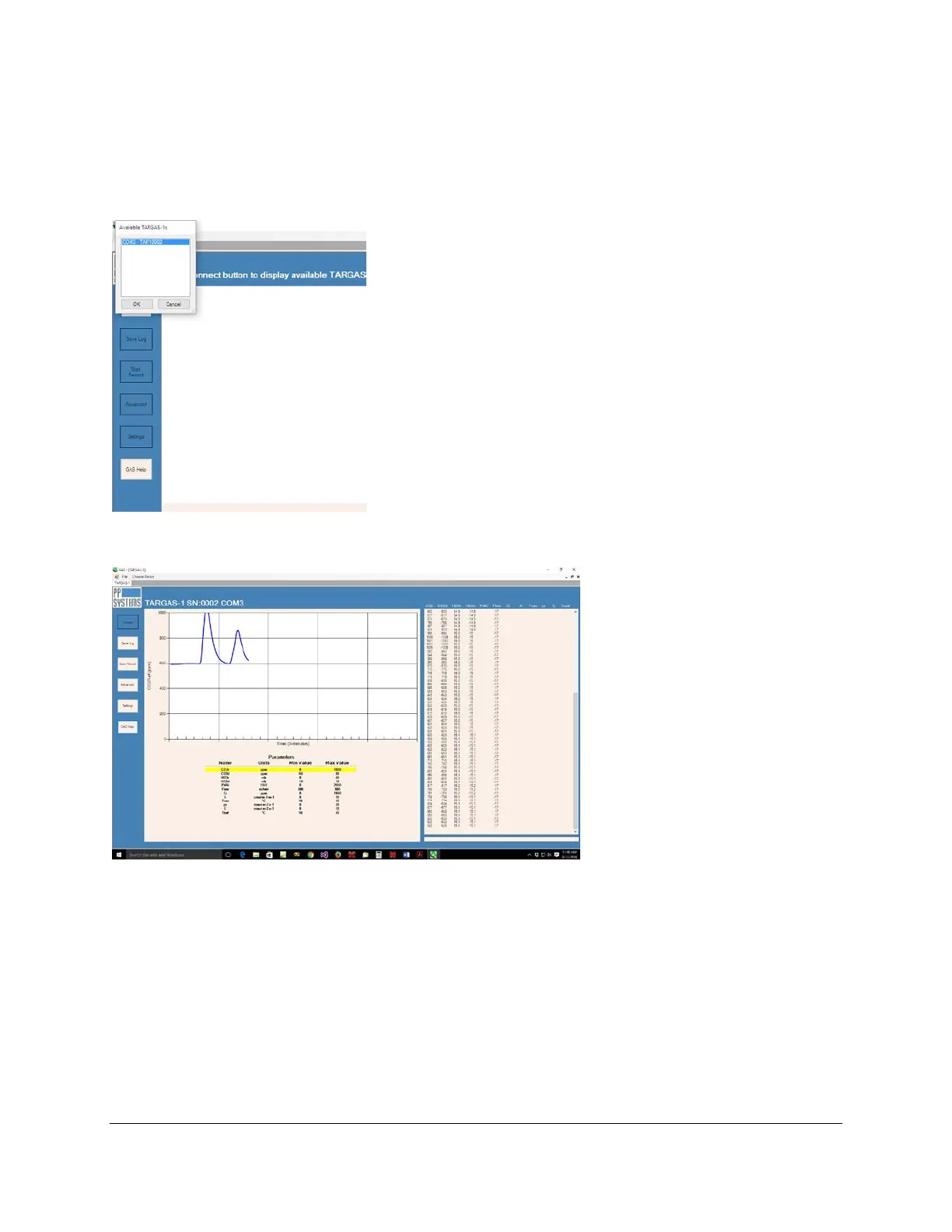

In the top left corner, a box will appear listing all available TARGAS-1 devices. Select one and click OK.
After clicking OK, the main measurement screen will be displayed.
Note: In the top left area, the device name (e.g., TARGAS-1, EGM-5, SBA-5 or WMA-5), serial number,
and COM port are all displayed. Data is displayed both graphically and numerically. GAS gives the ability
to log past data activity in a current session (Save Log) or record data (Start Record) for a time segment.
Clicking the Advanced button will show a command-line window for sending commands directly to and
from the TARGAS-1. The Settings button allows the user to modify the parameters’ minimum and
maximum values. Data is saved in comma-delimited .txt files. A graphical representation of each
parameter can be seen by clicking the parameter name in the table below the graph. The highlighted
parameter will be displayed on the graph.
For more detailed information on the functionality of GAS, refer to “Gas Help” under the Help menu in the
software.
