Pr
Air pressure in IRGAs (mb)
Msoil
Soil moisture content (%)
--- Closed ---
Indicates the machine is in Closed mode
Left Arrow
Goes back the previous screen (Measure Screen 1).
Right Arrow
Selects the next measurement screen (Graph Screen).

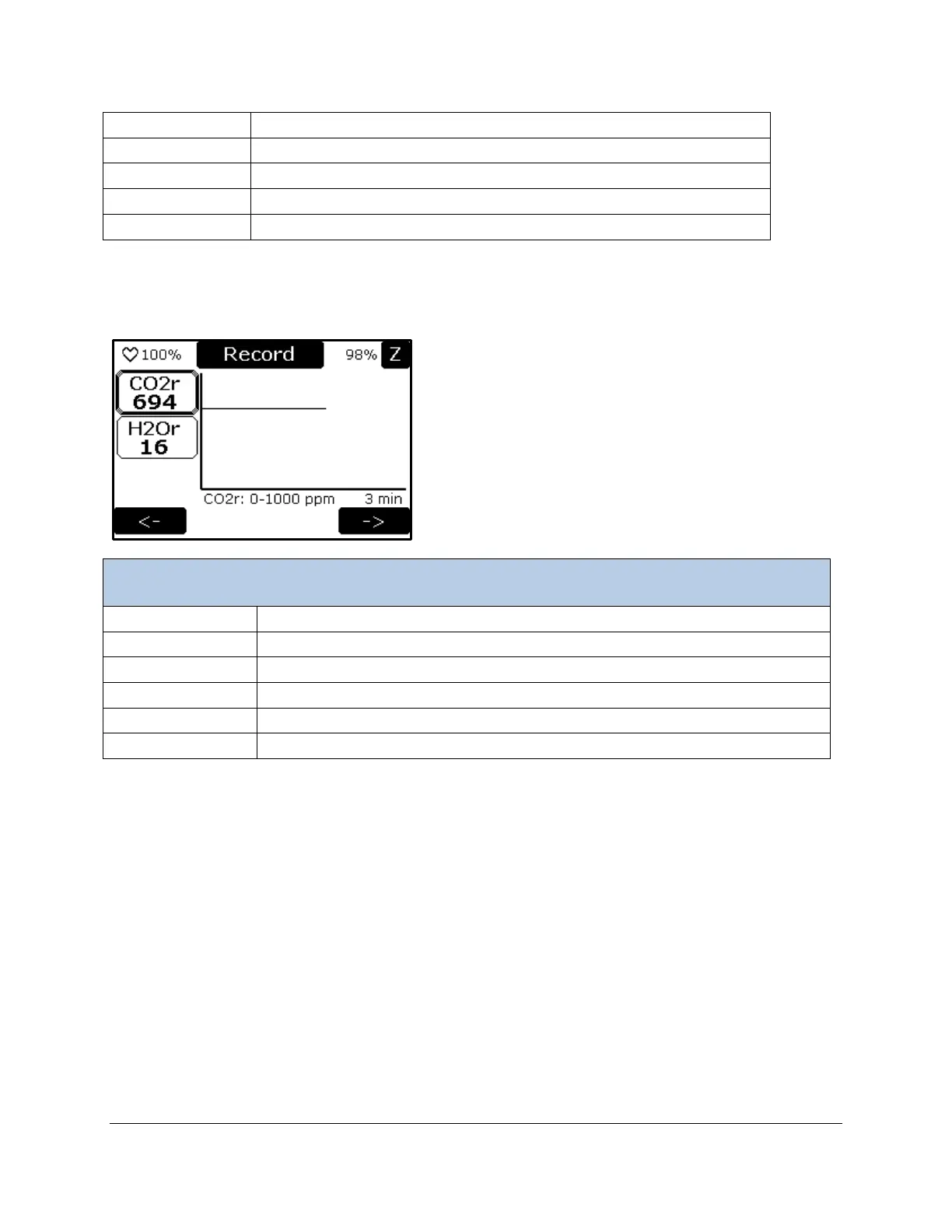

Graphic Display Screen
The Graphic display screen shows a real-time display of CO2r or H2Or.
Graphical Display Screen
CO2r Button
CO
2
Reference: Fixed range: 0 – 1000 ppm
H2Or Button
H2O Reference: Fixed range: 0 – 30 mb
Y-axis
Range and units
X-axis
X-axis time (range 3 minutes)
Left Arrow
Goes back the previous screen (Measure Screen 2).
Right Arrow
Selects the next measurement screen (Measure Screen 1).
To display one of the 2 parameters simply press the corresponding button. Only one parameter can be
displayed at a time. When selected it will be have a dark border around it.
