TARGAS-1 Operation Manual V. 1.02 37 support@ppsystems.com
TARGAS-1 Menu Overview (Flow Chart)
The flowchart on the next page describes an overview of the touch display for the TARGAS-1. When the
instrument is first powered up, there is a brief period where the Splash screen is shown. After this time,
the instrument goes into the warm-up period which is approximately 10-15 minutes and the Measure
screen is displayed. During and after the warm-up period, the user has the ability to navigate through the
menus as shown in the flowchart below. The following sections describe each screen and its functionality.

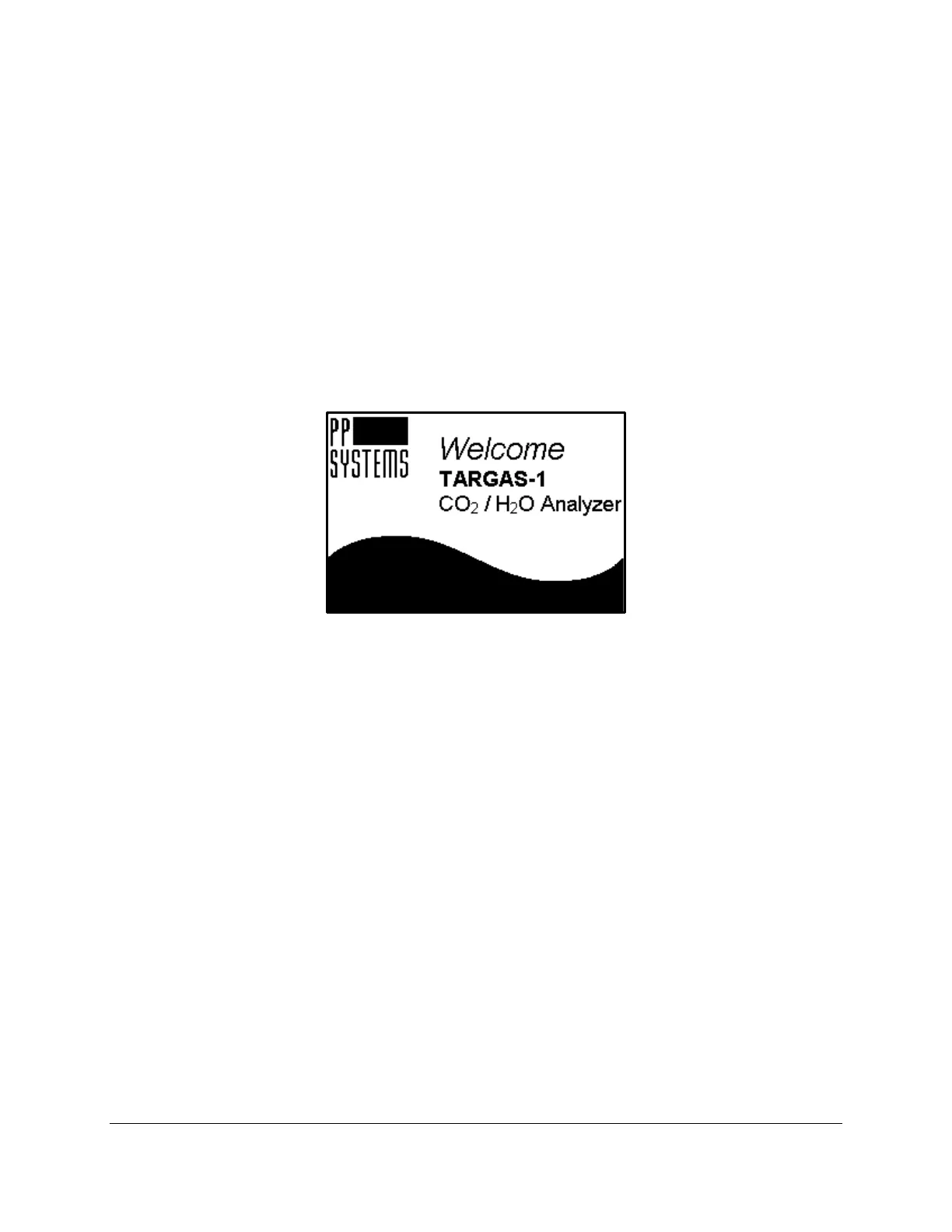

Splash Screen
The Splash screen is always shown on the display when the TARGAS-1 is off. When the instrument is
first powered up, the Splash screen is refreshed and displayed momentarily followed by the Measure
screen.
To Next Page
