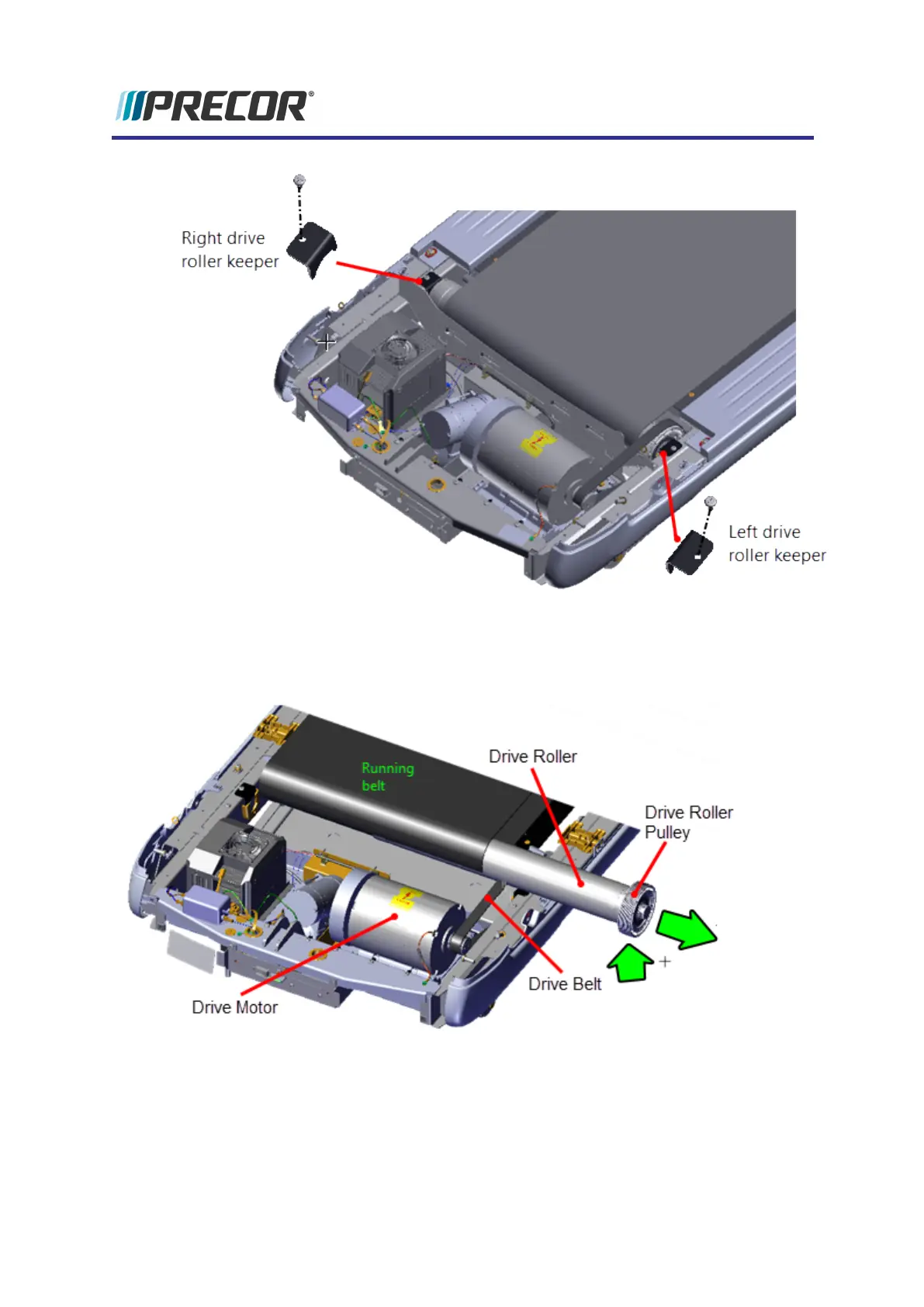

7. Loosen the Take-up Roller tension adjustment bolts enough to allow the freedom of
movement required to lift the Drive Roller from the mounting brackets. Slide the Drive
Roller through the running belt and remove.
Installation Instructions
1. Place the Drive Roller thru the Running Belt and then set the Roller back into position in
the mounting brackets.
Experience Series 700 Line Treadmills
109
5 Replacement Procedures
Drive Roller Replacement
