Running Belt Tension and Tracking Adjustment
About
This procedure provides instructions to verify and make adjustments to the running belt ten-
sion and tracking alignment. The running belt tension and tracking should be verified anytime
the running belt is replaced or the belt tracking is not centered.
Tools
l 5/16" Hex Key l Belt tension gauges (2 qty)
(Precor pn PPP000000020007101)
Note:Proper tensioning of the belt requires the use of two tensioning gauges, Pre-
cor part number PPP000000020007101.
Specification
System Component Specification
Running belt tension (gauge/percent) 3.55 (0.55%)*
Notes:*Referenced to 3.0 (0.0%)
Procedure
CAUTION: 1) The tracking adjustments should only be done in 1/4 turn increments.
2) ONLY use the right side tension bolt to adjust tracking.
3) ONLY use hand tools to adjust tracking.
Running belt tension adjustment

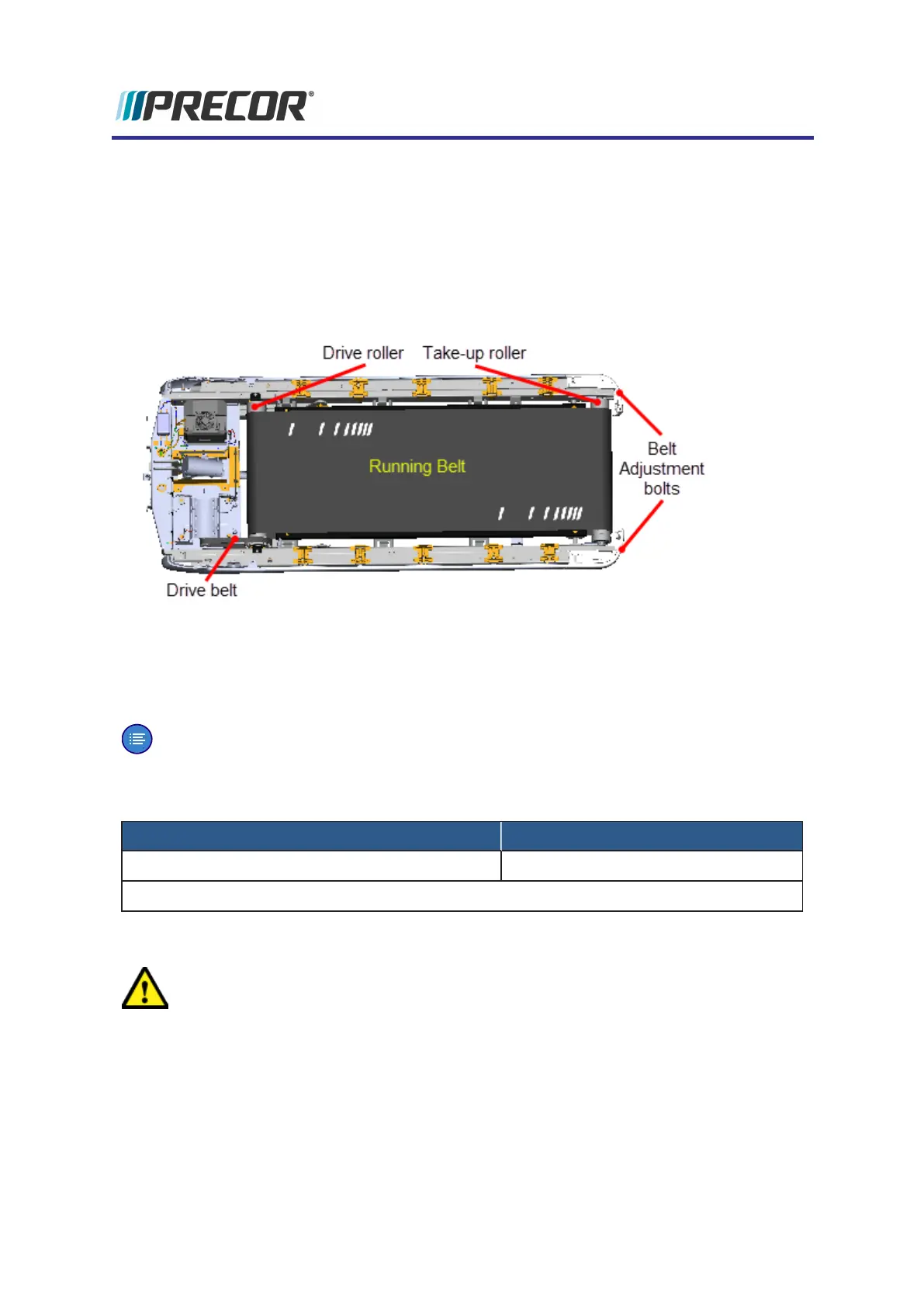

Review entire procedure before starting.
Experience Series 700 Line Treadmills
40
4 Adjustment Procedures
Running Belt Tension and Tracking Adjustment
