Lift Motor Replacement
About

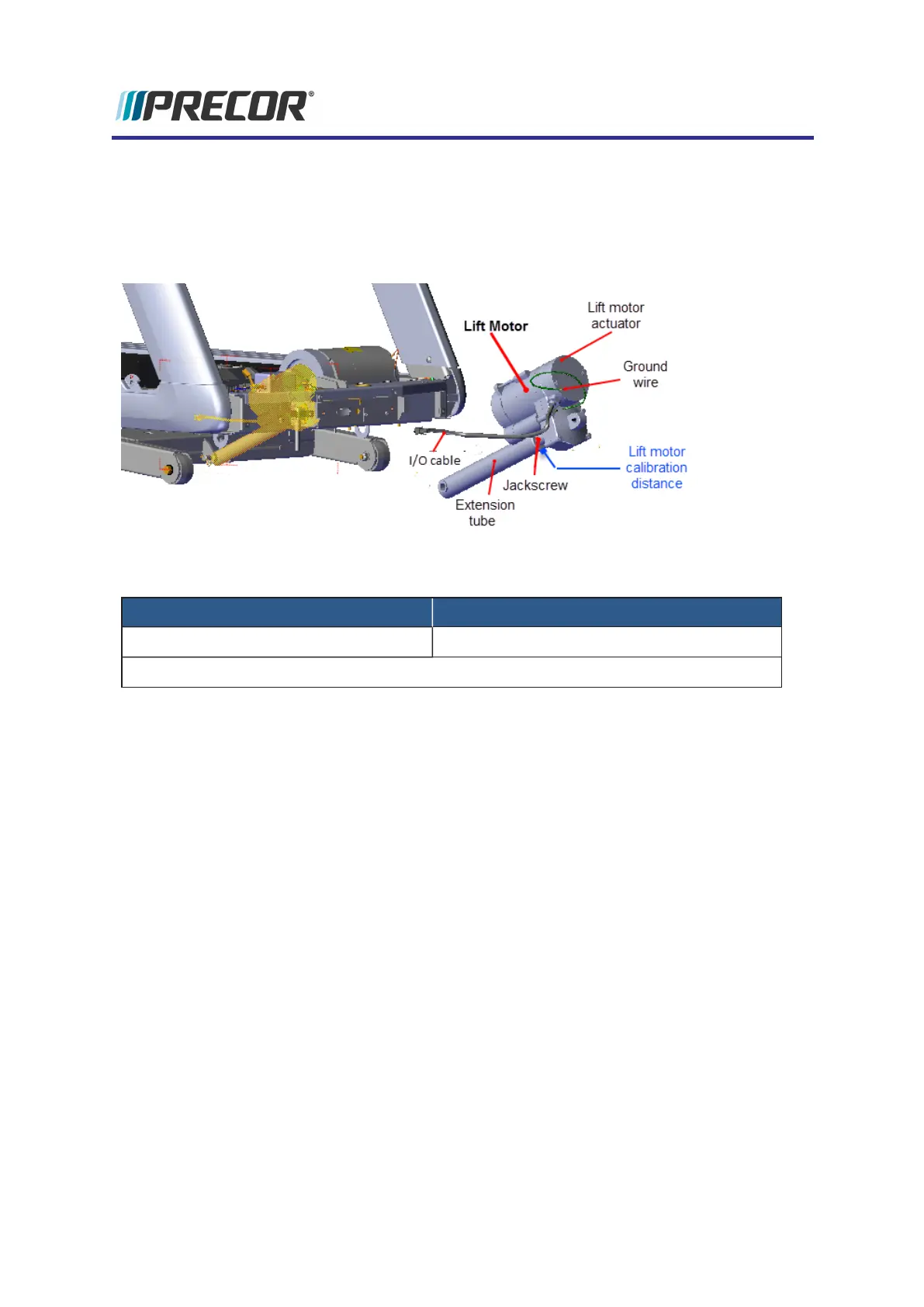

This procedure provides instruction to remove and replace the Lift Motor.
Specification
System Component Specification
Lift Motor Calibration Distance* 1 1/8 in - 1 3/16 in (2.8 cm - 3.0 cm)
Note: * Calibration distance is specified at incline level 0.
Procedure
Removal Instructions
Review entire procedure before starting.
1. Remove the hood cover, see "Hood Cover Replacement" on pageî56.
2. You can access the lift motor jackscrew in one of two methods: 1) by raising the tread-
mill provideding access from the front of the treadmill or 2) by laying the treadmill on its
side. This procedure uses the front access method. If you do not have supports avail-
able, then use the alternative side access method, see "Side lift platform assembly
Experience Series 700 Line Treadmills
122
5 Replacement Procedures
Lift Motor Replacement
