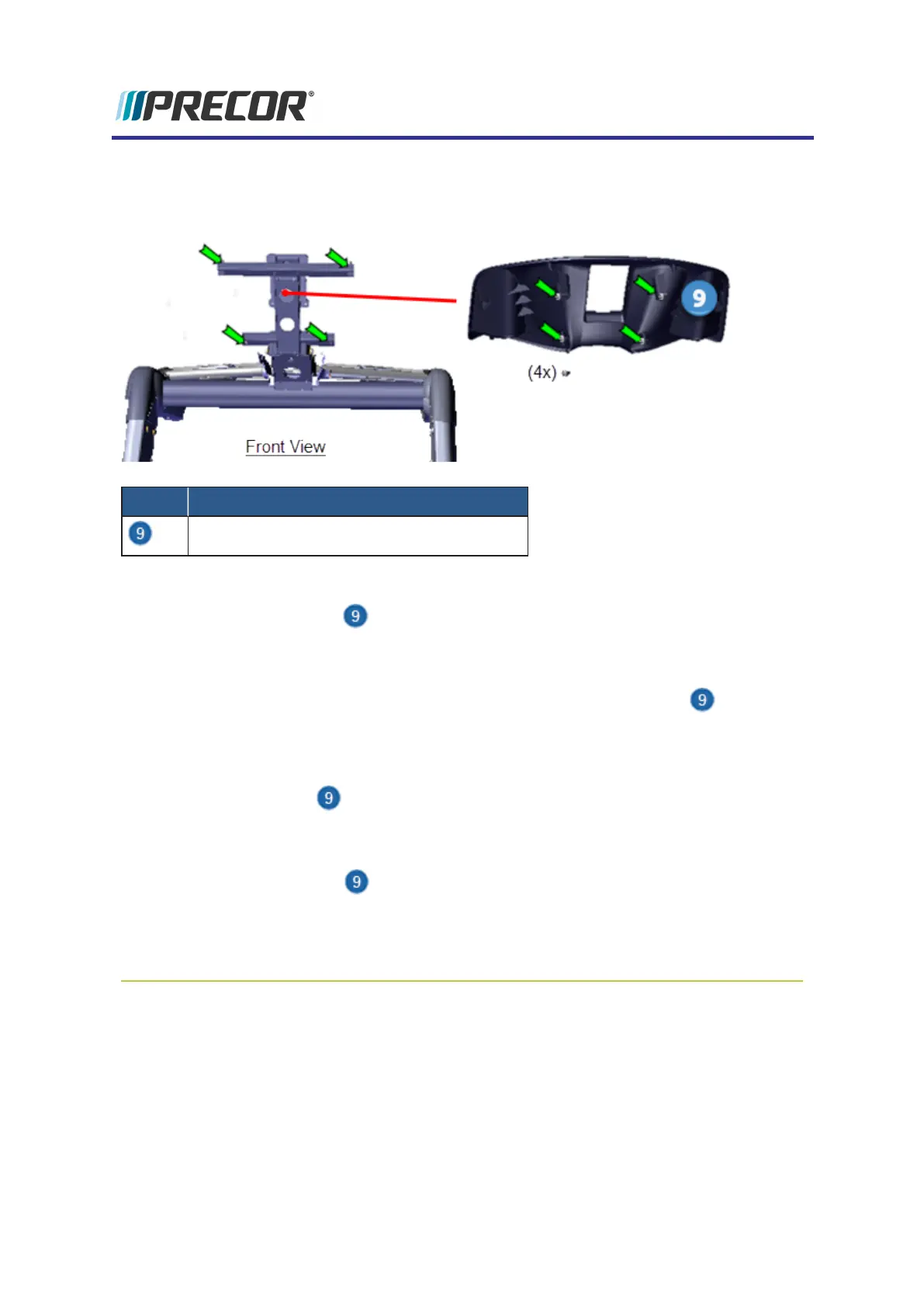

Precor TRM700-16 Base - Dash Front Cover Replacement

Dash Front Cover Replacement
Dash Front Cover Replacement
ID Description
Dash Front Cover
Removal Instructions
1.
Remove the back cover , see "Covers and Panels Replacement" on page54.
2. Remove the console, refer to the treadmill assembly guide (700 Line Treadmill
Assembly Guide P/N 304387-101).
3.
Remove the four #3 Phillips screw fasteners and remove the front cover . Retain
fastener hardware for installation.
Installation Instructions
1.
Reinstall front cover and secure using the four #3 Phillips screw fasteners.
2. Reinstall the console, refer to the treadmill assembly guide (700 Line Treadmill
Assembly Guide P/N 304387-101).
3.
Reinstall the back cover and secure using the seven #3 screw fasteners, see
"Covers and Panels Replacement" on page54.
4. Operate the treadmill and verify the console and machine operation.
