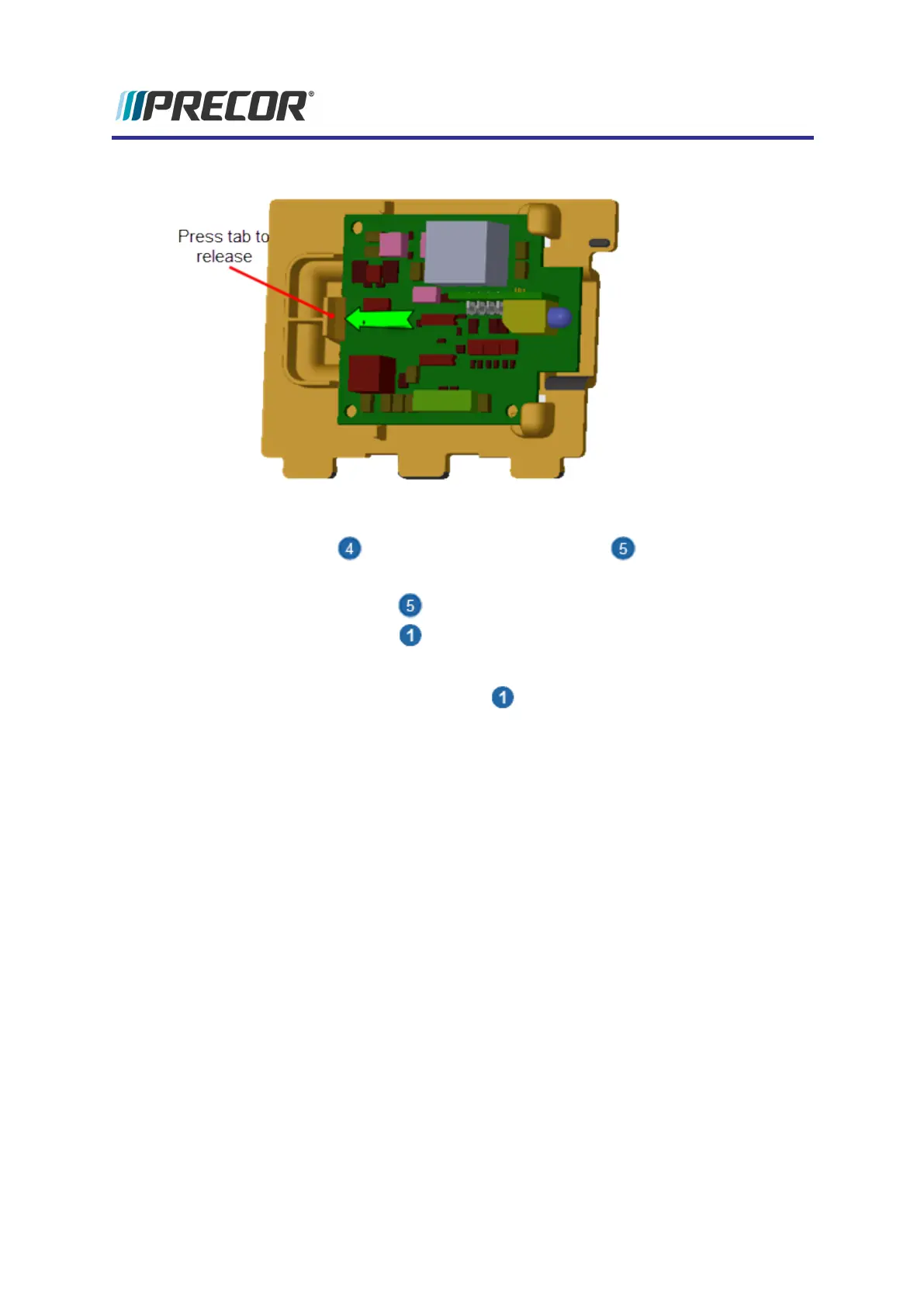

tab clip to remove.
Installation Instructions
1.
Reinstall the ASL PCA board onto the ASL PCA Bracket . Securely snap the
ASL PCA board into position on the bracket.
2.
Reinstall the ASL PCA Bracket by pressing the tabs into the mounting slots on the
Power Entry Assembly Bracket .
3. Reconnect the ASL interface cable RJ11 connector, see "Wire Diagram" on page79.
4.
Reinstall the Power Entry Assembly bracket and secure using the four #3 Phillips
fasteners. Make sure that the wire cables are not pinched or damaged during install-
ation.
5. Reinstall the hood cover, see "Hood Cover Replacement" on page56.
6. Connect the power cord and switch the ON/OFF circuit breaker ON.
7. Verify the ASL light operation:
a. Verify that the ASL light is Solid Blue. If the ALS light is Pulsing Blue, Pulsing Yel-
low, or Solid Yellow, resolve the issue and reset the ASL to Solid Blue.
8. Do the Operation Verification tests (see "Operation Verification" on page15) and return
to service.
E-Stop "Emergency Switch" Replacement
About
This procedure provides instruction to replace the E-Stop "Emergency Stop Switch".
Experience Series 700 Line Treadmills
82
5 Replacement Procedures
E-Stop "Emergency Switch" Replacement
