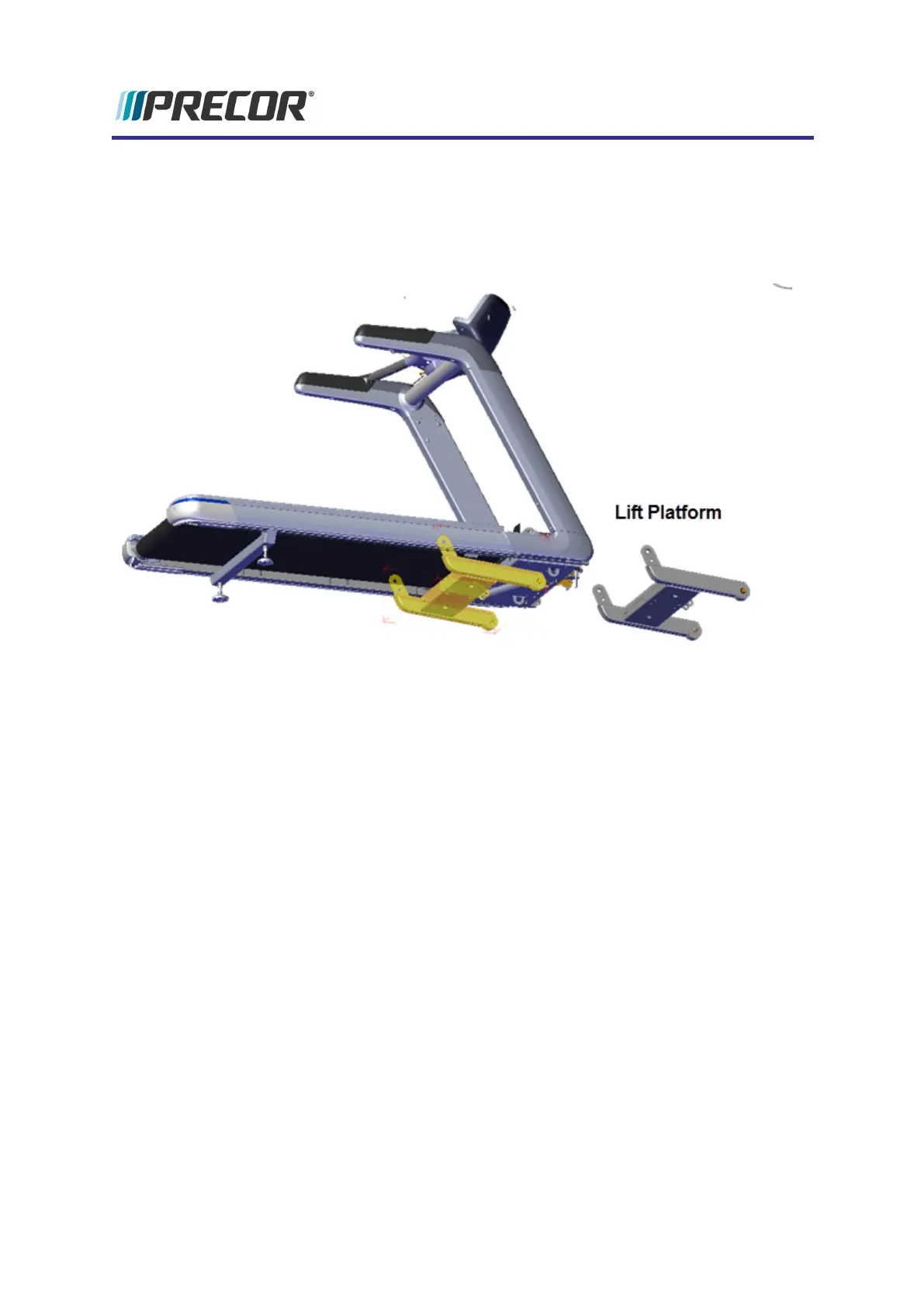

Lift Platform Replacement
About
This procedure provides instruction to remove and replace the Lift Platform.
Procedure
Removal Instructions
Review entire procedure before starting.
1. Remove the hood cover, see "Hood Cover Replacement" on page56.
2. Remove the left/right trim landing covers, see "Trim Landing Covers Replacement" on
page59.
3. Remove the left and right trim side covers see "Covers and Panels Replacement" on
page54.
4. You can access and remove the lift platform from the front of the treadmill or by laying
the treadmill on its side. This procedure uses the front access method. If you do not
have supports available, then use the alternative side access method, see "Side lift plat-
form assembly access" on page49 procedure.
Experience Series 700 Line Treadmills
131
5 Replacement Procedures
Lift Platform Replacement
