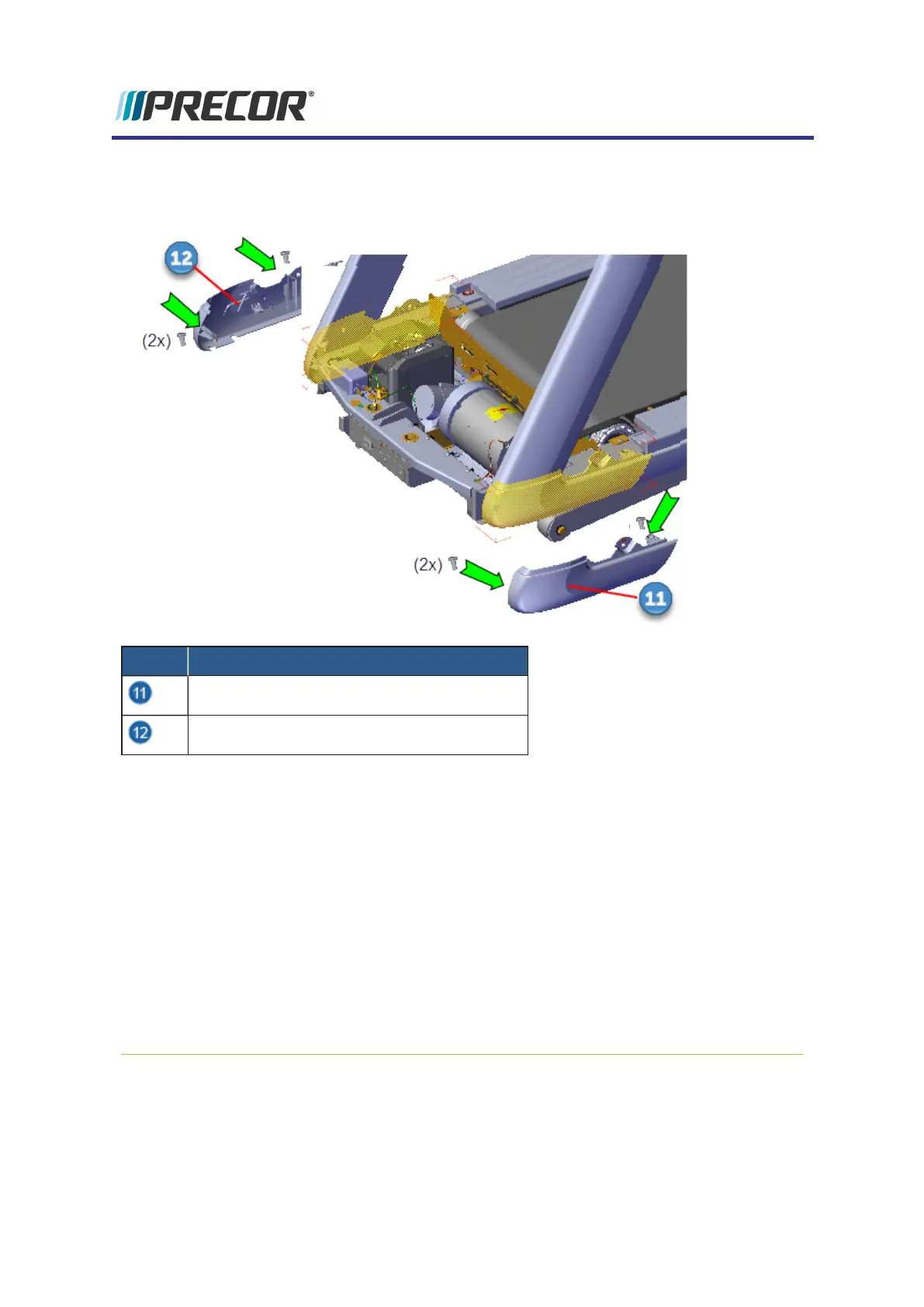

Hood Transition Cover Replacement
Hood Transition Cover Replacement
ID Description
Hood Transition Cover - left
Hood Transition Cover - right
Removal Instructions
Repeat procedure for both the left and right covers.
1. Remove the hood cover, see "Hood Cover Replacement" on the previous page.
2. Remove the two #3 Phillips hood transition cover fasteners . Pull down and away from
the frame rail to release tab clips and remove the cover.
3. Repeat procedure for both left and right covers.
Installation Instructions
Repeat procedure for both the left and right covers.
1. Position the hood transition cover top flange under the targa upright and press to lock
tab clips in place. Secure using the two #3 Phillips fasteners and fully tighten.
Experience Series 700 Line Treadmills
57
5 Replacement Procedures
Covers and Panels Replacement
