Precor TRM700-16 Base - Trim End Cap Covers Replacement

Trim End Cap Covers Replacement
Trim End Cap Covers Replacement

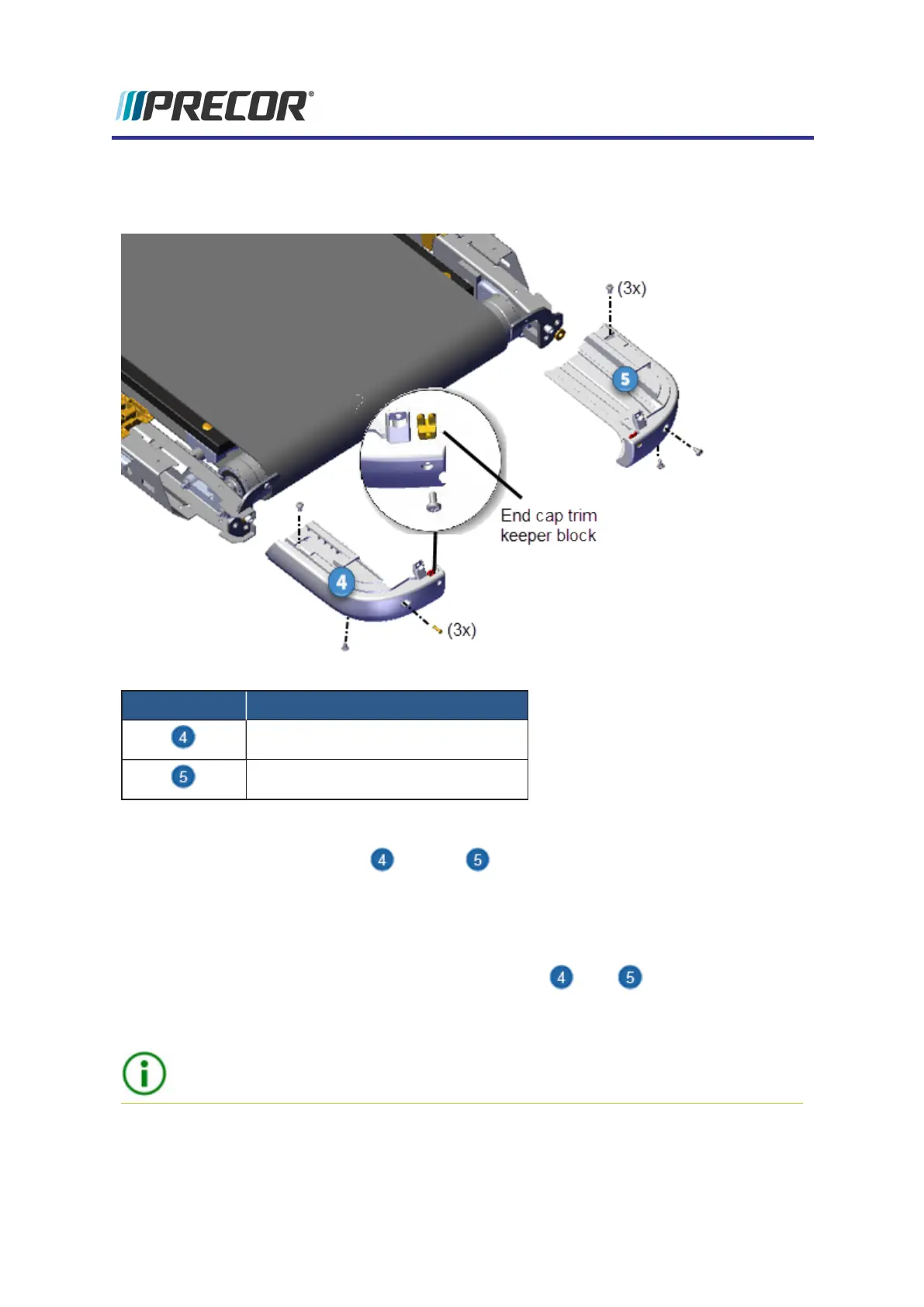

ID Description
Trim End Cap - left
Trim End Cap - right
Removal Instructions
Repeat procedure for both the left and right end cap covers.
1. Remove the hood cover, see "Hood Cover Replacement" on page56.
2. Remove the left and right trim landing covers, see "Covers and Panels Replacement"
on page54.
3.
Remove the three #3 Phillips trim end cap cover (left , right ) fastener screws.
One fastener on the top, one fastener on the end, and one fastener on the bottom.
Retain fastener hardware for installation.
TIP:Use a short stub #3 Phillips screwdriver to remove the bottom end cap fastener.
