Trim Side Cover Replacement
Trim Side Cover Replacement

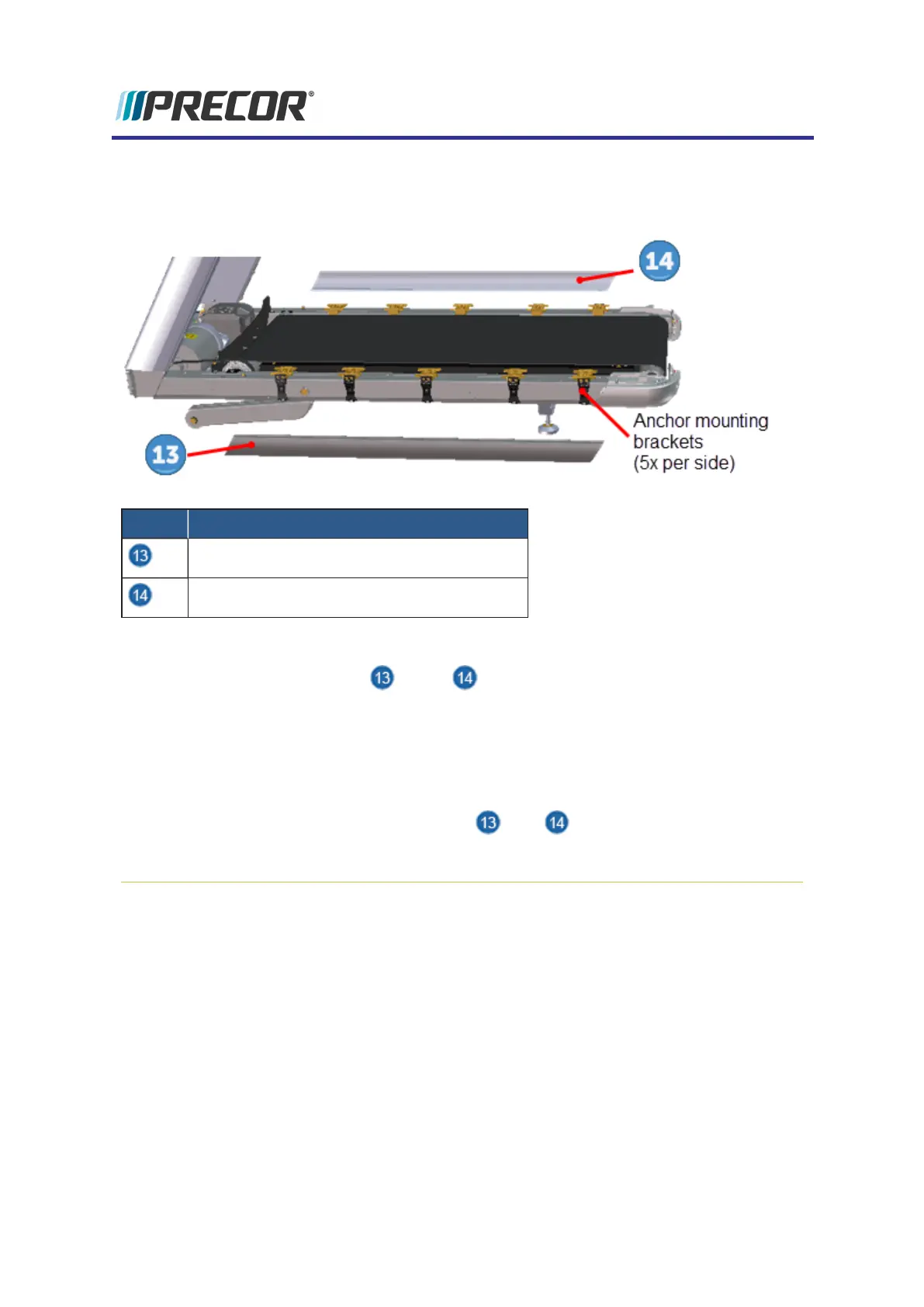

ID Description
Trim Side Cover - left
Trim Side Cover - right
Removal Instructions
Repeat procedure for both the left or right side trim covers.
1. Remove the hood cover, see "Hood Cover Replacement" on page56.
2. Remove the trim landing cover, see "Covers and Panels Replacement" on page54.
3. Remove the hood transition cover, see "Covers and Panels Replacement" on page54.
4. Starting from the front moving reward, use a standard flat blade screwdriver to release
(unsnap) the top of the trim side cover (left , right ) from the five anchor mount
clips. Hold the cover while releasing the upper anchor bracket clips and then pull down
Experience Series 700 Line Treadmills
