Lift Motor Calibration
About

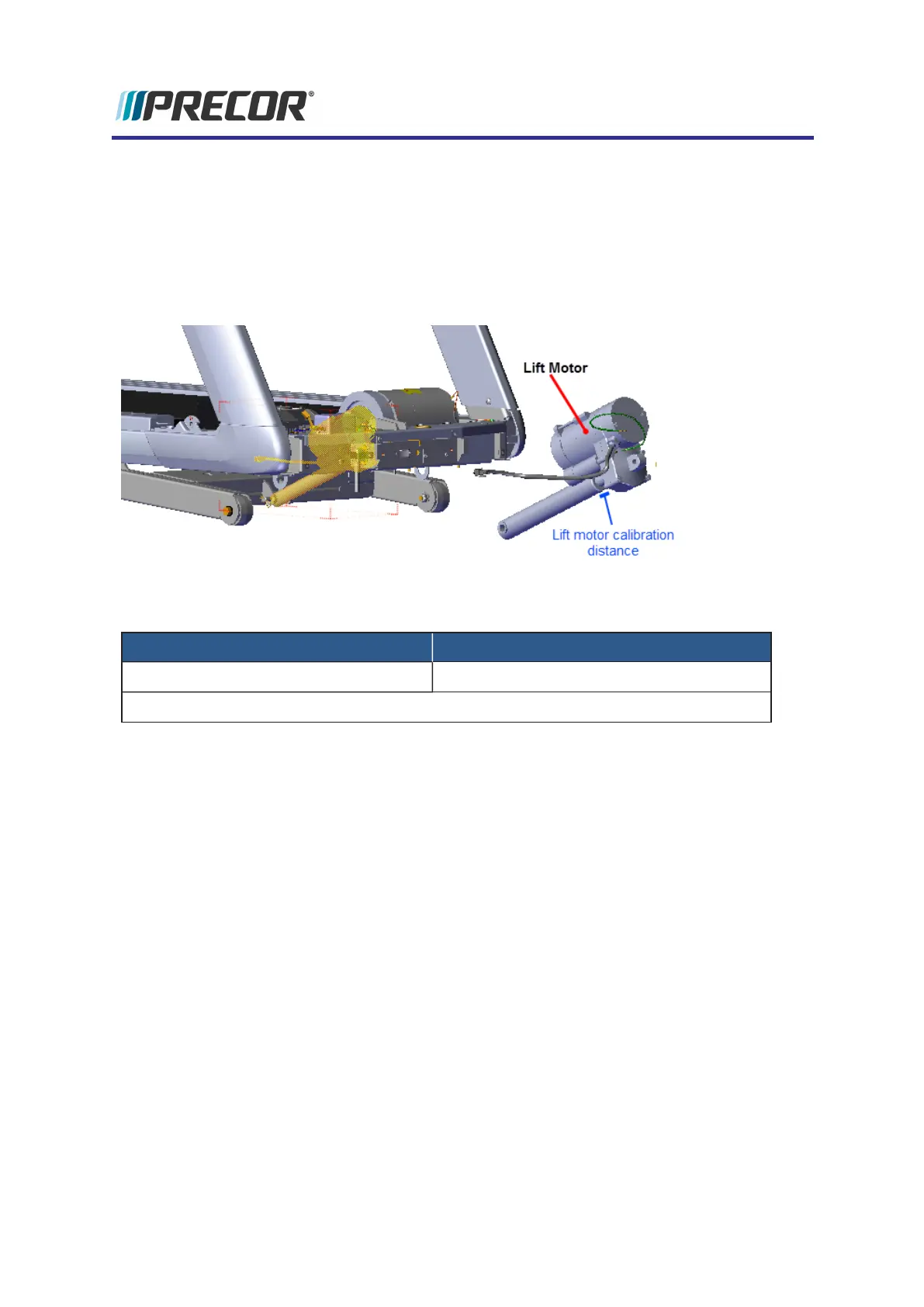

This procedure provides instruction to verify and calibrate the Lift Motor and Incline system.
The Lift Motor calibration should be verified any time the lift motor is replaced, the lift motor
fuse fails, or any incline system component is replaced.
Specifications
System Component Specification
Lift Motor Calibration Distance* 1 1/8 in - 1 3/16 in (2.8 cm - 3.0 cm)
Note: * Calibration distance is specified at incline level 0.
Procedure
Review entire procedure before starting.
1. Remove the Hood cover, see "Hood Cover Replacement" on page56.
2. Choose either the side or front access method to position the treadmill to access the lift
motor jackscrew. Go to the following selected side or front access procedures and
return to continue the calibration.
a. Side lift motor access method, go to "Side lift platform assembly access" on
page49,
Experience Series 700 Line Treadmills
45
4 Adjustment Procedures
Lift Motor Calibration
