l Maintenance counter operation: The counter starts at 1000 miles and counts down the
miles of active use to 0 miles. When the counter reaches zero, the ASL will begin
pulsing blue indicating preventative maintenance is due.

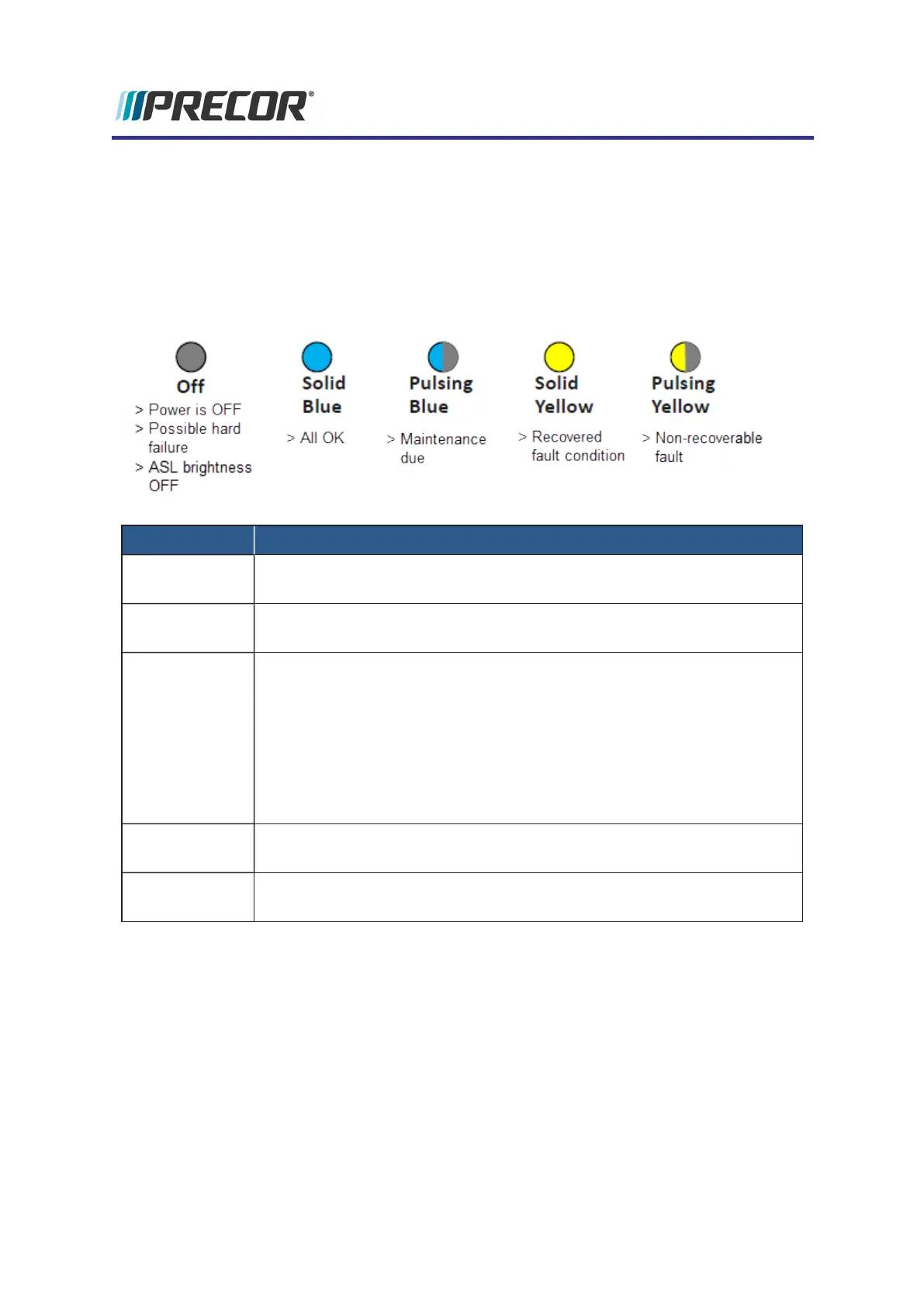

ASL States
The ASL utilizes a combination of blue and yellow lights to indicate the current operational
machine status.
ASL State DESCRIPTION
OFF The unit is powered OFF or there is no power to the LPCA or some other hard fail-
ure. ON P10, P20, and P30 consoles the ASL brightness is set to OFF.
Blue Solid Normal operation Indicates that the ASL has not detected any logged error
codes.
Blue Pulsing Preventative maintenance reminder.
Treadmills: A belt rating of 0 or 1 will cause a blue pulsing ASL light indicating
that there is a problem with the running belt/deck and is in need of servicing or
replacement.
Ellipticals: The maintenance counter starts at 1000 hours and counts down the
active use hours to 0. When the counter reaches zero hours, the ASL will begin
pulsing blue indicating preventative maintenance is due.
Yellow Solid Indicates an error has occurred, was self-corrected and the machine can be
used. The fault can be cleared.
Yellow Pulsing There is a current non-recoverable fault condition, there is a loss of a major func-
tion and the machine id out-of-service. Machine service is required.
Setting the ASL light brightness level
The ASL Light Brightness level settings are HIGH, MEDIUM, and LOW. On P10, P20, and
P30 consoles, the light brightness level can be switched OFF.
l On P10, P20, and P30 consoles, the OFF setting switches the ASL light brightness OFF
for all ASL state conditions. Setting the ASL Light Brightness OFF only switches the
ASLlight brightness OFFand not the ASL active status functionality.
l Regardless of the brightness level setting (including OFF), you can view the current
ASL state (blue, yellow, etc) in the service access menus, see "Viewing the current ASL
state" on the next page.
