ON/OFF SW Circuit Breaker Replacement
About
This procedure provides instruction to replace the ON/OFF SW Circuit Breaker.
The Power Entry Assembly located in the front of the treadmill under the frame weldment
cross member contains the Power Cord Inlet Assembly, the ON/OFF SW Circuit Breaker, and
the ASL
1
PCA board. The Power Entry Assembly Bracket must be removed to access these
components.

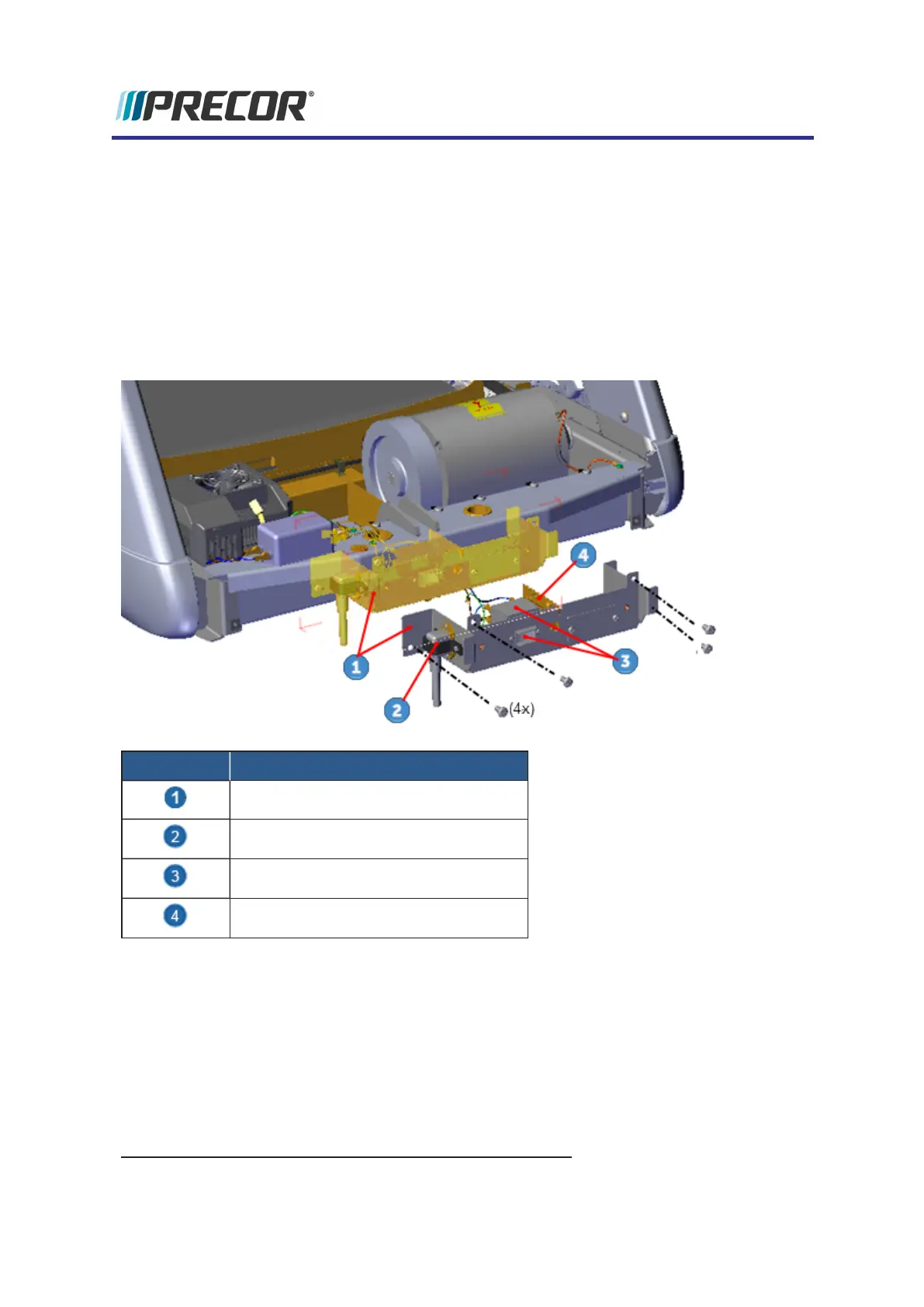

ID Description
Power Entry Assembly Bracket
Power Cord Inlet Assy
ON/OFF SW Circuit Breaker
ASL PCA Board
1
Active Status Light: Service and maintenance status light.
Experience Series 700 Line Treadmills
75
5 Replacement Procedures
ON/OFF SW Circuit Breaker Replacement
