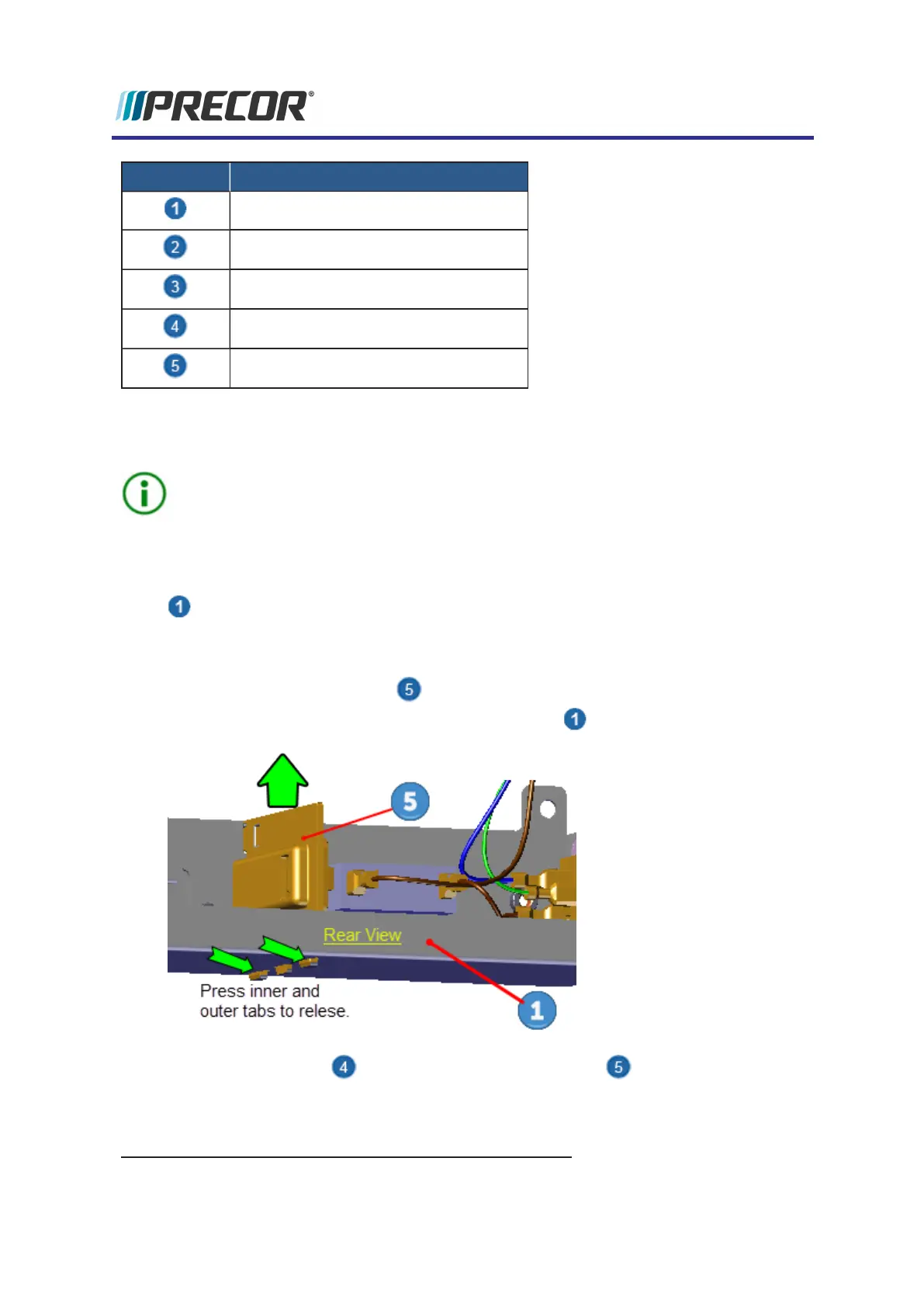

ID Description
Power Entry Assembly Bracket
Power Cord Inlet Assembly
ON/OFF SW Circuit Breaker
ASL PCA
ASL PCA Bracket
Removal Instructions
1. Switch the power OFF and unplug
1
the power cord.
TIP:For easier access, raise the incline to maximum before removing power. Access
the service Hardware Validation (51765761) and use the CROSSRAMP/INCLINE
Test to raise the incline and then remove power.
2. Remove the hood cover, see "Hood Cover Replacement" on pageî56.
3. Remove the four #3 Phillips fasteners and remove the Power Entry Assembly bracket
. Hold the bracket while removing to prevent wire cable damage. Retain fastener
hardware for installation.
4. Disconnect the ASL interface cable RJ11 connector, see "Wire Diagram" on pageî79.
5.
Remove the ASL PCA Bracket by pressing the inner and outer tab clips on the bot-
tom (underside) of the Power Entry Assembly Bracket while lifting the ASL bracket.
6.
Unsnap the ASL PCA board from the ASL PCA Bracket by pressing the outer
1
Disconnect a device power cord plug or cable connector from the power receptacle or outlet.
Experience Series 700 Line Treadmills
81
5 Replacement Procedures
ASL PCA Replacement
