1. Clean the running belt and deck, see "Running Belt and Deck Cleaning Procedure" on
page156.
2. Switch the power OFF and unplug
1
the power cord.
3. Remove the front hood and left/right trim landing covers, see "Covers and Panels
Replacement" on page54.

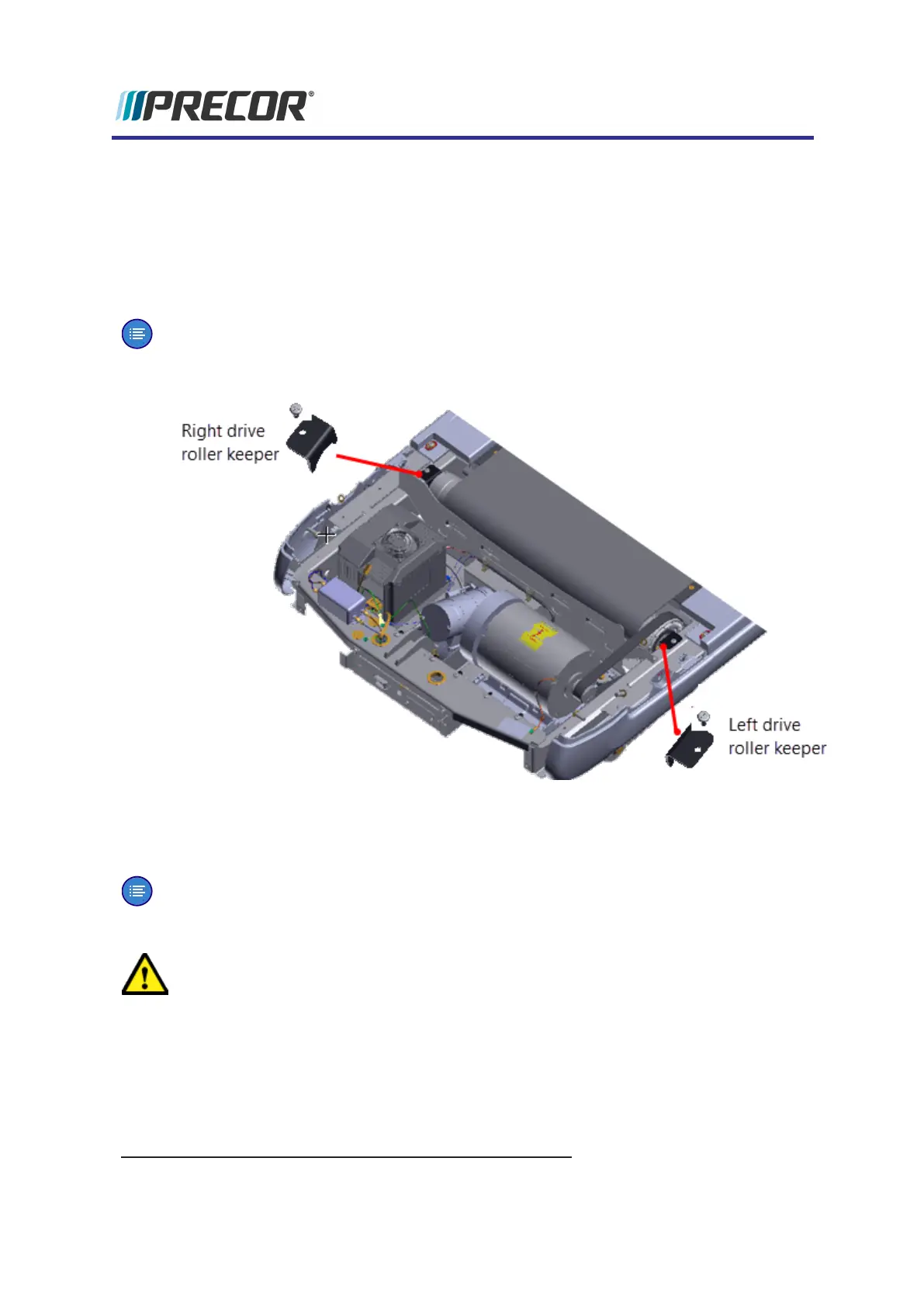

4. Make sure that the left and right Roller Keeper(s) are installed.
Note:TRM800-16 Treadmills - Some early production TRM800-16 treadmills may
only have one or no Roller keepers installed (PPP000000302495102 RIGHT HAND
ROLLER KEEPER, PPP000000302495102 LEFT HAND ROLLER KEEPER).
5. Relax the running belt tension by loosening the left and right 5/16" hex key tension
adjustment bolts. Alternately loosen the left and right adjustment bolts in 1/4 turn incre-
ments to evenly remove tension.
Note:It is not necessary to remove the adjustment bolts. Loosen bolts until the take-
up roller adjustment cassett touches the frame. No further loosening is required. If the
bolt is removed, remove the trim end cap cover and reinstall the bolt.
CAUTION:Only use hand tools to adjust tension. Power tools can easily over and/or
under tension causing damage to the belt and/or tension hardware mechanism.
1
Disconnect a device power cord plug or cable connector from the power receptacle or outlet.
Experience Series 700 Line Treadmills
41
4 Adjustment Procedures
Running Belt Tension and Tracking Adjustment
