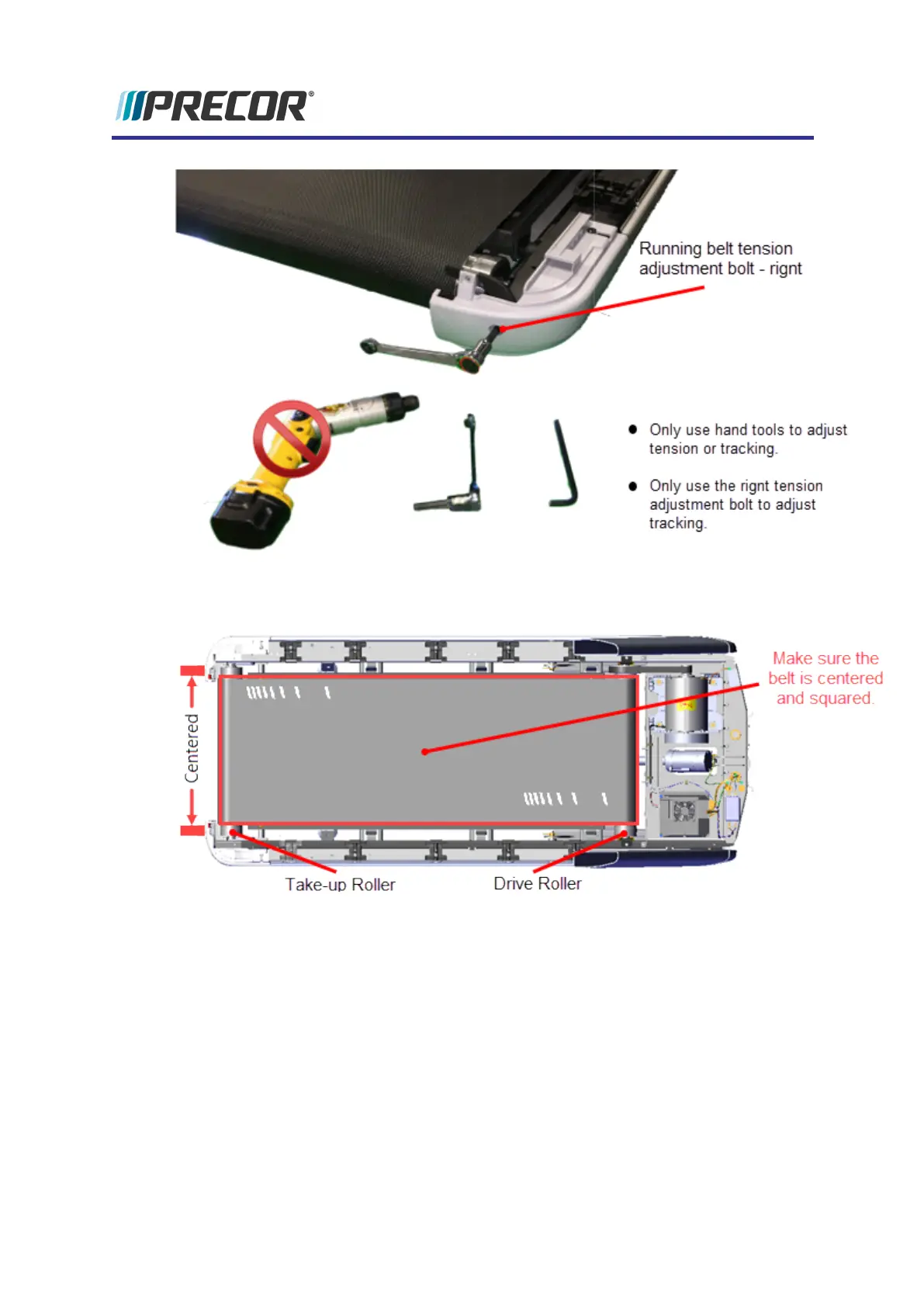

6. Verify that the running belt is centered and squarely positioned from the front Drive
roller to rear Take-up roller.
7. Move the running belt so that the seam is positioned underneath the treadmill.
8. Attach a running belt tension gauge on each side of the running belt opposite each
other. Place the gauges so that the trim landing mounting brackets do not interfere with
the gauge movement.
Experience Series 700 Line Treadmills
42
4 Adjustment Procedures
Running Belt Tension and Tracking Adjustment
