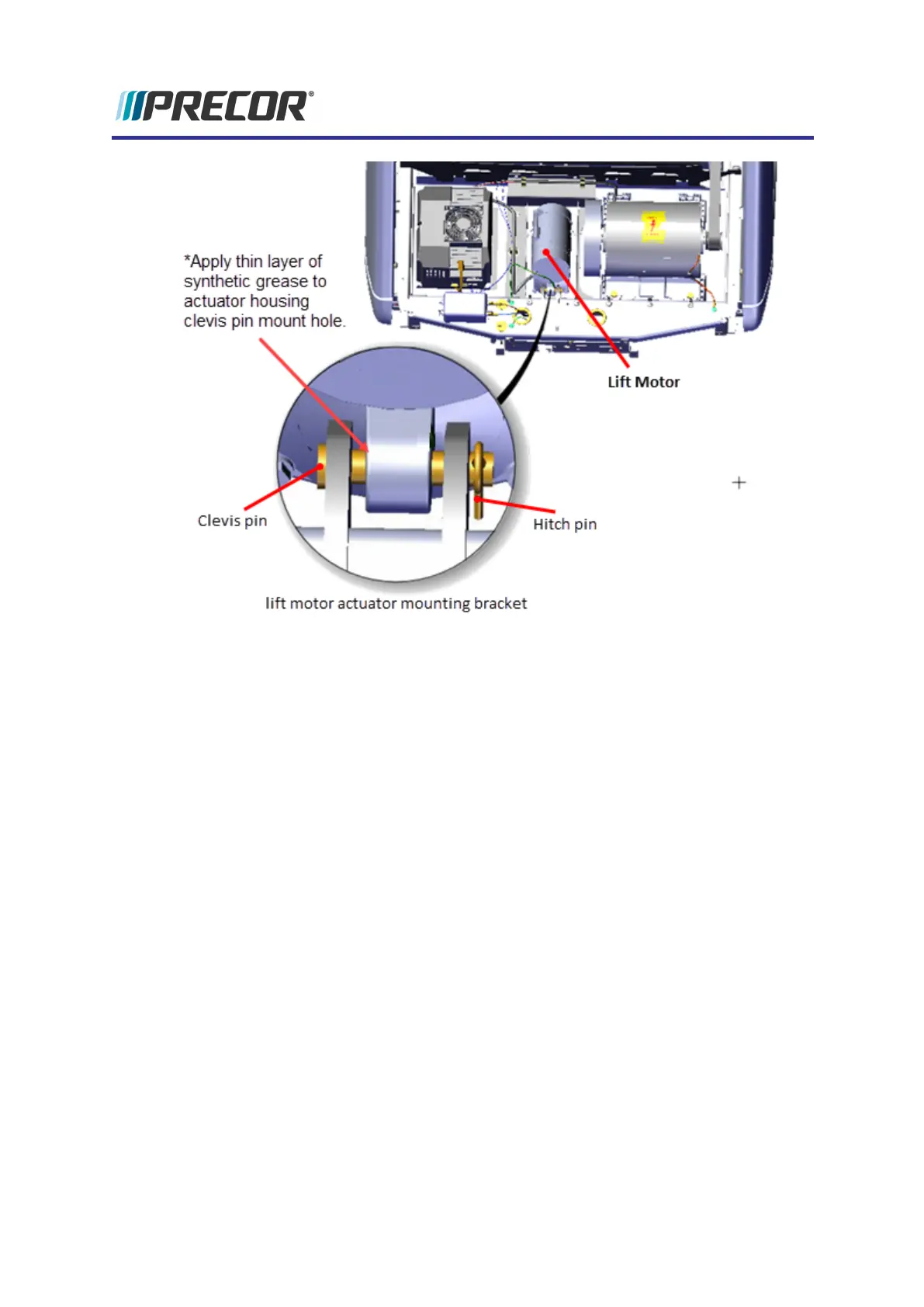

7. Place the extension tube into the lift platform mounting bracket and secure using the
hitch pin and clevis pin. It may be necessary to slightly rotate the extension tube to align
the clevis pin mounting holes. Choose an adjustment direction that will minimize the
change to the extension tube calibration distance. Firmly hold the jackscrew from turn-
ing while adjusting (rotating) the extension tube.
Experience Series 700 Line Treadmills
127
5 Replacement Procedures
Lift Motor Replacement
