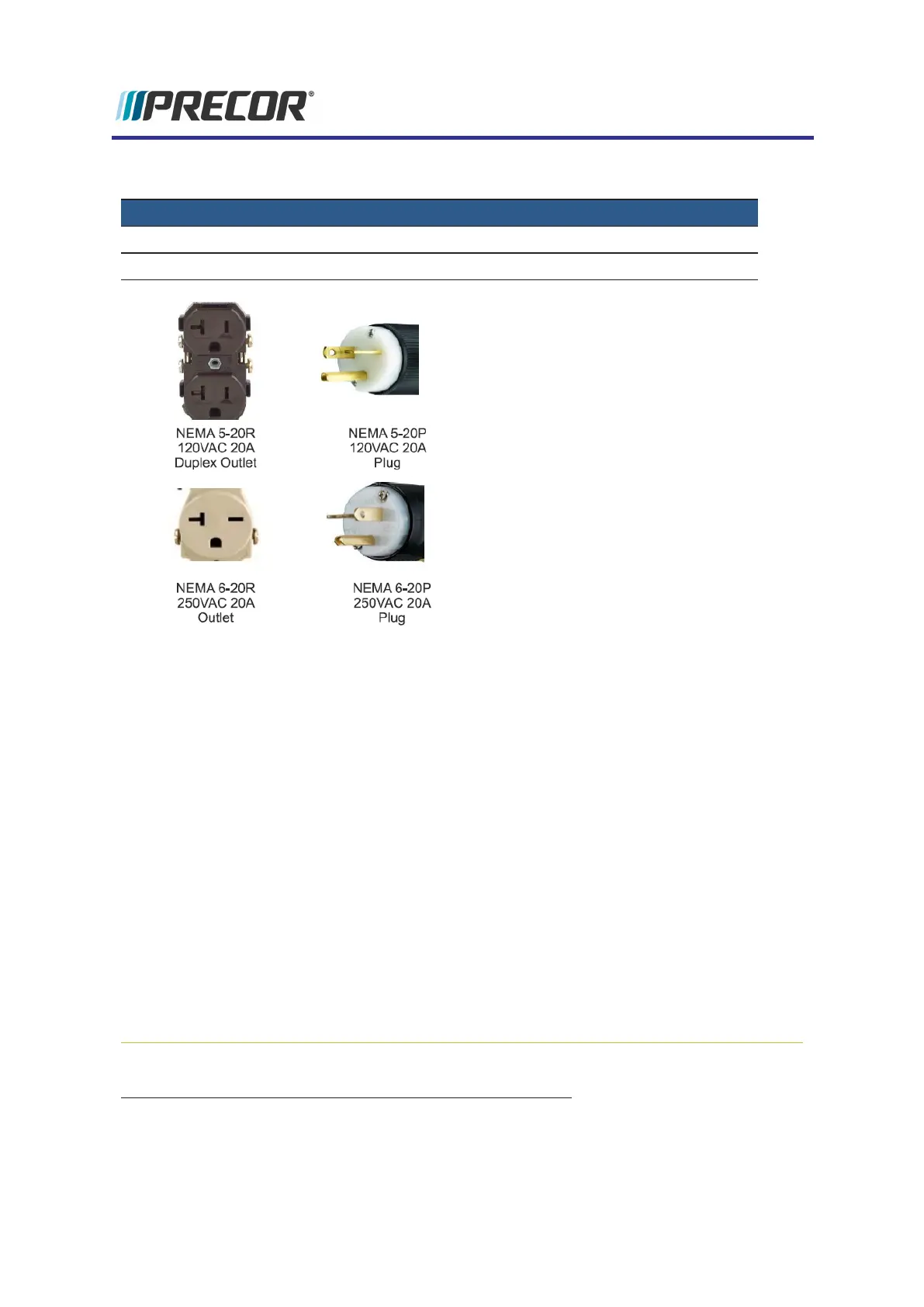

Plugs and Receptacles (US and Canada installations)
Country Equipment Voltage Outlet/Plug
1
Type
US &Canada 120 VAC: 50/60 Hz NEMA 5-20R/5-20P
US &Canada 240 VAC: 50/60 Hz NEMA 6-20R/6-20P
PVS (Personal Viewing System) displays
For equipment fitted with a PVS screen, a separate power connection is required. Using a 20
amp branch circuit, up to 10 displays can be connected. No other devices except PVS may be
connected to this circuit.
P62, P80, and P82
For self powered equipment fitted with a P62, P80, and P82, a separate power connection is
required. Using a 20 amp branch circuit, up to ten consoles can be connected. No other
devices except P62, P80, and P82 may be connected to this circuit..
RF (CATV) power requirements
For P62, P80, and P82 or PVS displays, there is a minimum RF input power requirement to
properly supply CATV
2
signal to the consoles.
l Analog video power: +5 dB to +10 dB RF power with a +40 dB minimum channel to
noise ratio (at each display).
l Digital RF power: -5 dB to 0 dB (at each display).
1
Device power cord connector or electrical cable male connector that is inserted into an elec-
trical receptacle "outlet" (also called the plug-in).
2
Community Access Television
Experience Series 700 Line Treadmills
10
1 Introduction
General Information
