5 Description of the machine
5.1 Machine structure

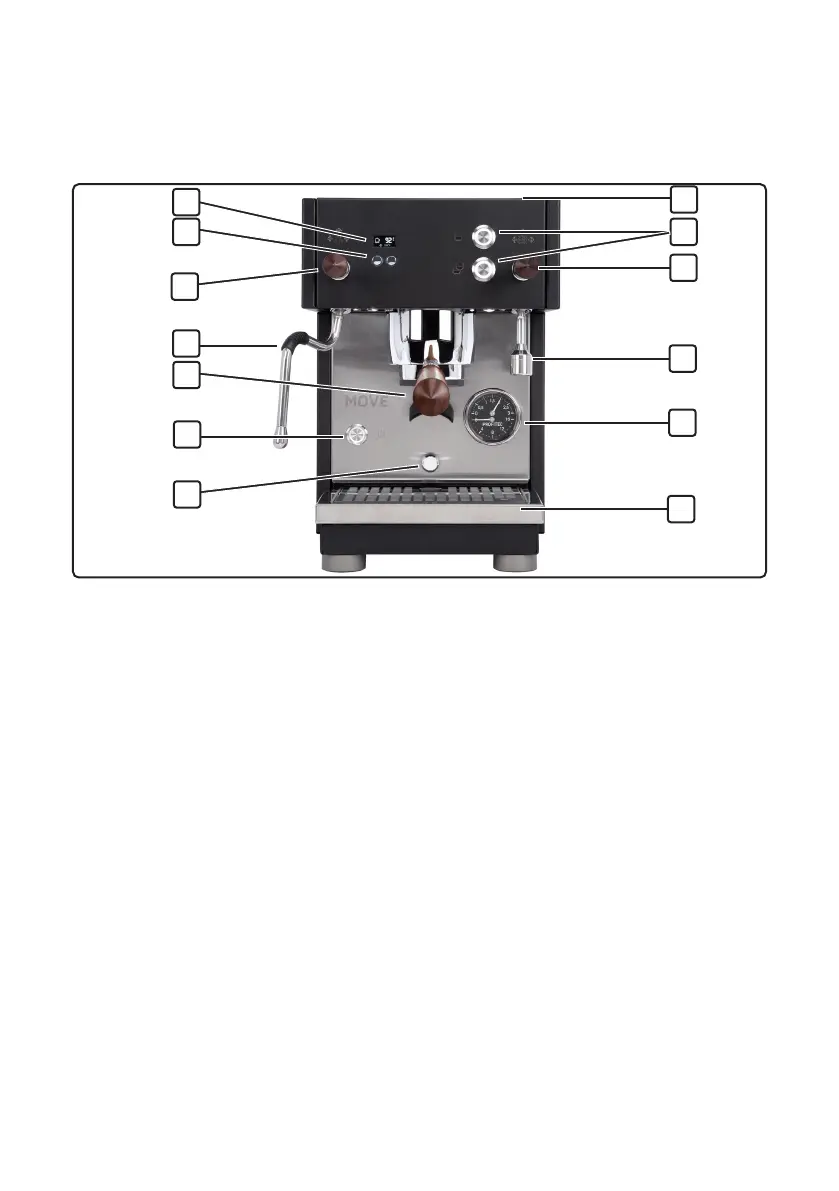

Fig.1 Structure and components
1 Display for showing and conguring
settings
2 Display buttons
3 Steam tilt valve for drawing hot steam
4 Steam wand with rubber handle
5 Portalter with silicone attachment
6 On/off button with power indicator (LED
ring)
7 Residual water outlet of brew group
8 Drip tray with grid
9 Boiler and brew pressure gauge
10 Water wand
11 Water tilt valve for drawing hot water
12 Pull buttons
13 Top with water tank lid; water tank below
with water lter adapter for receiving a
water lter cartridge
11
9
1
2
3
4
5
6
7
13
12
10
8
