Promise Technology FastTrak TX4650 User Manual

FastTrak TX4650, TX2650 User Manual
82

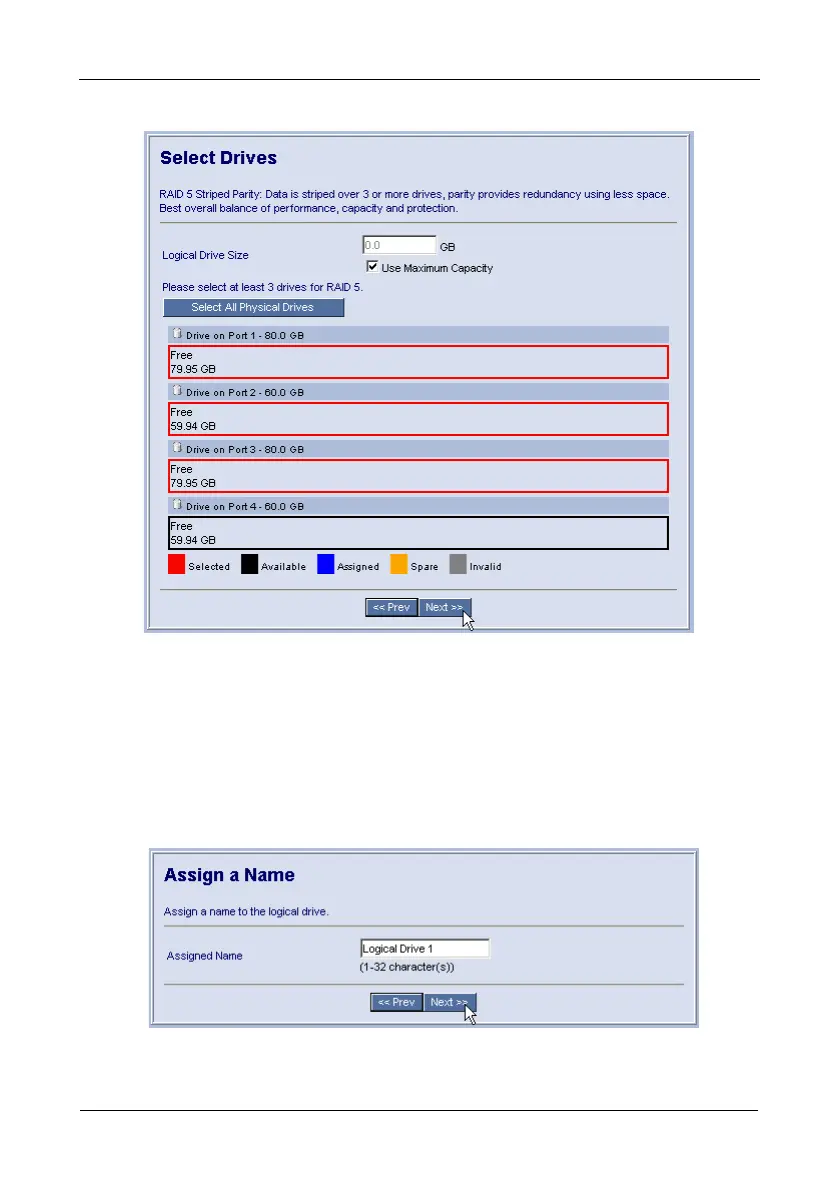

6. If you want to create a logical drive with unused capacity, enter the assigned
(used) capacity in the Logical Drive Size field.
To use the maximum capacity, check the Use Maximum Capacity box.
7. Click the physical drives to select them.
Available drives have a black frame. Selected drives have a red frame.
8. Click the Next button.
The Assign a Name screen appears.
9. Enter a name for the logical drive in the field provided and click the Next
button.

Promise Technology FastTrak TX4650 Specifications

General

Brand	Promise Technology
Model	FastTrak TX4650
Category	Computer Hardware
Language	English
