Trend
Trend in the ‘Multimode’
To start a trend, first open the file in which the measurements that
were already carried out are stored:
• Click on 'File manager' in the start screen.
• Click on the file that was saved as a trend measurement.
• To start the measurement, either press the joystick or press the
MENU key and click on 'Measure'.
• After the measurement press the MENU button and click on 'Save'.
• In the following prompt, click on 'Append' to add the current result
to the saved data record (see below).
To create a new measurement file, select 'New'. This is a simple
method of adopting the settings of an existing file for a new
measurement.
To overwrite the data of the saved file, select 'Overwrite'.
Measurement data that cannot be displayed as a trend
For measurements such as orbit, impact test, and 1+1 measurement,
the results are added to the data set but a trend display is not
possible. The individual results can be called up as follows:
• Open the 'File manager'.
• Click on the file with the measurement data.
• Press on the MENU key. Click on ‘Select result’.
• Select the desired result in the list (see below).

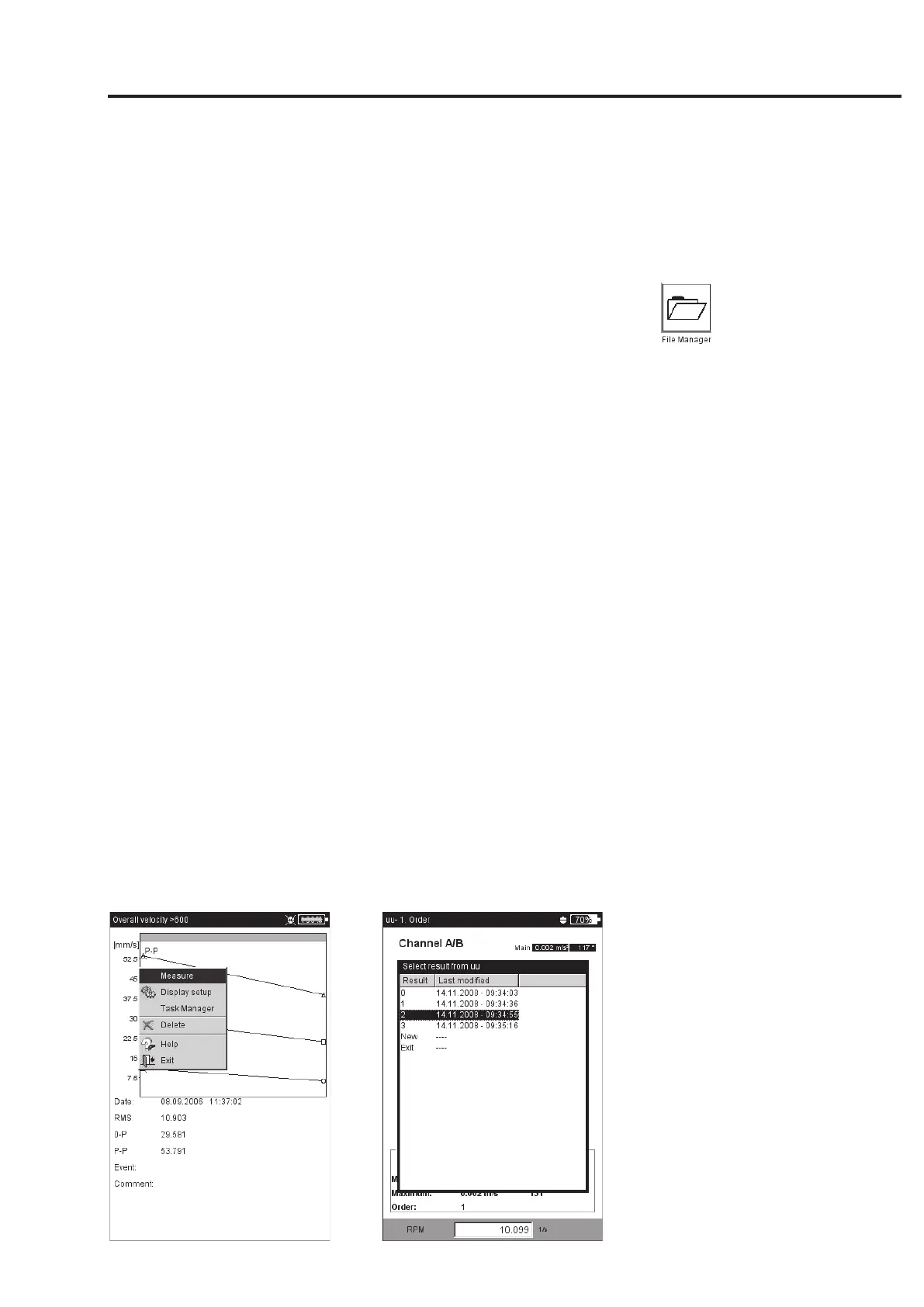

Left:
Starting a trend
Right:
Individual results are listed, if a
trend display is not possible.
