Pulsar ULTRA 5 User Manual
4
of 1
of 1 rating
258 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
Page

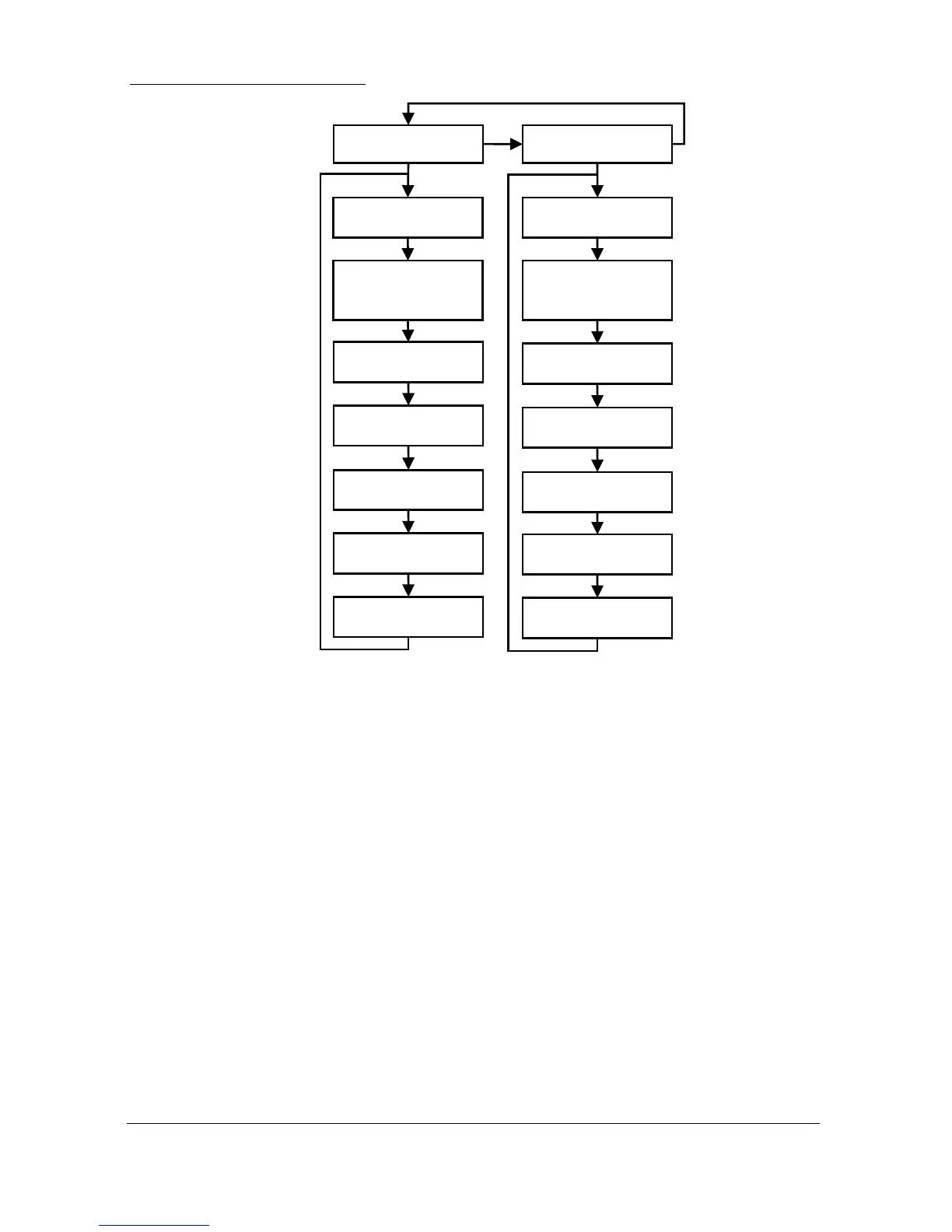

96
E
c
h
o
P
r
o
c
e
s
s
i
n
g
M
e
n
u
Xdr. 1 Status
P900
Xdr. 1 Status
P901
Echo
Confidence 1
P902
Echo Strength
1
P903
A
v
erage Noise 1
P904
Peak Noise
1
P905
Sensitivity
1
P906
Side Clearance
1
Xdr. 1 Status
P910
Xdr. 2 Status
P911
Echo
Confidence 2
P912
Echo Strength
2
P913
A
v
erage Noise 2
P914
Peak Noise
2
P915
Sensitivity
2
P916
Side Clearance 2
103
105
Table of Contents
Default Chapter
5
Table of Contents
5
Chapter 1 Start here
9
About this Manual
9
About the Ultra 5
10
Functional Description
11
How to Use this Manual
12
Product Specification
13
EU Declaration of Conformity
15
Wall Mount
15
Fascia Mount
16
Rack and Panel
17
Chapter 2 Installation
19
Power Supply Requirements
19
Location
19
Dimensions
20
Wall Mount
20
Fascia Mount
22
Rack Ad Panel
24
Terminal Connection Details
26
Wall Mount
26
Fascia Mount
26
Rack and Panel
27
Voltage Selector and Fuse Location
31
Wall Mount
31
Fascia Mount
31
Rack and Panel Mount
32
Preparation for Operation
34
Maintenance
34
Chapter 3 How to Use Your Ultra 5
36
Operating the Controls
36
Display
36
Run Mode
37
Program Mode
38
How to Access Program Mode
38
Wall and Fascia Mount
38
Rack and Panel
38
Test Mode
44
Using the RS232 Serial Interface
45
Parameter Defaults
47
Factory Defaults
47
Chapter 4 Ultra Wizard
48
Ultra Wizard Menu
48
Lev/Vol
49
Level Star 5
49
Pump/Diff
50
Advanced 5
50
Flow
50
Flow 5
51
Chapter 5 Level / Volume
52
Quick Setup Menu
54
Example 1 Level Monitoring with Alarms
59
Example 2 Level Monitoring and Control (up or Down)
61
Example 3 Volume Application
63
Menu System and Parameter Guide
66
Top Level Menu
66
Application Menu
67
Relays Menu
68
Data Logs Menu
69
Volume Menu
70
Display Menu
71
Ma Output Menu
72
Compensation Menu
72
Stability Menu
73
Echo Processing Menu
74
System Menu
75
Device Comm Menu
76
Test Menu
77
Chapter 6 Pump
78
Quick Setup Menu
80
Example 1 Level Monitoring with Alarms
86
Example 2 Sump Control (Pump Down)
88
Example 3 Reservoir Control (Pump Up)
90
Example 4 Differential Control
92
Menu System and Parameter Guide
94
Top Level Menu
94
Application Menu
95
Relays Menu
96
As Required
96
Pump "Advanced" Menu
97
Data Logs Menu
98
Pumped Volume Menu
99
As Required Vol. Dimension
99
Level Bkpts. 2 to 31
99
Calculated Volume
99
P606
99
Efficiency Menu
100
Display Menu
101
Ma Output Menu
102
Compensation Menu
102
Stability Menu
103
Echo Processing Menu
104
System Menu
105
Device Comm Menu
106
Test Menu
107
Chapter 7 Flow
108
Quick Setup Menu
111
Volume Units
112
Exponential Devices
115
Point of Measurement
116
Calculations
118
Example 1 'V' Notch Weir
120
BS3680 Flumes
122
Point of Measurement
122
Calculations
123
Example 2 BS3680 U-Throated Flume
125
BS3680 Thin Plate Weirs
127
Point of Measurement
127
Calculations
127
Example 3 BS3680 Rectangular Weir
129
BS3680 Rectangular Broad Crested Weir
131
Point of Measurement
131
Calculations
131
Velocity Area
133
Point of Measurement
133
Calculations
134
Special Devices
137
Point of Measurement
137
Calculations
138
Universal Calculations
139
Point of Measurement
139
Calculations
139
Menu System and Parameter Guide
140
Top Level Menu
140
Application Menu
141
Relays Menu
142
Data Logs Menu
143
Ocm
144
Display Menu
145
Ma Output Menu
145
Compensation Menu
146
Stability Menu
146
Echo Processing Menu
147
System Menu
148
Device Comm Menu
149
Test Menu
150
Chapter 8 Parameter Listing and Descriptions
152
Application Parameters
152
Operation
152
Dimensions
154
Ma Input
156
Relay Parameters
158
Alarms
160
General Control
164
Pumps
165
Control
170
Miscellaneous
177
Pump by Time
179
Common Parameters
182
Pump "Advanced" Parameters
183
Pump Run on
183
Starting
183
Stopping
184
Pump Exercising
184
Wall Cling
185
Storm
185
Data Log Parameters
186
Totaliser Audits
186
Temperature
186
Pump Logs
188
Pumped Volume
189
Set up
189
Volume
190
Conversion
190
Breakpoints
193
Tables
195
Pump Efficiency
195
Set up
195
OCM Parameters
198
PMD Setup
198
Dimensions
202
Calculations
205
Velocity
206
Breakpoints
207
Tables
207
Average Flow
208
Display Parameters
208
Options
208
Failsafe
209
Auxiliary
210
Totaliser
212
Bargraph
214
Ma Output Parameters
215
Range
215
Operation
215
Setpoint
216
Limits
216
Trim
217
Failsafe
217
Allocation
218
Compensation Parameters
218
Offset
218
Temperature
219
Velocity
220
Stability Parameters
221
Damping
221
Indicator
221
Rate
221
Filters
222
Echo Processing Parameters
223
Transducer 1 Status
223
Transducer 2 Status
224
System Parameters
225
Passcode
225
Backup
225
System Information
225
Date & Time
226
LED Colour
227
Watchdog
228
Daylight Saving Time
228
Service Alarm
232
Device Comm
233
RS232 Set up
233
RS 485 Set up
233
Remote Alarm
233
Test Parameters
236
Simulation
236
Hardware
237
Chapter 9 Troubleshooting
239
Parameter Record
241
Other manuals for Pulsar ULTRA 5
Service Manual
62 pages
Quick Start Manual
2 pages
