Page 18
Terminal Connection Details
Wall Mount

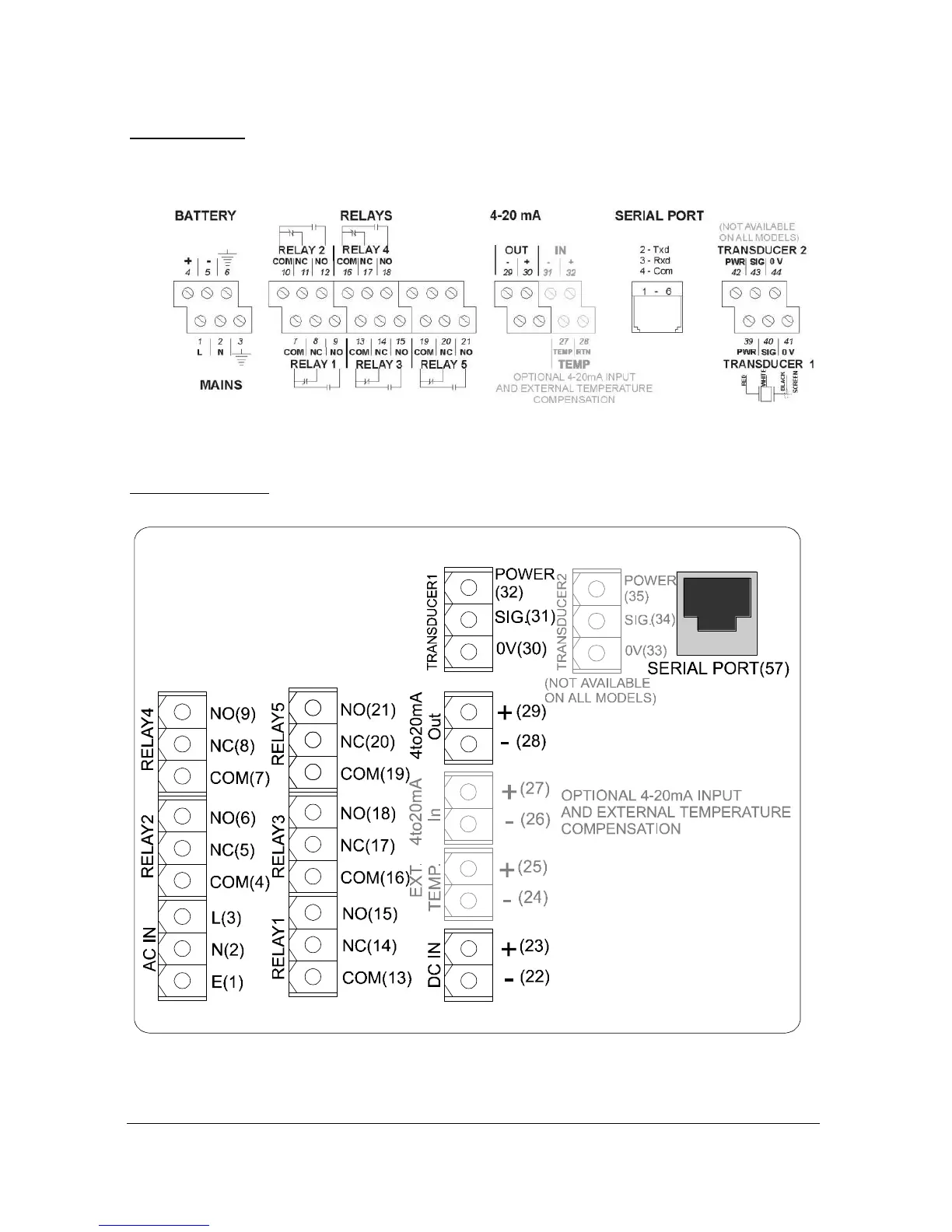

The terminal strip is as detailed below. There is also a wiring diagram inside
the terminals access cover.
Fascia Mount
